DRIVE MODULE AS 4/R-2400
| Productgroup ID | 2 |
| Workpiece pallet total weight [mG] | 2400kg |
| Delivery unit | 1 |
| ESD | yes |
| Weight | 0kg |
| Scope of delivery | Includes fastening elements for mounting on a ST 4 conveyor section element, as well as for mounting on an adjacent return unit. |
| Preferred values | 443,643,843,1043,1243 |
- The AS 4/R drive module drives the conveyor medium of a conveyor section element ST 4/R
- Drive module for section loads up to FG = 2400 kg per conveyor unit
- Motor flange-mounted centrally or on the left/right side.
- Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
- Automatic chain tensioner for applications without reversible operation (T = S). The automatic chain tensioner can be fixed for applications with reversible operation.
- Drive modules for section lengths lS < 4000 mm or applications with reversible operation with manual chain tensioners (T = F)
- Drive module for section loads up to FG = 2400 kg per conveyor unit - Drive module for section loads up to FG = 2400 kg per conveyor unit
- Drive modules for section lengths lS < 4000 mm or applications with reversible operation with manual chain tensioners (T = F) - Drive modules for section lengths lS < 4000 mm or applications with reversible operation with manual chain tensioners (T = F)

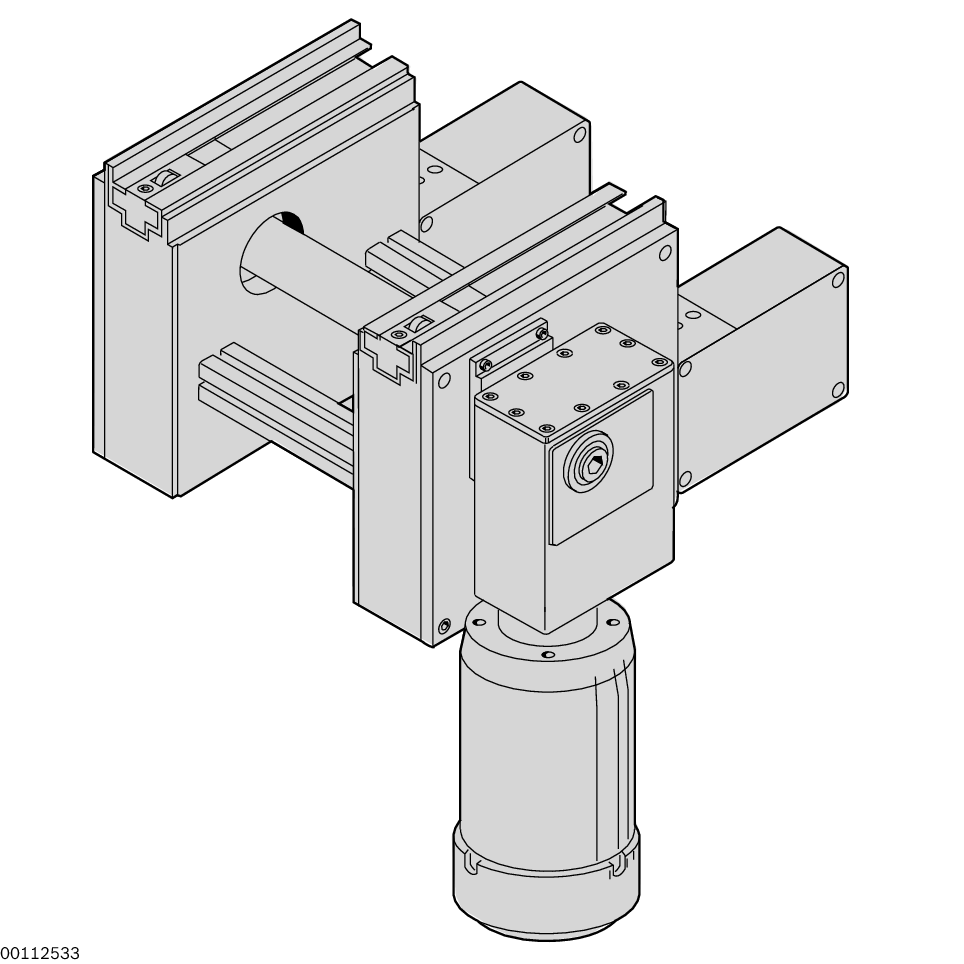

AS 4/R-2400 drive module
Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K), The AS 4/R drive module drives the conveyor medium of a conveyor section element ST 4/R, Motor flange mounted centrally or on the left/right side., Automatic chain tensioner fo
Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K), The AS 4/R drive module drives the conveyor medium of a conveyor section element ST 4/R, Motor flange mounted centrally or on the left/right side., Automatic chain tensioner fo
