BELT SECTION BS 2/C-250
| Productgroup ID | 2 |
| Section load in accumulation operation | 250kg |
| Length min [L min] | 6000mm |
| Dry room | <1 |
| Length max [l max] | 300mm |
| ESD | yes |
| Operating temperature [T] max | +40 °C |
| Weight | 0kg |
| Notice | Chain suitable for use in an EPA (KA = A) |
| Delivery information | Fully assembled |
| Recommended accessories | Connection Kits,Section supports SZ 2/...,LU 2 Automatic Lubrication Unit |
| Material information | Section profile: Aluminum, natural; anodized,Guide profile: Polyamide,Glide profile: Polyamide |
| Preferred values | 160,240,320,400,480,640,800,1040,1200 |
- Functional operation conveyor complete with drive
- Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm
- Transverse conveying between parallel conveyor sections in conjunction with lift transverse units
- Conveyor medium: plastic flat top chain (with KA = A suitable for use in an EPA)
- Motor mounting right or left
- Motor connection: optionally with cable/plug or terminal box motor connection
- Special models on request
- Reversible operation not permitted
- Use with medium accumulation loads
- We strongly advise using the LU 2 automatic lubrication unit
Special models on request, Motor connection: optionally with cable/plug or terminal box motor connection, Motor mounting right or left, Conveyor medium: plastic flat top chain (with KA = A suitable for use in an EPA), Functional operation conveyor complet
Condition of Delivery
| Fully assembled |

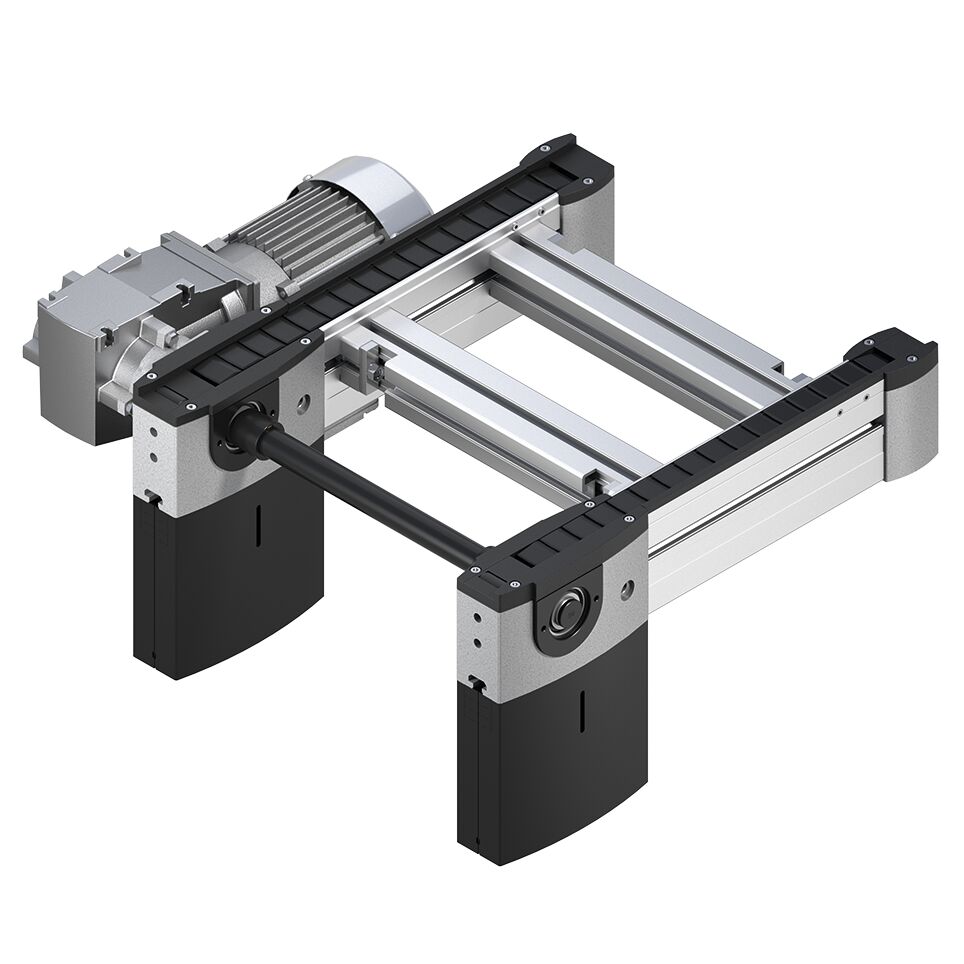

Belt Section BS 2/C-250
The belt section is a ready-for-operation conveyor section with its own drive for the transportation of workpiece pallets in the longitudinal direction, or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
Energy efficiency – Rexroth 4EE
|
No. |
3842999985 | ||
|
Max. section load in accumulation operation |
kg |
250 | |
|
ESD 1) |
yes | ||
|
Max. operating temperature |
T |
°C |
+40 |
|
Material entry |
Section profile: Aluminum, natural; anodized Guide profile: Polyamide Slide profile: Polyamide |
||
|
Length |
l |
mm |
300 ... 6000 |
| 1) | Chain is suitable for use in an EPA (KA = A) |
Motor connection
Transport and nominal speed vN
Motor data
