Track width in direction of transport [b max]	1200mm
Track width in direction of transport [b min]	160mm
Productgroup ID	2
Section load in accumulation operation	100kg
Length min [L min]	6000mm
Dry room	<1
Length max [l max]	300mm
ESD	yes
Operating temperature [T] max	+40 °C
Weight	0kg
Notice	Individual width variants can be ordered,Chain suitable for use in an EPA (KA = A)
Delivery information	Fully assembled
Recommended accessories	Connection Kits,Section supports SZ 2/...,LU 2 Automatic Lubrication Unit
Material information	Section profile: Aluminum, natural; anodized,Guide profile: Polyamide,Glide profile: Polyamide
Preferred values	160,240,320,400,480,640,800,1040,1200

• Functional operation conveyor complete with drive
• Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm
• Transverse conveying between parallel conveyor sections
• Conveyor medium: plastic flat top chain (with KA = A suitable for use in an EPA)
• Motor mounting on right, left or centrally (centrally on track widths of 240 mm and above)
• Motor connection: optionally with cable/plug or terminal box motor connection
• Special models on request
• Reversible operation not permitted
• Use with medium accumulation loads
• We strongly advise using the LU 2 automatic lubrication unit

Belt Section BS 2/C-100

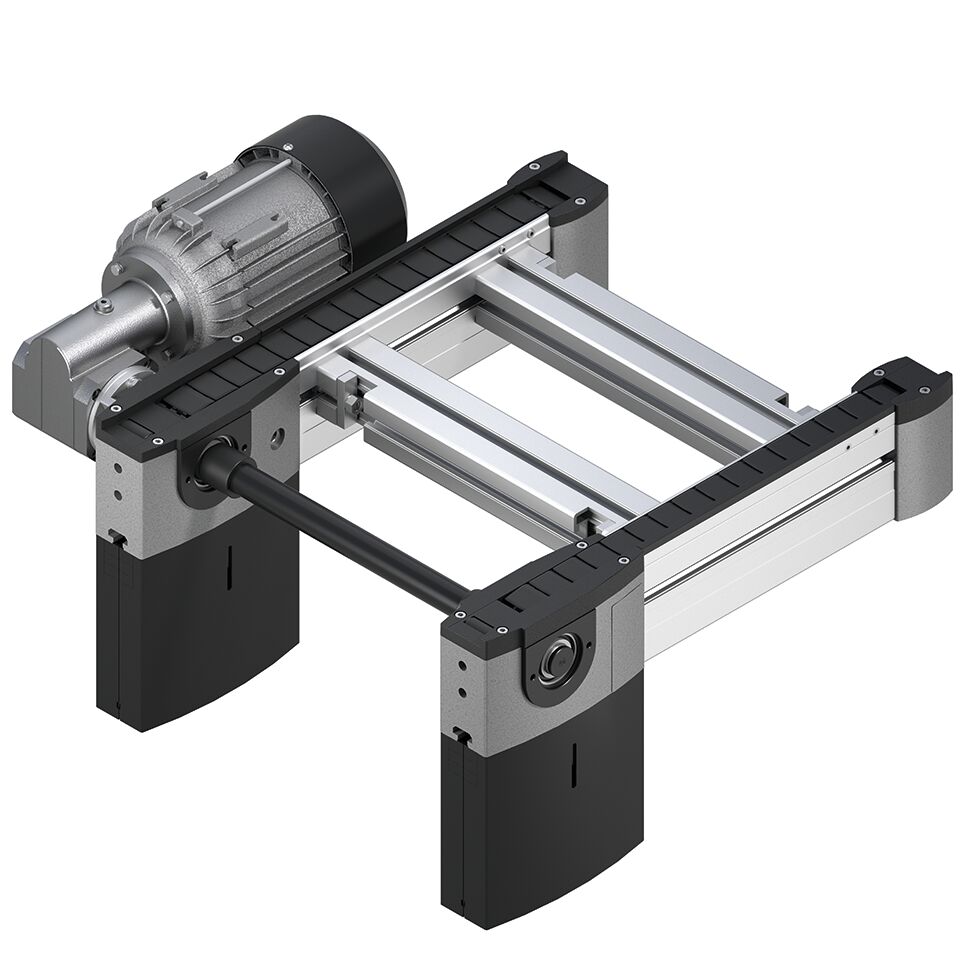

Special models on request, Motor connection: optionally with cable/plug or terminal box motor connection, Motor mounting on right, left or centrally (centrally on track widths of 240 mm and above), Conveyor medium: plastic flat top chain (with KA = A suit

• 3D CAD
• Data Sheet

Condition of Delivery

Fully assembled

Belt Section BS 2/C-100

The belt section is a ready-for-operation conveyor section with its own drive for the transportation of workpiece pallets in the longitudinal direction, or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.

Energy efficiency – Rexroth 4EE

No.			3842999917
Max. section load in accumulation operation		kg	100
ESD 1)			yes
Max. operating temperature	T	°C	+40
Material entry			Section profile: Aluminum, natural; anodized Guide profile: Polyamide Slide profile: Polyamide
Length	l	mm	300 ... 6000

1)	Chain is suitable for use in an EPA (KA = A)

Motor connection

Transport and nominal speed vN

Motor data
