Attributes

Track width in direction of transport [b max]	2000mm
Track width in direction of transport [b min]	160mm
Productgroup ID	2
Length min [L min]	6000mm
Workpiece pallet total weight [mG]	700kg
Delivery unit	1
Length max [l max]	400mm
ESD	yes
Weight	0kg
Delivery information	Fully assembled
Recommended accessories	1x acceleration element for accelerated transport of a workpiece pallet from a processing station.,Section supports SZ 2/...,1x connection kit for connecting the end faces of the BS 4/R with drive module AS 4/R or return unit UM 4/R.,1x connection kit for the installation of the BS 4/R as a transverse section between ST 4 sections.,1x connection kit for the installation of the BS 4/R as a transverse section between BS 4/R belt sections.,Belt sections l > 1500 mm need to be supported with additional section supports at equal distances of max. 1500 mm.
Preferred values	240,320,400,443,480,640,643,800,843,1040,1043,1243

• Longitudinal conveying of the workpiece pallet on segmented conveyor sections
• Transverse conveying of the workpiece pallet between parallel conveyor sections (in conjunction with two lift transverse units HQ 4)
• Ready-for-operation conveyor section
• Section loads up to 700 kg in accumulation operation
• Conveyor medium: Accumulation roller chain with steel support wheels
• Automatic chain tensioning system
• Steel chain guides
• Suitable for reversible operation (RV = 1) to l = 2000 mm
• Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
• Belt section BS 4 / R-700 optionally with steel chain (KT = 2), or steel chain with small parts protection (KT = 4)

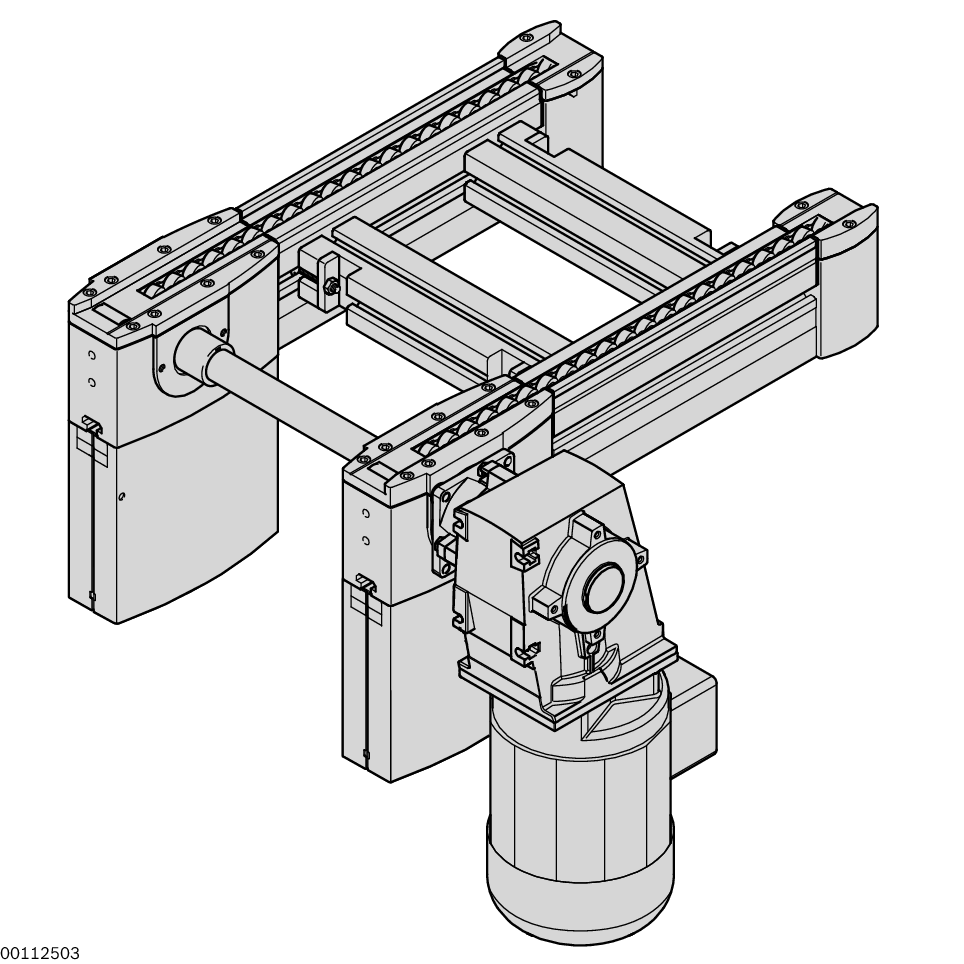

BS 4/R-700 belt section
