Attributes

Productgroup ID	2
Weight	0kg
Scope of delivery	Section incl. accumulation roller chain, steel with parts protection,Incl. fastening material
Delivery information	Fully assembled
Recommended accessories	Note on QV cross connectors: With conveyor section distances a > 90 mm, we recommend stabilizing the RS 2/H roller section using QV cross connectors
Material information	Section profile: Aluminum, natural; anodized,Accumulation roller chain: Steel, with Kst parts protection
Preferred values	480,640,800,1040,1200

• Mounted roller section for transverse conveying of workpiece pallets between parallel conveyor sections at a distance of a = 90 to 690 mm
• Use in conjunction with two HQ 2 lift transverse units
• Without own drive
• Conveyor medium: Accumulation roller chain with steel accumulation rollers and small parts protection
• Reversible operation possible
• Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm
• Can be combined with WT 2/E, WT 2, WT 2/F, WT 2/H and WT 2/F-H

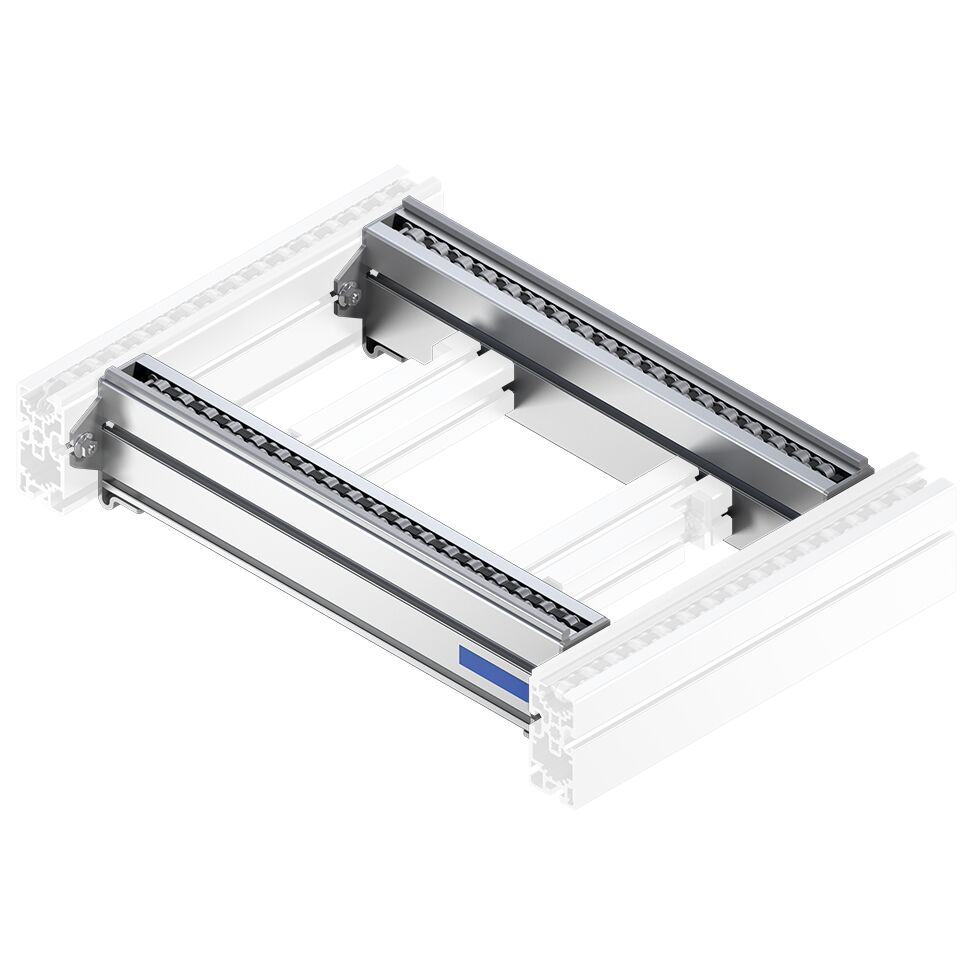

RS 2/H Roller Section
Reversible operation possible, Can be combined with WT 2/E, WT 2, WT 2/F, WT 2/H and WT 2/F H, Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/… H section with a profile width of 50 mm, Use in conjunction with two HQ 2

• 3D CAD
• Data Sheet

RS 2/H Roller Section

Roller sections used in conjunction with two lift transverse units permit workpiece pallets to be conveyed between parallel conveyor sections.

Installation between two ST 2/…-H conveyor units or BS 2/…-H belt sections with HQ 2/U-H or HQ 2/C-H lift transverse unit. Alternatively, use as an inclined conveyor section.

No.			3842998744
Material entry			Section profile: Aluminum, natural; anodized Accumulation roller chain: Steel; with plastic small parts protection
