BELT SECTION BS 2/R-V- 1200
| Track width in direction of transport [b max] | 1200mm |
| Track width in direction of transport [b min] | 400mm |
| Productgroup ID | 2 |
| Section load in accumulation operation | 1200kg |
| Length min [L min] | 6000mm |
| Length max [l max] | 650mm |
| ESD | yes |
| Material | Steel, corrosion-resistant |
| Weight | 0kg |
| Delivery information | Fully assembled |
| Recommended accessories | Connection Kits,Section supports SZ 2/...,LU 2 Automatic Lubrication Unit |
| Material information | Glide profile: Steel, corrosion-resistant,Small parts protection: Steel |
- Functional operation conveyor complete with drive for high workpiece pallet speeds
- Sturdy design for especially heavy-duty systems
- Conveyor medium: Accumulation roller chain Vplus (suitable for use in an EPA)
- Reversible operation possible for l ≤ 2000 mm and accumulation roller chains without small parts protection
- Motor mounting right, left or central
- Motor connection: optionally with cable/plug or terminal box motor connection
- Special models on request
- Conveyor medium: Accumulation roller chain Vplus (suitable for use in an EPA) - Conveyor medium: Accumulation roller chain Vplus (suitable for use in an EPA)

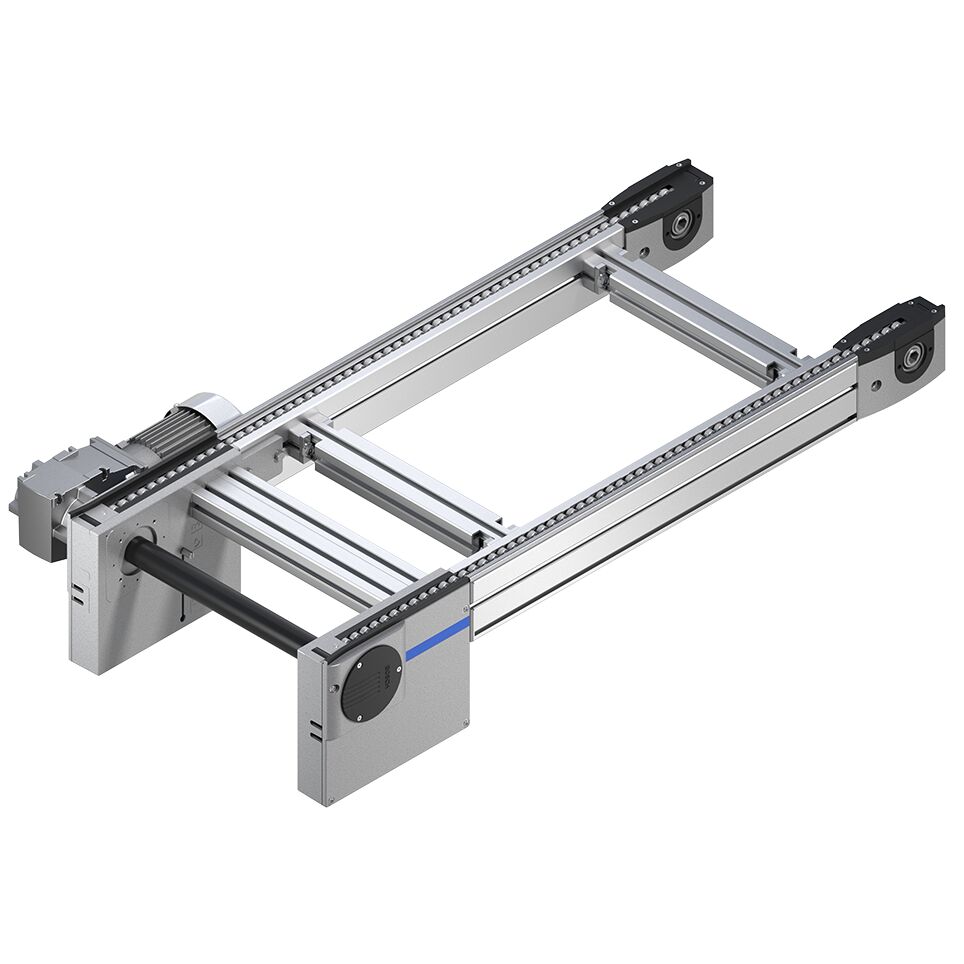

BS 2/R-V-1200 Belt Section
Special models on request, Motor mounting right, left or central, Motor connection: optionally with cable/plug or terminal box motor connection, Sturdy design for especially heavy duty systems, Reversible operation possible for l ≤ 2000 mm and accumulatio
Special models on request, Motor mounting right, left or central, Motor connection: optionally with cable/plug or terminal box motor connection, Sturdy design for especially heavy duty systems, Reversible operation possible for l ≤ 2000 mm and accumulatio
Condition of Delivery
| Fully assembled |
BS 2/R-V-1200 Belt Section
The belt section is a ready-for-operation conveyor section with its own drive for the transportation of workpiece pallets in the longitudinal direction, or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
Note: On the accumulation roller chain Vplus the workpiece pallet attains a speed up to a factor of 2.5 higher than that of the chain. This means that you must observe special measures for chain speeds > 9 m/min!
Energy efficiency – Rexroth 4EE
