BELT SECTION BS 2/C-H
| Track width in direction of transport [b max] | 1200mm |
| Track width in direction of transport [b min] | 400mm |
| Productgroup ID | 2 |
| Section load in accumulation operation | 400kg |
| Length min [L min] | 6000mm |
| Dry room | <1 |
| Length max [l max] | 650mm |
| ESD | yes |
| Weight | 0kg |
| Notice | Chain suitable for use in an EPA (KA = A) |
| Delivery information | Fully assembled |
| Recommended accessories | Connection Kits,Section supports SZ 2/...,LU 2 Automatic Lubrication Unit |
| Material information | Section profile: Aluminum, natural; anodized,Lateral guide: Stainless steel,Glide profile: Steel/plastic, corrosion-resistant |
- Functional operation conveyor complete with drive
- Sturdy design for especially heavy-duty systems
- Longitudinal conveying of the workpiece pallet on conveyor sections of 6000 mm
- Transverse conveying between parallel conveyor sections in conjunction with lift transverse units
- Conveyor medium: plastic flat top chain (with KA = A suitable for use in an EPA)
- Motor mounting right, left or central
- Motor connection: optionally with cable/plug or terminal box motor connection
- Special models on request
- Stainless steel workpiece pallet lateral guide
- Reversible operation not permitted
- Profile width: 50 mm
- Use with high accumulation loads
- We strongly advise using the LU 2 automatic lubrication unit

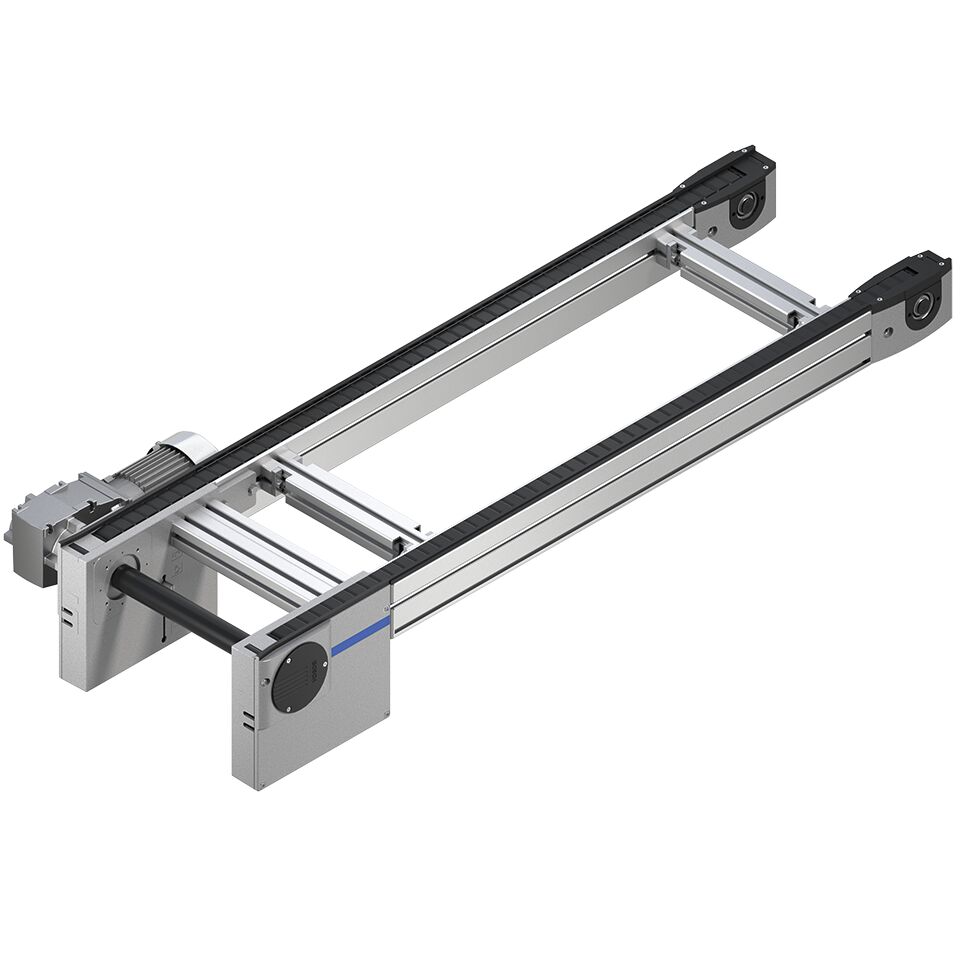

Special models on request, Motor mounting right, left or central, Motor connection: optionally with cable/plug or terminal box motor connection, Conveyor medium: plastic flat top chain (with KA = A suitable for use in an EPA), Functional operation conveyo
Condition of Delivery
| Fully assembled |
Belt Section BS 2/C-H
The belt section is a ready-for-operation conveyor section with its own drive for the transportation of workpiece pallets in the longitudinal direction, or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
Energy efficiency – Rexroth 4EE
|
No. |
3842998239 | ||
|
Max. section load in accumulation operation |
kg |
400 | |
|
ESD 1) |
yes | ||
|
Material entry |
Section profile: Aluminum, natural; anodized Lateral guide: Stainless steel Slide profile: Steel/plastic; corrosion-resistant |
||
|
Length |
l |
mm |
650 ... 6000 |
| 1) | Chain is suitable for use in an EPA (KA = A) |
Motor connection
Transport and nominal speed vN
Motor data
