Attributes

Track width in direction of transport [b max]	1200mm
Track width in direction of transport [b min]	400mm
Productgroup ID	2
Section load in accumulation operation	1200kg
Length min [L min]	6000mm
Length max [l max]	650mm
ESD	yes
Weight	0kg
Notice	RV = 1 possible when l ≤ 2000 mm and section loads < 400 kg; no reversible operation for chains with small parts protection (KT = 3, 4)
Delivery information	Fully assembled
Recommended accessories	Connection Kits,Section supports SZ 2/...,LU 2 Automatic Lubrication Unit
Material information	Section profile: Aluminum, natural; anodized,Glide profile: Polyamide or steel, corrosion-resistant,Glide profile: Polyamide or steel accumulation rollers,Small parts protection: Polyamide

• Ready-for-operation conveyor section
• Sturdy design for especially heavy-duty systems
• Conveyor medium: accumulation roller chain (suitable for use in an EPA)
• Reversible operation possible for l ≤ 2000 mm and accumulation roller chains without small parts protection
• Chain tensioner for reversible operation is mounted on the return unit at RV = 1
• Motor mounting right, left or central
• Motor connection: optionally with cable/plug or terminal box motor connection
• Profile width: 50 mm
• Special models on request

BS 2/R-H Belt Section

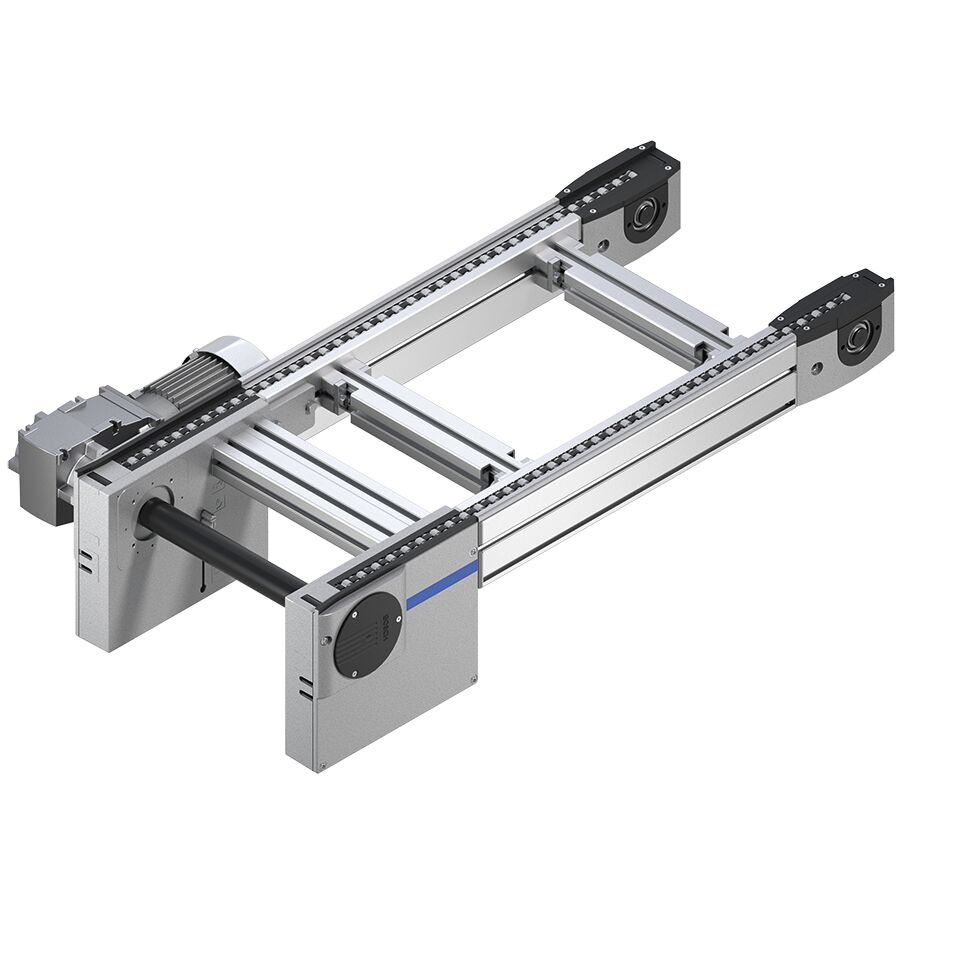

Special models on request, Motor mounting right, left or central, Motor connection: optionally with cable/plug or terminal box motor connection, Sturdy design for especially heavy duty systems, Profile width: 50 mm, Ready for operation conveyor section, C

• 3D CAD
• Data Sheet

LU 2 Automatic Lubrication Unit

LU 2 Automatic Lubrication Unit

Connection Kits

Connection Kits

Leg Sets

Leg Sets

Condition of Delivery

Fully assembled

BS 2/R-H Belt Section

BS 2/R-H belt section dimensions with chain tensioner

The belt section is a ready-for-operation conveyor section with its own drive for the transportation of workpiece pallets in the longitudinal direction, or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.

Energy efficiency – Rexroth 4EE

No.			3842998238
Max. section load in accumulation operation		kg	1200
ESD			yes
Material entry			Section profile: Aluminum, natural; anodized Slide profile: Polyamide or steel; corrosion-resistant Slide profile: Polyamide or steel accumulation rollers Small parts protection: Polyamide
Length	l	mm	650 ... 6000

Motor connection

Transport and nominal speed vN

Motor data
