Attributes

Productgroup ID	2
Repetition accuracy	± 0,1
Permissible vertical process force	3500N
Delivery unit	1
ESD	yes
Weight	0kg
Scope of delivery	Incl. fastening material for mounting the PE 4 or in the ST 4 or BS 4, switch bracket for mounting M 12 sensors for top position sensing.
Delivery information	Fully assembled
Required accessories	VE 4/D‑100 stop gate for loads up to 100 kg or VE 4/D‑250 stop gate for loads up to 250 kg
Length in direction of transport [lT]	443,643,843,1043,1243
Installation location [AO]	ST 4; BS 4
Preferred values	443,643,843,1043,1243

• For positioning a workpiece pallet in a processing station
• Can be used with all WT 4/… workpiece pallets
• Simple assembly in ST 4 (AO = ST 4) conveyor section element or BS 4 (AO = BS 4) belt sections
• Small extension (max. 16 mm above conveying level)
• Positioning by means of the positioning pins of the PE 4 and positioning bushings of the WT 4/... workpiece pallet
• Mounting bores on lift frame as an optional fastening point for a separate machine frame
• Positioning accuracy up to ±0.1 mm when assembled on a separate machine frame
• Permissible vertical process forces: 3500 N incl. WT 4/…

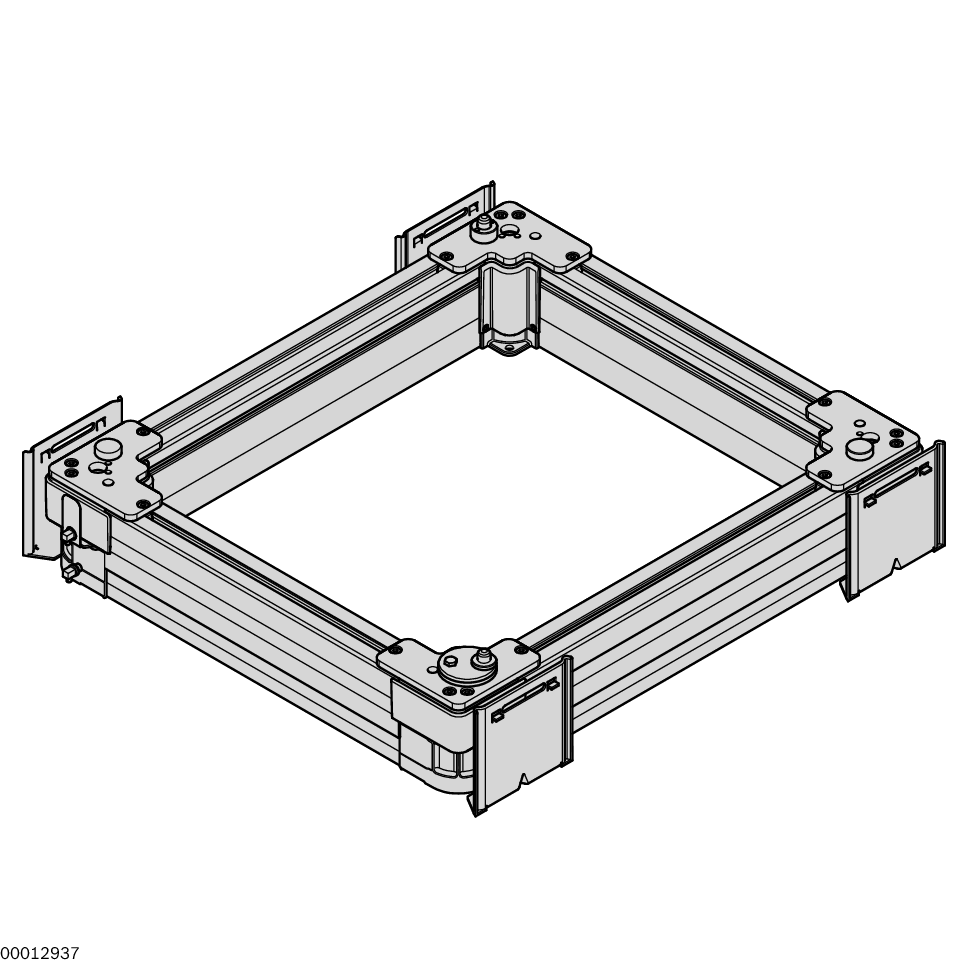

PE 4 positioning unit
Positioning accuracy up to ±0.1 mm when assembled on a separate machine frame, Mounting bores on lift frame as an optional fastening point for a separate machine frame, For positioning a workpiece pallet in a processing station, Can be used with all WT 4/

• 3D CAD
