WORKPIECE PALLET WT4/F
| Productgroup ID | 2 |
| Workpiece pallet total weight [mG] | 250kg |
| Delivery unit | 1 |
| ESD | yes |
| Weight | 0kg |
| Scope of delivery | Corner modules, runner profiles, damping elements, frame profiles, cover caps |
| Delivery information | Mounted (MT = 1) or kit, not mounted (MT = 0) |
| Recommended accessories | Positioning bushing kit,Positioning bushings are required accessories if a PE 4 positioning unit is used. Positioning bushings increase the empty weight of the workpiece pallet by 1.3 kg. |
| Workpiece pallet width [bWT] | 443,643,843,1043,1243 |
| Workpiece pallet length [lWT] | 443,643,843,1043,1243 |
- Pick-up and transportation of workpieces in the TS 4plus transfer system
- Frame constructions for low dead weight, high stability and high load capacity
- Workpiece pallet dimensions lWT x bWT from 443 x 443 mm to 1243 x 1243 mm
- Simple fastening of workpiece supports thanks to 10 mm profile slots in the workpiece pallet frame
- PE runner profiles for quiet operation and low wear
- Integrated stop damper, ensures quiet running onto other workpiece pallets
- Workpiece pallet dimensions lWT x bWT from 443 x 443 mm to 1243 x 1243 mm - Workpiece pallet dimensions lWT x bWT from 443 x 443 mm to 1243 x 1243 mm

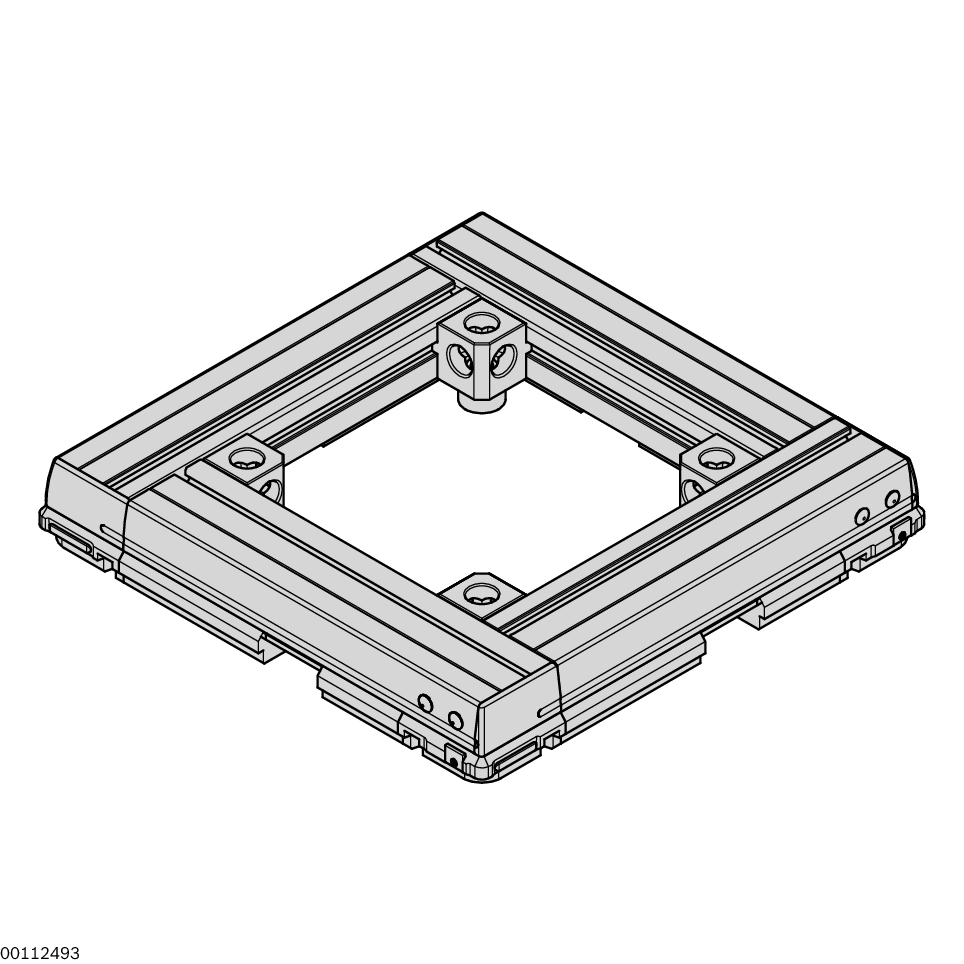

Workpiece pallet WT 4/F
Simple fastening of workpiece supports thanks to 10 mm profile slots in the workpiece pallet frame, Integrated stop damper, ensures quiet running onto other workpiece pallets, Pick up and transportation of workpieces in the TS 4plus transfer system, Workp
Simple fastening of workpiece supports thanks to 10 mm profile slots in the workpiece pallet frame, Integrated stop damper, ensures quiet running onto other workpiece pallets, Pick up and transportation of workpieces in the TS 4plus transfer system, Workp
