Attributes

Length max [L max]	5000mm
Productgroup ID	2
Section load in accumulation operation	30kg
Dry room	<1
ESD	yes
Length min [L min]	320mm
Pneumatic straight connection [Ø]	4mm
required compressed air connection [pmax]	6bar
required compressed air connection [pmin]	4bar
Weight	0kg
Scope of delivery	HQ lift transverse unit, completely assembled,Belt Section BS 1,Protective housing,Mounting kit for the drive of the lift transverse unit,Fastening material for attachment to an ST 1 section
Recommended accessories	Depending on the installation situation, additional accessories may be required for transportation control:,Damper DA 1,Switch Bracket,M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm
Required accessories	Two throttle non-return valves M5 for air intake throttling,Stop rail
Preferred values	80,120,160

• Section load up to 30 kg
• Lift cylinder – D = 25 mm
• Total stroke: 13 mm
• Motor mounting right (MA = R) or left (MA = L), with b = 160 mm also center (MA = M)
• Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
• Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions
• Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
• Special models on request

Electrical Transverse Conveyor EQ 1/TE
Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA, Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K), Special models on request, Section load up to 30 kg, Lift cylinder – D = 25 mm, Total stroke: 13 mm, Pn

• 3D CAD
• Data Sheet

Required accessories

Two throttle non-return valves M5 for air intake throttling

Stop rail

Connection Kit, Stop Rail

Connection Kit, Stop Rail

Assembly instructions

CAD data

Stop Gate VE 1

Stop Gate VE 1

Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped. Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface. Permissible total load of all workpiece pallets in the accumulation: 80 kg (with conveying speed 9 m/min)

Assembly instructions

CAD data

Stop Gate VE 1/V

Stop Gate VE 1/V

Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped. Integrated solenoid valve enables short response times Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface. Permissible total load of all workpiece pallets in the accumulation: 80 kg (with conveying speed 9 m/min)

Assembly instructions

CAD data

Stop Gate, damped VE 1/D

Stop Gate, damped VE 1/D

Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped. Pneumatic damping can be adapted to the workpiece pallet weight Workpiece pallet minimum weight: 0.5 kg Permissible total load of all workpiece pallets in the accumulation: 12 kg (with conveying speed 6 m/min)

Assembly instructions

CAD data

Damper DA 1/A

Damper DA 1/A

Pneumatic damper Degree of damping adjustable Workpiece pallet load 0.5 kg to 6 kg permissible (with conveying speed 9 m/min)

Assembly instructions

CAD data

Damper DA 1/B

Damper DA 1/B

Pneumatic damper Degree of damping adjustable Workpiece pallet load 0.5 kg to 6 kg permissible (with conveying speed 9 m/min)

Assembly instructions

CAD data

Switch Bracket SH 1/U

Switch Bracket SH 1/U

Assembly instructions

CAD data

Switch Bracket SH 1/S

Switch Bracket SH 1/S

Assembly instructions

CAD data

Switch brackets SH 1/M-A and SH 1/M-B

Switch brackets SH 1/M-A and SH 1/M-B

Setup from the half shells and in two versions possible Half shells: Polyamide; black

CAD data

Scope of delivery

HQ lift transverse unit, completely assembled

Belt Section BS 1

Protective housing

Mounting kit for the drive of the lift transverse unit

Fastening material for attachment to an ST 1 section

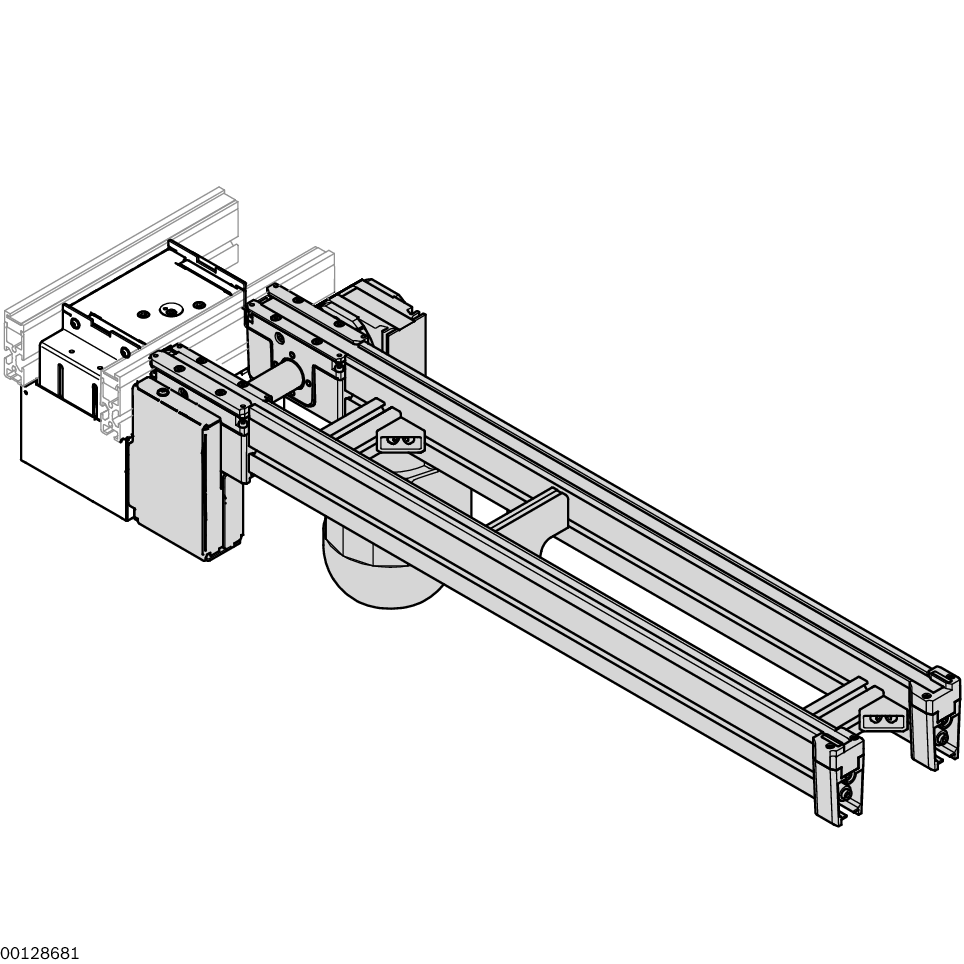

Electrical Transverse Conveyor EQ 1/TE

1)	Lift
2)	Protective housings
3)	Transport direction of longitudinal conveyor section
4)	Transport direction of transverse conveyor section

The electrical transverse conveyor EQ 1/TE is used as a branching off transverse section. This can be used as a dead end or the workpiece pallets may be transferred to a HQ or EQ 1/TR with its own drive at the other end to feed them back into the longitudinal conveyor. The belt section and the lift transverse unit are powered by a shared motor.

It is also suitable for use in ESD applications.

Accumulation operation on the belt section and reversible operation are permitted.



Energy efficiency – Rexroth 4EE

Circuit diagram for unit with pneumatic equipment for two positions PN = 2

1)	Not included in the scope of delivery

Circuit diagram for unit with pneumatic equipment for three positions PN = 3

1)	Not included in the scope of delivery

No.			3842998014
Max. section load in accumulation operation		kg	30
ESD			yes
Cleanroom class			ISO class 7
Dry room	r.F.	%	<1
Reversible operation			permitted
Required compressed air connection	p	bar	4 ... 6 bar
Pneumatic push-in fitting	Ø	mm	4
Length	l	mm	320 … 5,000
