Attributes

Fastening material included	yes
Cover cap	no
Dynamic data transfer	no
Productgroup ID	2
designLINE	no
Swivel-in	no
Mass [m]	0.1kg
ESD	no
Material	POM
Weight	1kg
Scope of delivery	Data carrier, incl. fastening material
Delivery information	Not assembled
Required accessories	AM<i>pro</i> software
Fastening material	2x countersunk screw DIN7991 M5 X 16

• Data carrier (1) for uniquely identifying the workpiece pallet (data integrity)
• Reading head (2) for reading the data at full speed and acceleration
• Assembly kit (3) for mounting the reading head and adjusting the distance between reading head and data carrier
• Infrared data transmission
• Configuration via AMpro software

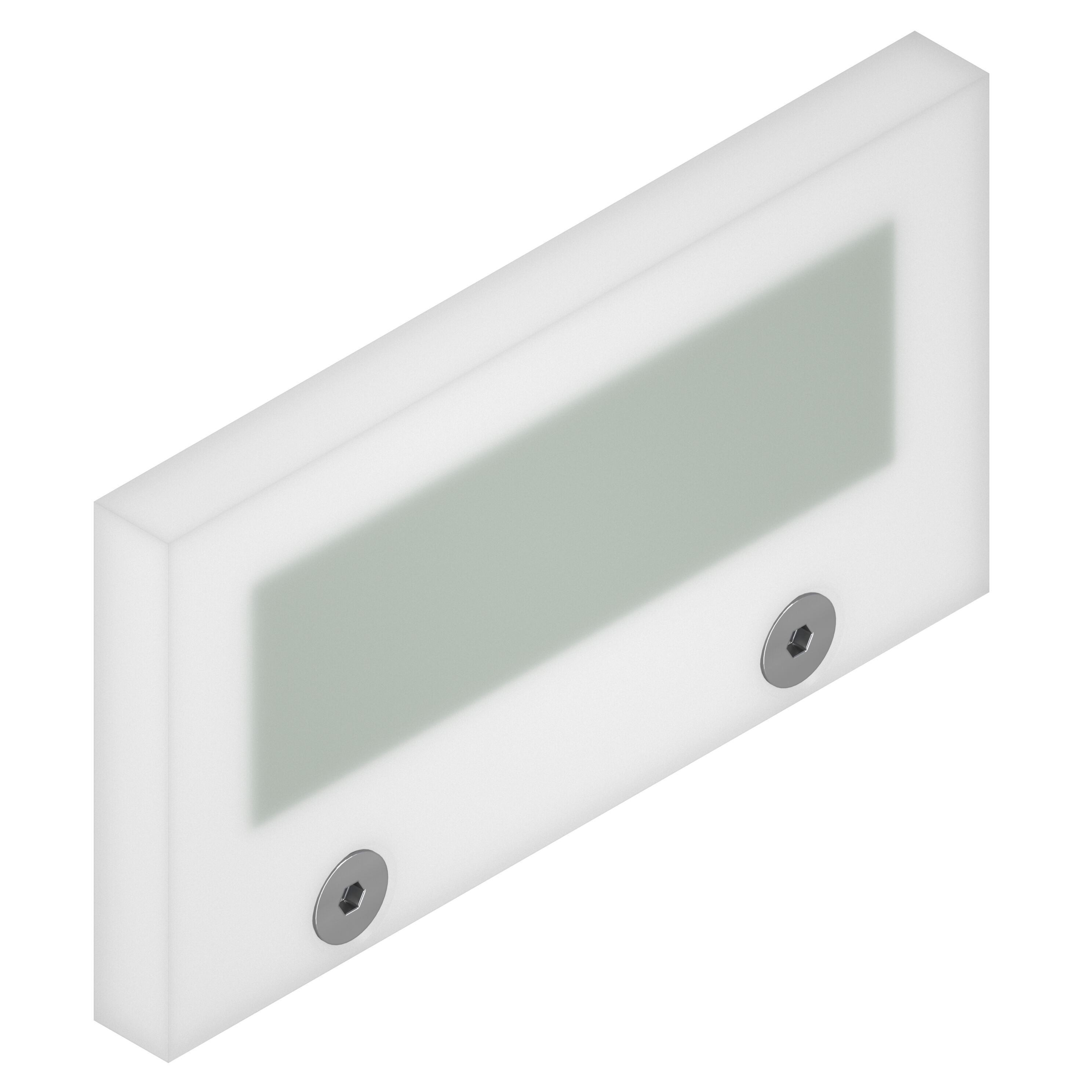

Data tag
Data tag for unique identification of the workpiece pallet (data integrity).
The data tag is attached to the workpiece pallet (WT).
In order to be able to identify the number stored on the data tag, the numbering is physically engraved on the side of the data tag (see illustration in the technical data).

• 3D CAD
• Data Sheet

Required accessories

AMpro software

Condition of Delivery

Not assembled

Scope of delivery

Data carrier, incl. fastening material

Reading head, incl. connecting cable and fastening material

Mounting kit

Data carrier

1)	XXXXX = data carrier identification number

Reading head

Mounting kit

The workpiece pallet is uniquely identified by a data carrier mounted to the workpiece pallet. The reading head is plug-and-play and is attached to the section module, reading the data carrier number as soon as

the workpiece pallet passes through the reading station. The required distance between reading head and data carrier is 1 mm. To be able to identify the number saved on the data carrier, the data carrier's number is physically engraved on its side.

		3842559447	3842559441	3842559440
Mass	kg	0.1	0.3	2.4
Material		POM	POM Nickel-plated brass PVC	Anodized aluminum Steel
Cable length	mm		1,500
Read distance – dynamic	mm		1 1)
Max. relative speed between reading head and data carrier	m/min		150
Laser class			1

1)	Distance between reading head and data carrier
