READ HEAD AM IRID
| Read distance - dynamic | 1mm |
| Fastening material included | yes |
| Cover cap | no |
| Dynamic data transfer | no |
| Productgroup ID | 2 |
| designLINE | no |
| Swivel-in | no |
| Laser class | 1 |
| Mass [m] | 0.3kg |
| ESD | no |
| Length [L] | 1500mm |
| Speed | 150m/min |
| Weight | 1.5kg |
| Notice | The dynamic reading distance is the distance between reading head and data carrier |
| Scope of delivery | Reading head, incl. connecting cable and fastening material |
| Delivery information | Not assembled |
| Recommended accessories | Assembly kit 3842 559 440 |
| Required accessories | AM<i>pro</i> software |
| Material information | POM,PVC,Brass: nickel-plated |
| Fastening material | 2x countersunk screw DIN 7991 M5X16 |
| Conformity | CE,UL |
- Infrared data transmission
- Configuration via AMpro software
- Assembly kit (3) for mounting the reading head and adjusting the distance between reading head and data carrier

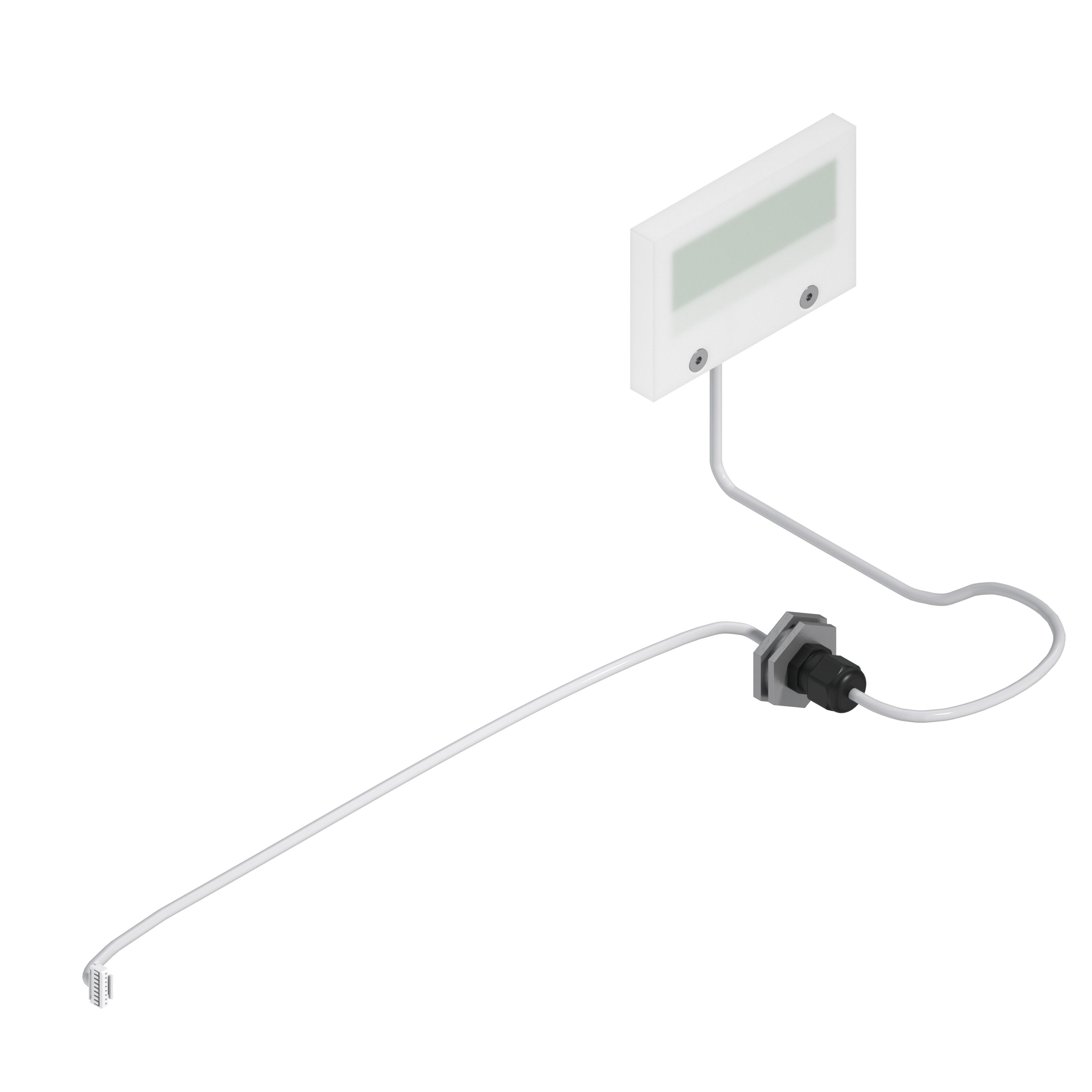

Read head for reading the data at full speed and acceleration
Infrared data transmission, Configuration via AMpro software
Required accessories
| AMpro software |
Condition of Delivery
| Not assembled |
Scope of delivery
| Data carrier, incl. fastening material | Reading head, incl. connecting cable and fastening material | Mounting kit |
Data carrier
| 1) | XXXXX = data carrier identification number |
Reading head
Mounting kit
The workpiece pallet is uniquely identified by a data carrier mounted to the workpiece pallet. The reading head is plug-and-play and is attached to the section module, reading the data carrier number as soon as
the workpiece pallet passes through the reading station. The required distance between reading head and data carrier is 1 mm. To be able to identify the number saved on the data carrier, the data carrier's number is physically engraved on its side.
| 3842559447 | 3842559441 | 3842559440 | ||
|
Mass |
kg |
0.1 | 0.3 | 2.4 |
|
Material |
POM |
POM Nickel-plated brass PVC |
Anodized aluminum Steel |
|
|
Cable length |
mm |
1,500 | ||
|
Read distance – dynamic |
mm |
1 1) | ||
|
Max. relative speed between reading head and data carrier |
m/min |
150 | ||
|
Laser class |
1 |
| 1) | Distance between reading head and data carrier |
