CONNECTING KIT AM SM SET
| Condition on delivery | Not assembled |
| Productgroup ID | 2 |
| Packaging unit | Set |
| Mass [m] | 3.3kg |
| Length [L] | 1000mm |
| Material | Aluminum, anodized |
| Weight | 5kg |

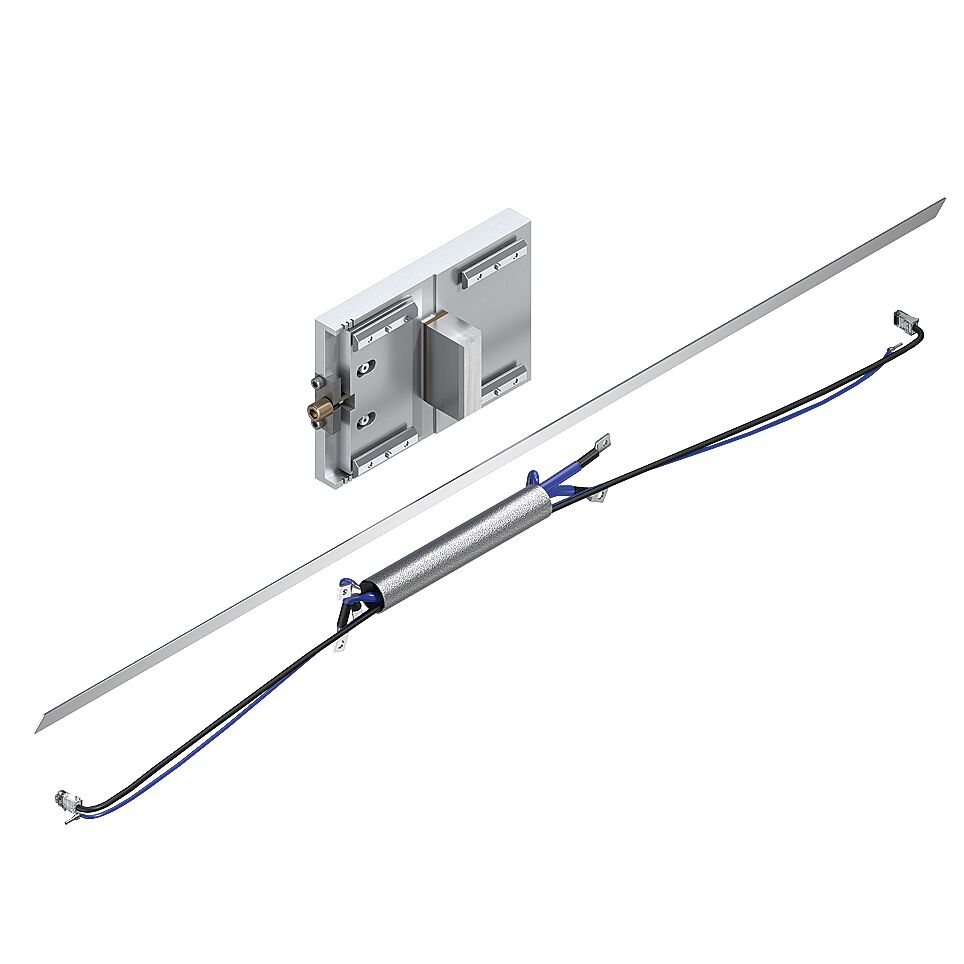

| Scope of delivery | Set consisting of flat guide rail, connecting plate, cable set and fastening material,Flat guide rail L = 1000 mm,Connecting plate (incl. connecting block, adjusting screw, adjusting wedge),Cable set, incl. installation material for section modules, consisting of 3x cable (0 V, 24 V, 28 V DC), grounding cable, network cable and cable guard pipe |
| Delivery information | Not assembled |
- For connecting section modules
- For making fine adjustments and compensating for tolerances between section modules
Section module connecting kit
For connecting section modules, For making fine adjustments and compensating for tolerances between section modules
For connecting section modules, For making fine adjustments and compensating for tolerances between section modules
Condition of Delivery
| Not assembled |
Scope of delivery
| Set consisting of flat guide rail, connecting plate, cable set and fastening material |
| Flat guide rail L = 1000 mm |
| Connecting plate (incl. connecting block, adjusting screw, adjusting wedge) |
| Cable set, incl. installation material for section modules, consisting of 3x cable (0 V, 24 V, 28 V DC), grounding cable, network cable and cable guard pipe |
Connecting kit for making precise lateral adjustments (±20 μm) to section modules. The flat guide rail is mounted to the section modules using small magnets. The chamfered ends of the guide rails allow modules to overlap.
This gives the guide rollers continuous contact with the guide rails, providing low-friction and low-vibration transport between section modules. Sensitive products can be transported without damage.
|
No. |
3842559438 | |
|
Mass |
kg |
3.3 |
|
Material |
Anodized aluminum | |
|
Guide rail length |
1,000 |
