Attributes

Productgroup ID	2
Packaging unit	10
ESD	yes
Material	Diecast zinc
Weight	1.14kg
Scope of delivery	Incl. fastening material
Recommended accessories	For profile installation:<br/>Countersunk screw ISO 10642 M5x16-8.8; T-nut
Fastening material	2x chipboard screw 5x30/24

• For fastening frames onto walls, floors, table tops and strut profiles with 10 mm slot with the help of EcoShape connectors
• Anti-torsion element by centering lug (can be broken off)
• Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material
• D28L base plate
• - Base plate for fastening frames directly onto walls, floors, table tops and strut profiles with 10 mm slot via EcoShape round tubes - No additional connector required - Anti-torsion element by centering lug (can be broken off) - Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material
• EcoShape base plate
• - Base plate for fastening frames onto walls, floors, table tops and strut profiles with 10 mm slot with the help of EcoShape connectors - Anti-torsion element by centering lug (can be broken off) - Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material
• D50 ring
• For designing simple tool holders
• Spring hook
• Snap hook for fastening tools
• Rubber foot D28
• Non-slip design of flow racks and stands
• Stopper D28L, N10
• - To stop material shuttles ergonomically at just one point - All-purpose option for attachment to different round tubes and profile cross-sections - Stopper tension path: 34 mm
• D28L base plate - D28L base plate
• - Base plate for fastening frames directly onto walls, floors, table tops and strut profiles with 10 mm slot via EcoShape round tubes- No additional connector required- Anti-torsion element by centering lug (can be broken off)- Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material - - Base plate for fastening frames directly onto walls, floors, table tops and strut profiles with 10 mm slot via EcoShape round tubes - No additional connector required - Anti-torsion element by centering lug (can be broken off) - Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material
• EcoShape base plate - EcoShape base plate
• - Base plate for fastening frames onto walls, floors, table tops and strut profiles with 10 mm slot with the help of EcoShape connectors- Anti-torsion element by centering lug (can be broken off)- Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material - - Base plate for fastening frames onto walls, floors, table tops and strut profiles with 10 mm slot with the help of EcoShape connectors - Anti-torsion element by centering lug (can be broken off) - Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material
• D50 ring - D50 ring
• - To stop material shuttles ergonomically at just one point- All-purpose option for attachment to different round tubes and profile cross-sections- Stopper tension path: 34 mm - - To stop material shuttles ergonomically at just one point - All-purpose option for attachment to different round tubes and profile cross-sections - Stopper tension path: 34 mm

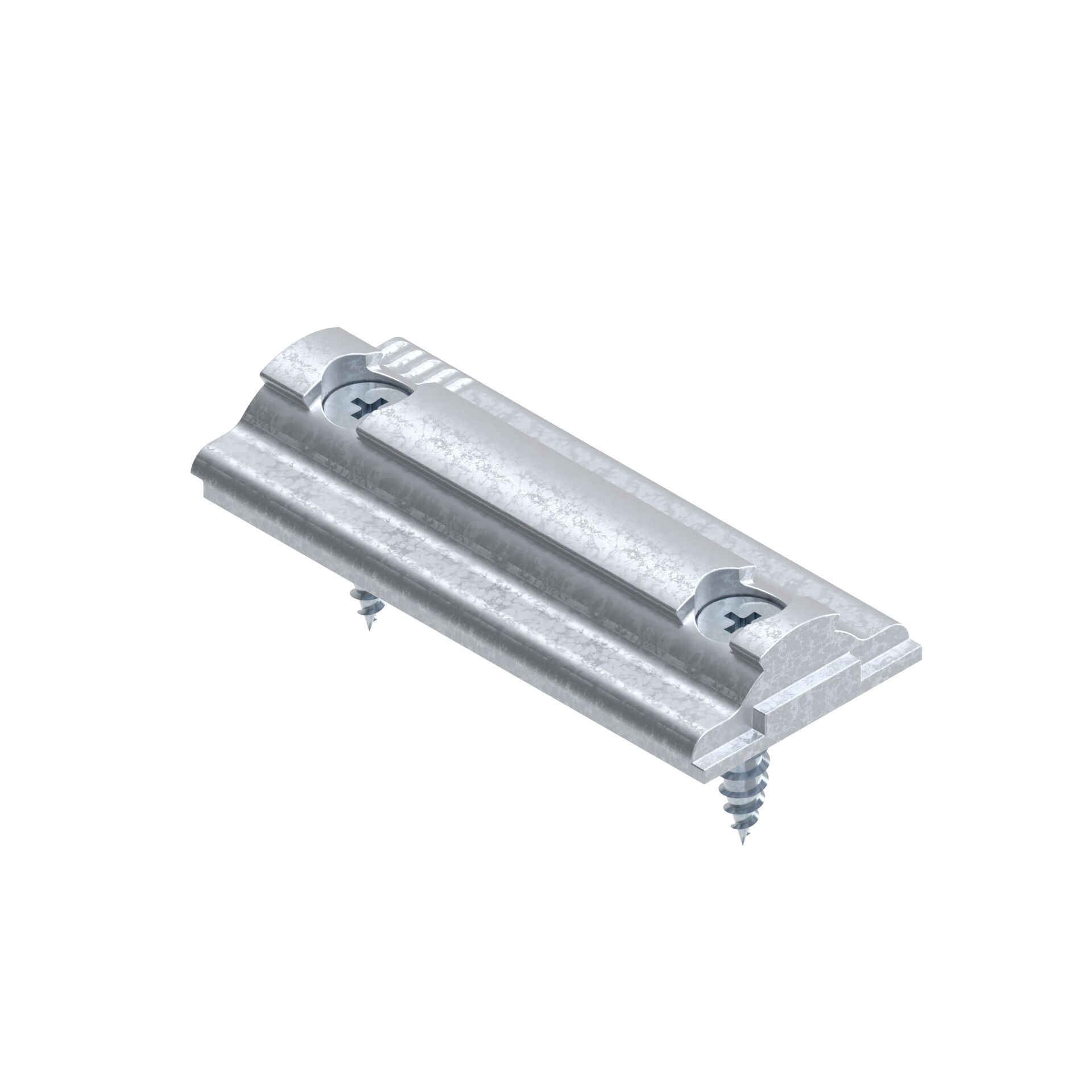

EcoShape base plate
Anti torsion element by centering lug (can be broken off), Reference load during profile installation: 15 Nm admissible in lengthwise and crosswise direction. Load values at installation on other surfaces depend on the respective material, For fastening f
