Attributes

Productgroup ID	2
Weight	0.096kg
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Required accessories	Sensor M12, S<sub>N</sub> = 8 mm, L ≥ 44 mm<br/>can be installed flush or not flush
Material information	Housing: PA 66, black,Switch cover: ABS, transparent

• For fastening a sensor and attaching to the outside groove of a conveyor section
• Suitable for lateral sensing of the workpiece pallet position
• Transparent cover to recognize the operating state of the sensor
• Switch cover to protect sensor and cable
• Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range
• Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm
• Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position
• The integrated cable routing and cable clamping allows secure and protected cable routing

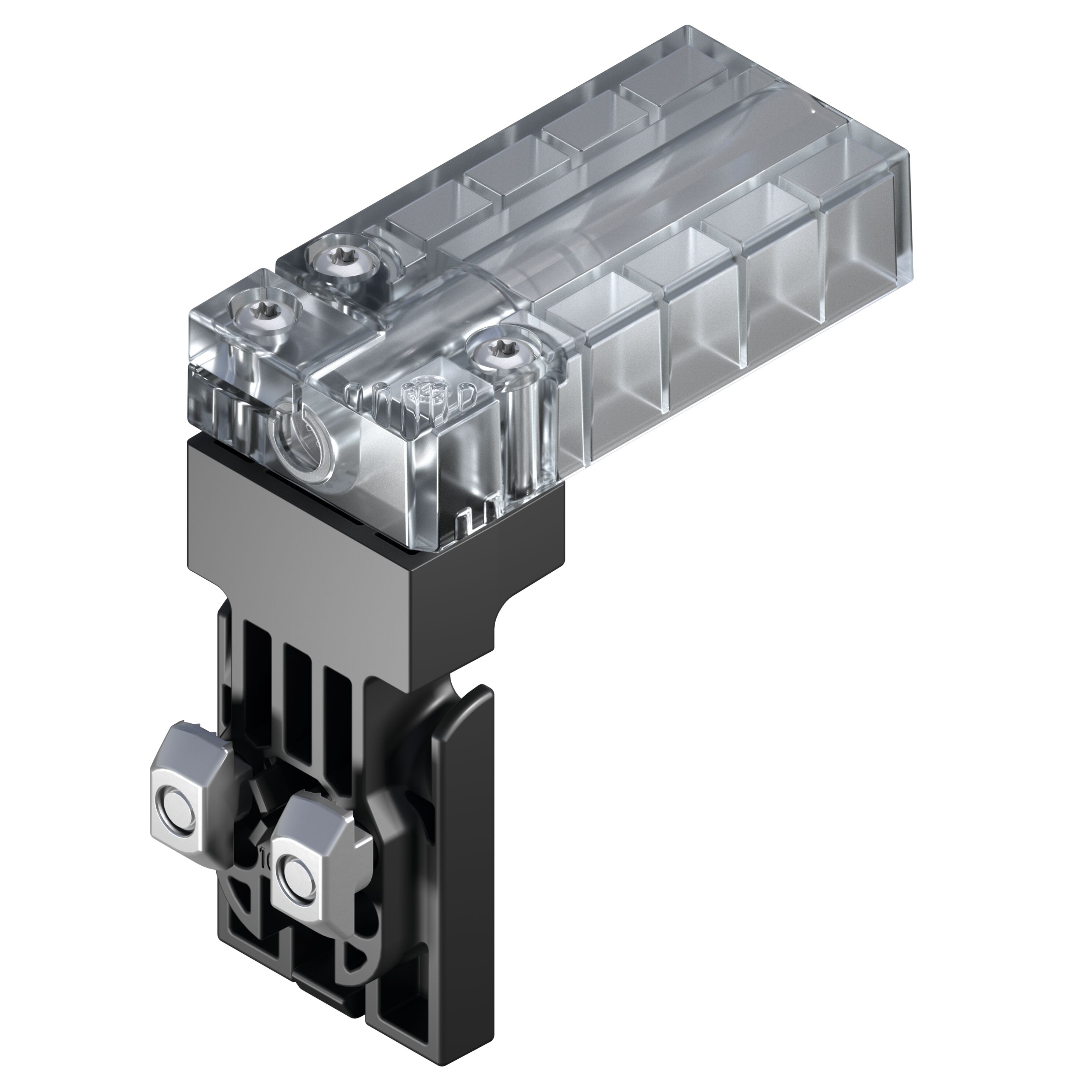

SH 2/ST Switch Bracket
Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range, Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position, Suitable for

• 3D CAD
• Data Sheet

Required accessories

Sensor M12, SN = 8 mm, L ≥ 44 mm can be installed flush or not flush

Condition of Delivery

Not assembled

Scope of delivery

Incl. fastening material

The switch bracket can be used to fix an M12x1 sensor in place for lateral sensing of the workpiece pallet position.

No.			3842557605
Material entry			Housing: PA 66; black Switch cover: ABS; transparent
