T-SLOT STONE 8 1XM5;1XM6 ES
| Groove retention [Fmax] | 2200N |
| Productgroup ID | 2 |
| Thread size | M5; M6 |
| Packaging unit | 100 |
| Dimension h | 4.8mm |
| Length [l] | 24mm |
| Swivel-in | yes |
| Dimension h1 | 1mm |
| Dimension [b] | 12mm |
| Material | Steel, galvanized |
| Weight | 0.082kg |
| Profile slot | 8 |
- Profile finishing: not required
- The swivel-in sliding block with headless setscrews permits shake-proof fixing in all positions
- The swivel-in sliding block with spring can be inserted directly at the assembly point and fixed in position thanks to attached springs

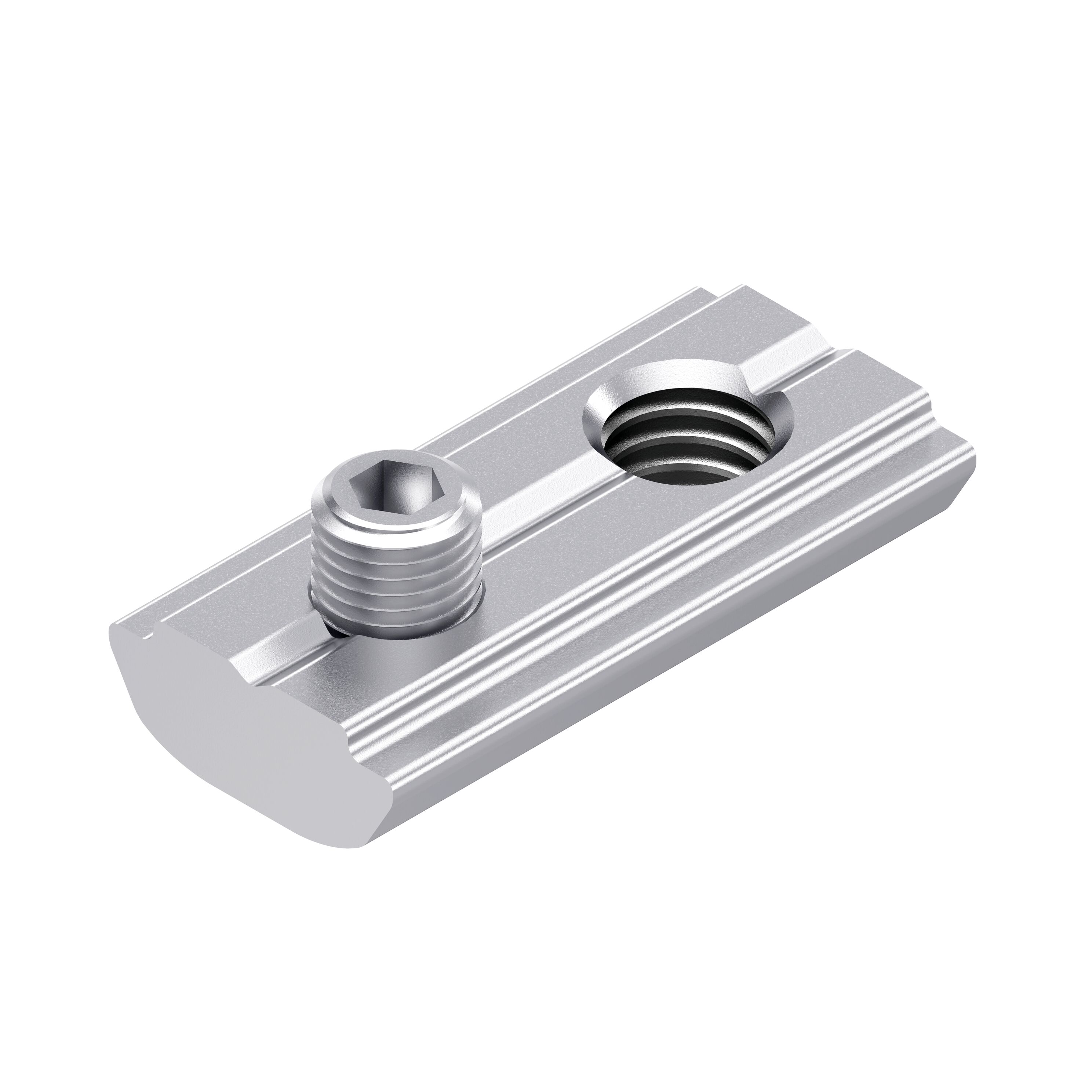

Swivel-in sliding block, with headless setscrew groove 8 steel; galvanized, M5; M6
The swivel in sliding block with headless setscrews permits shake proof fixing in all positions, Profile finishing: not required
The swivel in sliding block with headless setscrews permits shake proof fixing in all positions, Profile finishing: not required
