RETURN BLOCK WEIGHT COUNTERBALANCE

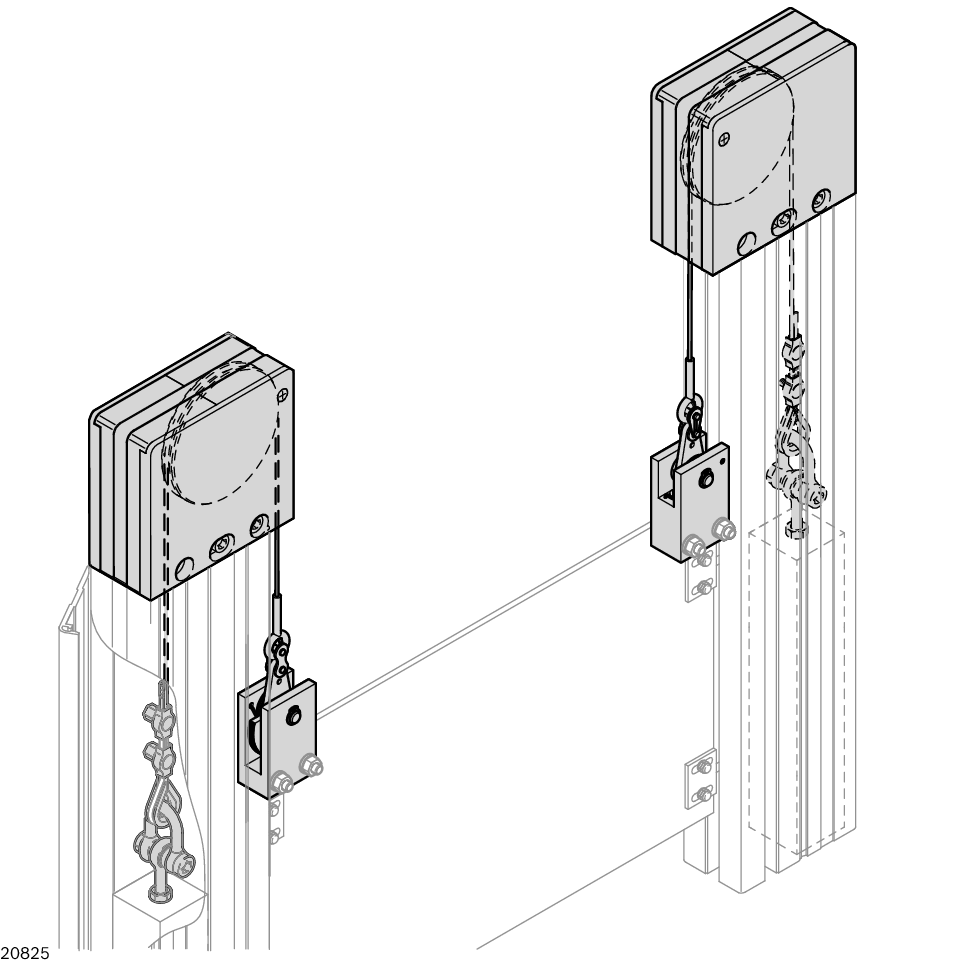

Counterbalance, Safety catch, Length of cable can be adjusted, Service life: 50,000 actuations, For lifting doors comprising a deflection pulley and control cable, Counterweight individually adjustable and preferably guided in a cable duct, Profile finish / Material Number:3842555566

RETURN BLOCK WEIGHT COUNTERBALANCE

Material #3842555566

Request Quote

Attributes

Productgroup ID 2
Packaging unit 1
Weight 0.576kg
Scope of delivery Incl. fastening material
Recommended accessories Cable duct 45x45 (3842549896),Slider (3842564170),Safety catch (3842546519)
Required accessories Counterbalance weight (square profile 35x35 mm)
Material information Fastening material: Steel, galvanized
Color Signal gray
Fastening material 1x cylinder head screw DIN7984-M12x40,1x washer DIN433-A8.4,1x cylinder head screw DIN7984-M8x20,1x T-nut 10 M8
Profile slot 10
  • Counterbalance
  • For lifting doors comprising a deflection pulley and control cable
  • Counterweight individually adjustable and preferably guided in a cable duct
  • Length of cable can be adjusted
  • Service life: 50,000 actuations
  • Profile finishes:
    – M12 for fastening the deflection pulley
  • Fit lifting doors with a back-up fall arrestor in accordance with the Machinery Directive 2006/42/EC
  • Safety catch
  • The safety catch in conjunction with the other components prevents a lifting door from falling if a cable breaks
  • If a cable breaks, the revolving part of the safety catch jams against a counterbearing and is wedged in position in the guide profile
  • Gap dimension between safety catch body and lateral guide profile: 6 mm
  • One safety catch is required for each cable:
    – max. load per safety catch: 250 N
    – min. load per safety catch: 25 N
  • The counterbearing (e.g. slider 3 842 530 303should be mounted under the safety catch and as close as possible to it
  • It can also be mounted without a frame on surface elements which have adequate transverse rigidity
  • Before installation and use please read the data sheet containing notes on use which is enclosed with the product
  • Profile finishes:
    – M12 for fastening the deflection pulley
    - Profile finishes:
    – M12 for fastening the deflection pulley
  • One safety catch is required for each cable:
    – max. load per safety catch: 250 N
    – min. load per safety catch: 25 N
    - One safety catch is required for each cable:
    – max. load per safety catch: 250 N
    – min. load per safety catch: 25 N
  • The counterbearing (e.g. slider 3 842 530 303should be mounted under the safety catch and as close as possible to it - The counterbearing (e.g. slider 3 842 530 303should be mounted under the safety catch and as close as possible to it
