BUTT CONNECTOR P45
| Profile [P] | 45x… |
| Productgroup ID | 2 |
| ESD | yes |
| Diameter D | 17mm |
| Length [L] | 45mm |
| Material | Screw steel, galvanized |
| Weight | 0.126kg |
| Notice | Longitudinal end connector creates conductive connection, but the cover caps included in the set are not ESD-compatible. |
| Scope of delivery | Incl. 4 x cover cap |
| Recommended accessories | Cover cap D17 x 44.6 (3842551054), ESD (3842551055) |
| Material information | Longitudinal end connector: Screw steel, galvanized,Centering pin, cover caps: PP, signal gray |
| Color | Signal gray |
| Profile slot | 10 |
- For the end-to-end connecting of two profiles
- Through hole D17 (two-sided longitudinal end connector)
– Blind hole DB17 or through-hole D17 (end connector on one side) - Through hole D17 (two-sided longitudinal end connector)
– Blind hole DB17 or through-hole D17 (end connector on one side) - Through hole D17 (two-sided longitudinal end connector)
– Blind hole DB17 or through-hole D17 (end connector on one side)

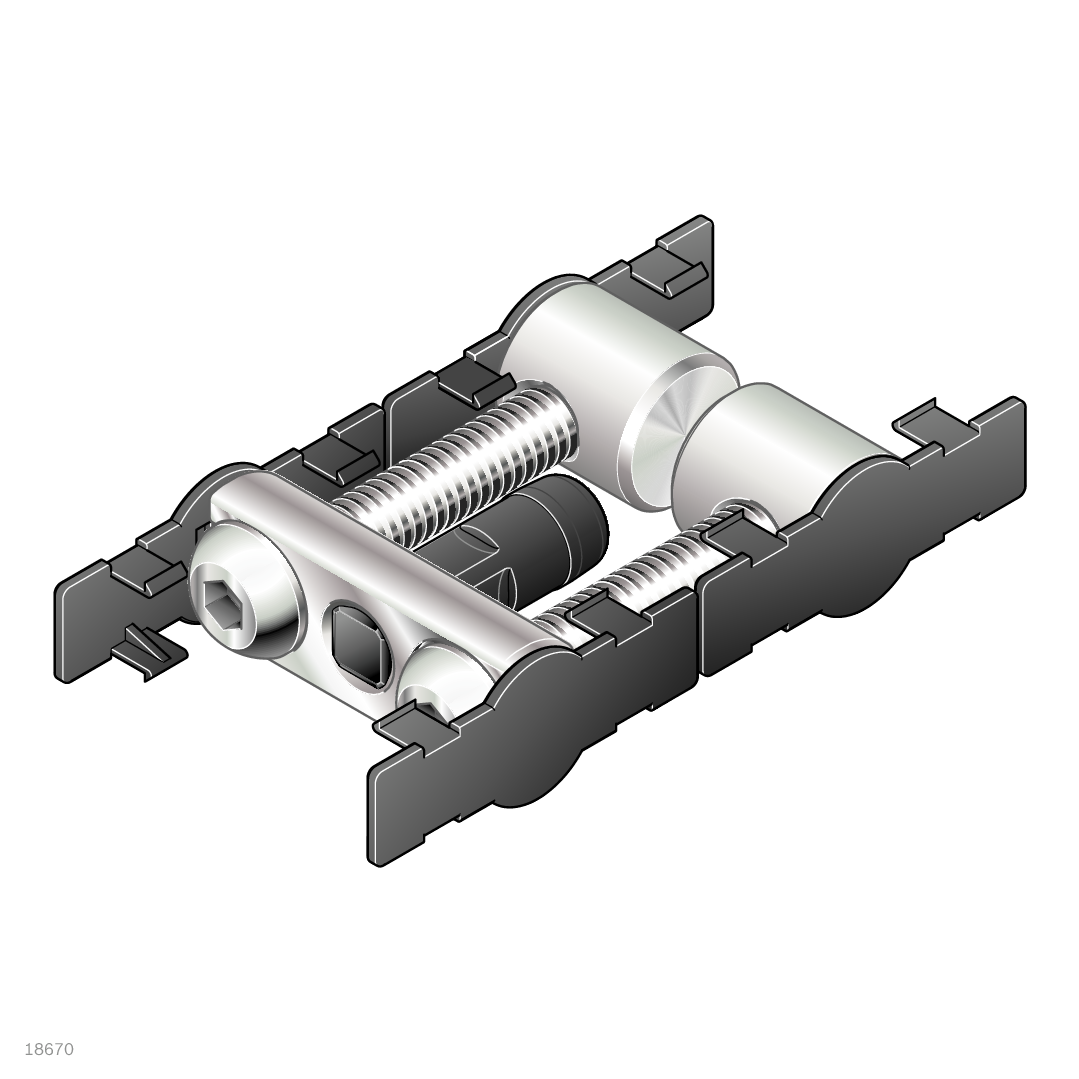

Longitudinal end connector, two-sided, length 45
For the end to end connecting of two profiles, Through hole D17 (two sided longitudinal end connector)
– Blind hole DB17 or through hole D17 (end connector on one side)
For the end to end connecting of two profiles, Through hole D17 (two sided longitudinal end connector)
– Blind hole DB17 or through hole D17 (end connector on one side)
| Recommended accessories | |
| Bolt connector D17 x 44,6; ESD |
End connector, two-sided
End connector, one-sided
