RETURN 65+ 90°

Advantage over alpine conveyor with head drive:<br> <br>- Shorter chain return, so the required tensile force of the conveyor chain is lower and therefore the possible volume of the alpine conveyor is larger<br>- No longer necessary to mount the slide rails requir / Material Number:3842552984

RETURN 65+ 90°

Material #3842552984

Request Quote

Attributes

Productgroup ID 2
Packaging unit 1
Effective sliding rail length 4x 117m
Actual chain length 0,483m
Weight 3.5kg
Scope of delivery Incl. fastening material,For AL systems: Adapter AL-STS
Delivery information Fully assembled
Size [b] 65
Material information Housing: Non-rusting steel 1.4301,Chain wheel: PA,Chain guide: PA,Connector: Non-rusting steel 1.4301,Hexagonal shaft: PA,Ball bearing: Non-rusting steel 1.4301/FDA
  • Advantage over alpine conveyor with head drive:

    - Shorter chain return, so the required tensile force of the conveyor chain is lower and therefore the possible volume of the alpine conveyor is larger
    - No longer necessary to mount the slide rails required for the chain return on the bottom side of the profile
    - The required conveyor chain is shorter
  • Advantage over alpine conveyor with head drive:

    - Shorter chain return, so the required tensile force of the conveyor chain is lower and therefore the possible volume of the alpine conveyor is larger
    - No longer necessary to mount the slide rails required for the chain return on the bottom side of the profile
    - The required conveyor chain is shorter
    - Advantage over alpine conveyor with head drive:

    - Shorter chain return, so the required tensile force of the conveyor chain is lower and therefore the possible volume of the alpine conveyor is larger
    - No longer necessary to mount the slide rails required for the chain return on the bottom side of the profile
    - The required conveyor chain is shorter

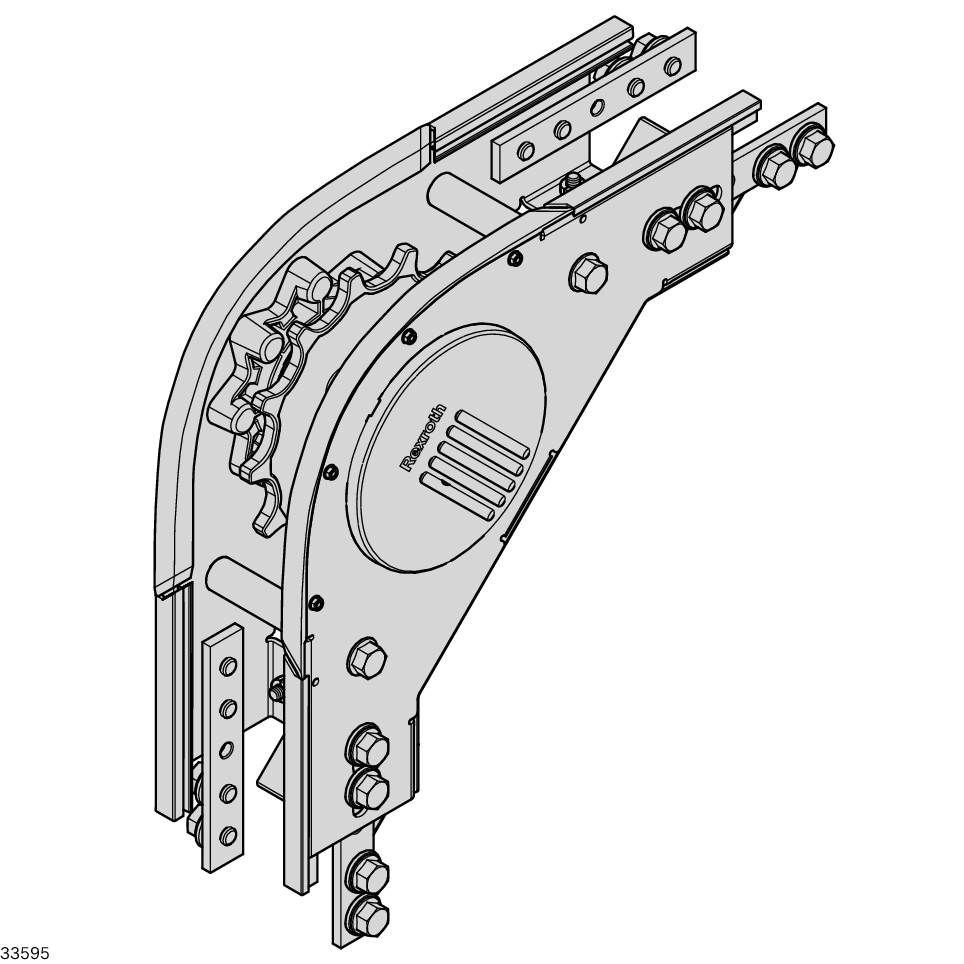

Return unit 90°; VFplus 65
Advantage over alpine conveyor with head drive:

Shorter chain return, so the required tensile force of the conveyor chain is lower and therefore the possible volume of the alpine conveyor is larger
No longer necessary to mount the slide rails requir

Condition of Delivery

Fully assembled

Scope of delivery

Incl. fastening material
For AL systems: Adapter AL-STS

90° return unit

Note: When using conveyor systems without a returning chain, a cover must be mounted by the customer to ensure personal safety.

For building alpine conveyors with chain running only on the upper side.

Only for use with:

- Connection drive (AL and STS)

- Drive kit, curve wheel AL (parameter AC = 1)

Size: 65, 90 Section length for return unit: Lmax = 30 m Chain tensile force for drive: max. 600 N Alpine conveyor for curve wheel drive or connection drive

Material

Return unit 90°; VFplus 65 Housing: stainless steel
Chain wheel: PA
Chain guide: PA
Connector: stainless steel
Hexagonal shaft: PA
Ball bearings: stainless steel/FDA
Return unit 90°; VFplus 90

Combination matrix

Straight

Curves

Drives

Return Unit

Section profile AL open

Section profile AL closed

Assembly module

Curve wheel

Roller curve*

Horizontal sliding curve

Vertical curve

Head drive

Curve wheel drive

Connection drive

Center drive (STS)**

Basic unit

90° (STS)**

Transmission kit

Straight

Section profile AL open

J

Section profile AL closed

J

J

Assembly module

J

J

N

Curves

Curve wheel

J

J

L2)

L2)

Roller curve*

J

N

J

N

L1)

Horizontal sliding curve

J

J

J

J

N

L1)

Vertical curve

J

J

J

J

L1)

L1)

L1)

Drives

Head drive

J

J

L2)

L2)

L1, 4)

L1)

L1, 4)

N

Curve wheel drive

J

J

L2)

L2)

N

L1)

L1)

N

N

Connection drive

J

J

L2)

L2)

N

L1)

L1)

N

N

N

Center drive (STS)**

L5)

L5)

L2, 5)

L2, 5)

N

L1, 5)

L1, 5)

N

N

N

N

Return Unit

Basic unit

J

J

L2)

L2)

L1, 4)

L1)

L1, 4)

L2)

N

N

L2, 3)

L2, 3)

90° (STS)**

L5)

L5)

L2, 5)

L2, 5)

N

L1, 5)

L1, 5)

N

N

L2, 5)

N

N

L2)

Transmission kit

N

N

N

N

N

N

N

J

N

J

N

J

N

N

J

possible without restrictions

* Support profile must project 76+2 mm into the roller curve.

L

possible with restrictions

** AL-STS adapter included in the scope of delivery.

N

not possible

1) Profile connector not required
2) Use of a profile piece (Lmin = 120 mm)
3) Assembly module required
4) For sizes 160-320: shorten the support rail on the dotted line
5) Use of the AL-STS adapter
