Attributes

Productgroup ID	2
Packaging unit	Set
Weight	3kg
Scope of delivery	2 support brackets incl. fastening material for assembly
Delivery information	Not assembled

• For connecting the transverse section, independent of the drive side of the main section. If a circuit only consists of lift transverse units, the transverse sections are connected directly to the longitudinal section
• Support brackets made from galvanized steel incl. covers for the open profile ends of the transverse section
• Guide kit
• The guide kit is part of the connection bridge.
• To connect a standard section, the guide kit must be ordered separately.
• Guide kit - Guide kit

ST 5/XH, ST 5/H connection kit

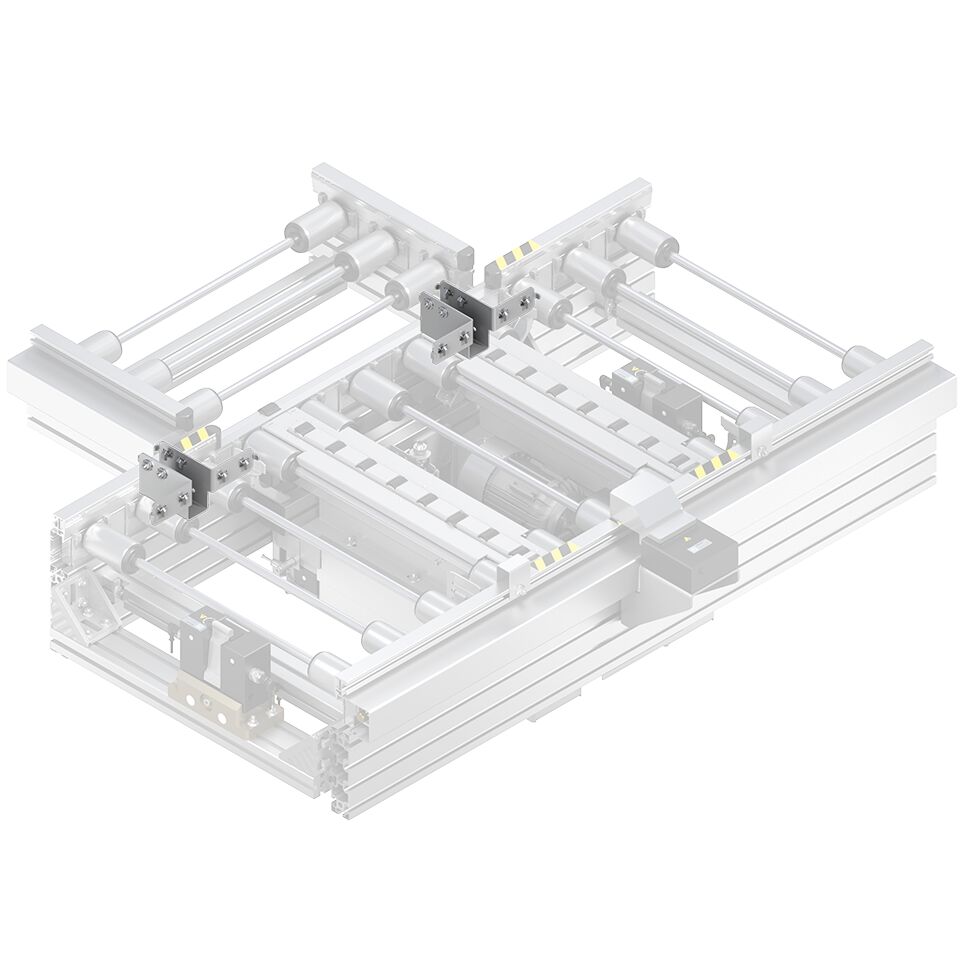

For connecting the transverse section, independent of the drive side of the main section. If a circuit only consists of lift transverse units, the transverse sections are connected directly to the longitudinal section, Support brackets made from galvanize

• 3D CAD
• Data Sheet

Condition of Delivery

ST 5/H, ST 5/XH connection kit	Not assembled
ST 5/OC DD2 connection kit
ST 5/OC DD1 connection kit
TS5 guide kit

Scope of delivery

ST 5/H, ST 5/XH connection kit	2 support brackets incl. fastening material for assembly
ST 5/OC DD2 connection kit
ST 5/OC DD1 connection kit
TS5 guide kit	2 guide aids incl. fastening material for assembly

Guide kit (A)

Set up of transverse conveyor

No.
3842549782
3842549783
3842549784
3842545975
