Attributes

Cover cap	yes
Productgroup ID	2
Packaging unit	20
ESD	yes
Dimensions	45x90
Material	PP
Weight	0.02321kg
Color	Black

• Brackets with centering lugs for rapid, precise assembly with protection against turning
• Centering lugs can be easily broken off for assembly on plates or at right angles to the slot
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005)
• Profile finishing: not required
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

Cover cap for bracket 45x90, black

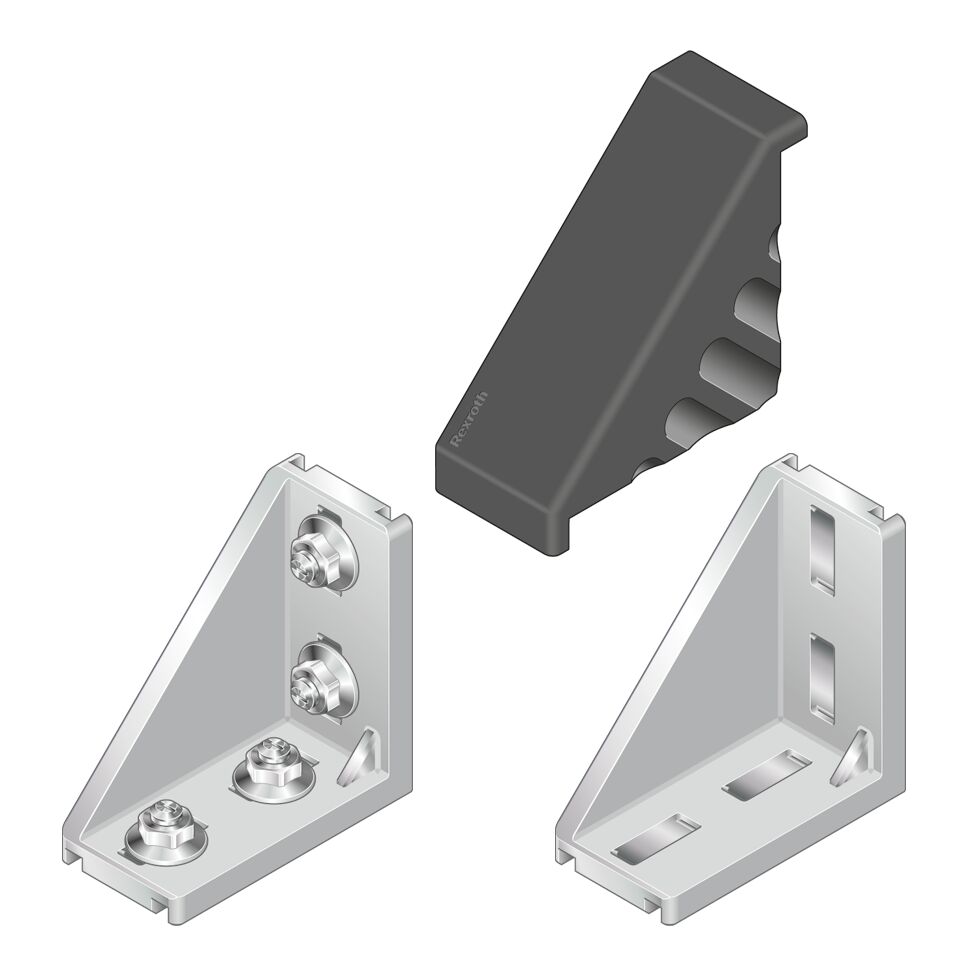

Brackets with centering lugs for rapid, precise assembly with protection against turning, Centering lugs can be easily broken off for assembly on plates or at right angles to the slot, Cover cap to protect from dirt, available in signal gray (RAL 7004) an

• 3D CAD
• Data Sheet

	Recommended accessories
	Cover cap for bracket 45/90, signal gray
	Cover cap for bracket 45/90, black

FS7

Bracket 45/90 with cover cap

Connection elements, selection criteria

	Groove	ESD	Material entry
				Fmax	Mmax	Mmax	Mmax
				N	Nm	Nm	Nm
Bracket	10		Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized	6000	180	400	60
	10		Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized	6000	180	400	60
	10		Bracket: Diecast aluminum, vibratory ground	6000	180	400	60
Cover cap for bracket			PP
			PP

Typ
45 / 90	6000 N	180 Nm	400 Nm	60 Nm
