Attributes

Conduction resistance [RA]	≤ 10⁶ Ω
Productgroup ID	2
Packaging unit	1
Force F	600N
ESD	yes
Diameter D	80mm
Total height	108mm
Material	Solid rubber
Dimension [h]	108mm
Weight	0.37kg
Required accessories	Screw M12x40 (ISO 4762) for fastening to the profile core (↻ 35 Nm),Bearing ring if cover cap with hole is used
Fastening material	1x square screw M12x22,1x hexagon nut DIN985 M12
Profile slot	10

• Profile finishing: thread cutting M12 in the case of assembly in central hole
• Rubber running surface made of solid rubber with good deformation elasticity. No permanent flattening of the wheel due to it traveling over edges or not being moved for long periods
• Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω
• Versatile range of uses
• Wheels with excellent running properties
• Mounting of the roller in the profile slot or central hole (accessories required)
• LR with lock: lock prevents the wheel from rolling or turning
• Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 106 Ω - Suitable for ESD-sensitive areas. Conductive material version in accordance with DIN EN 61340-5-1; conduction resistance ≤ 10⁶ Ω

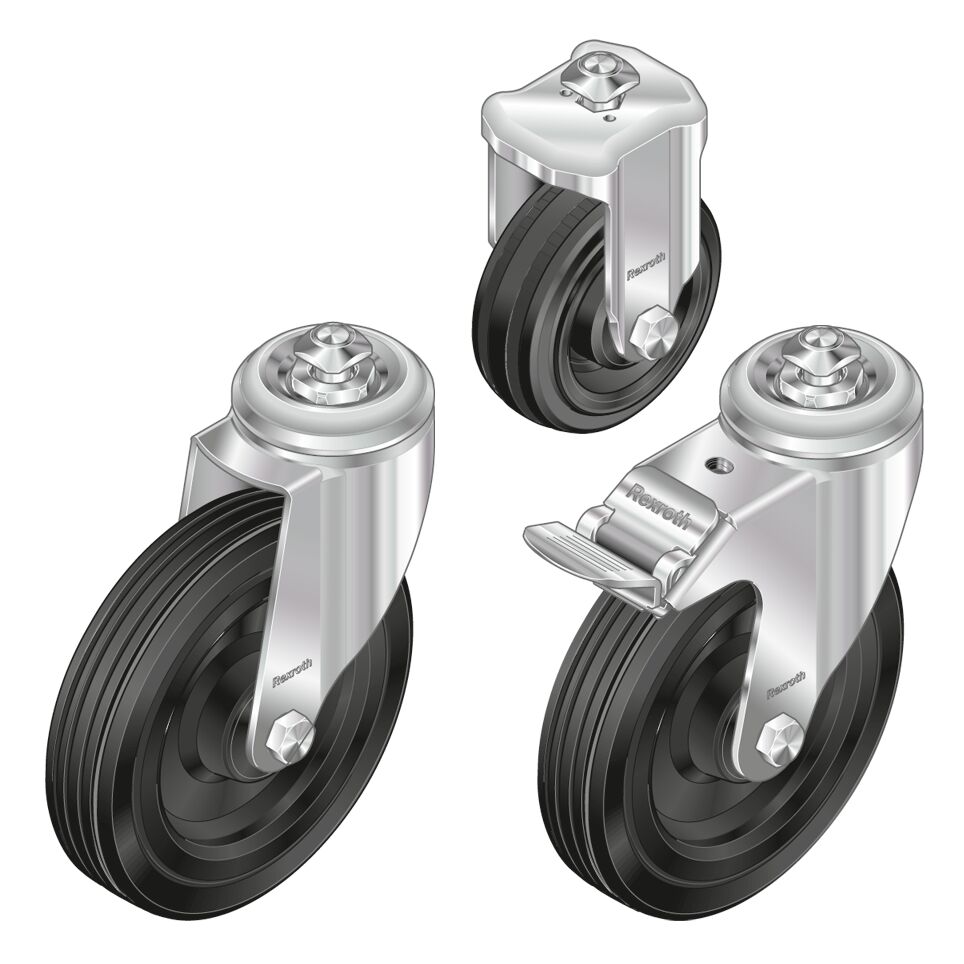

Trestle wheel, solid rubber, F600
Suitable for ESD sensitive areas. Conductive material version in accordance with DIN EN 61340 5 1; conduction resistance ≤ 10⁶ Ω, Rubber running surface made of solid rubber with good deformation elasticity. No permanent flattening of the wheel

• 3D CAD
• Data Sheet

Bearing ring

Bearing ring

For cover caps with hole in the sizes 40x40, 45x45, 50x50 and 60x60 For M12 threads To protect the caps when tightening accessories
