Attributes

Productgroup ID	2
Packaging unit	Set

• Damping elements

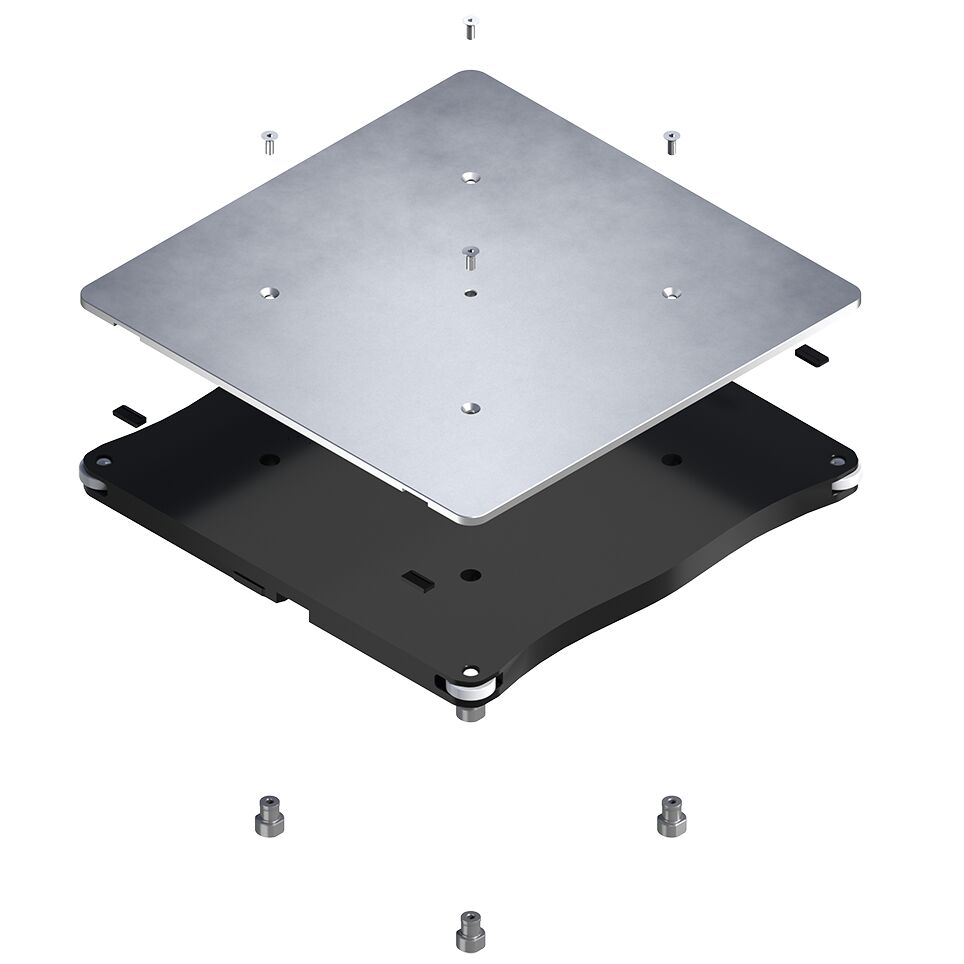

• Positioning bushing kit
• For fastening the carrying plate
• For a defined workpiece pallet entry in the positioning unit
• Damping elements for assembly with the carrying plate. They help to avoid noise and damage when workpiece pallets run into each other. Four damping elements (= 1 set) are needed per workpiece pallet.

Damping element sets
Positioning bushing kit, Positioning bushing kit, For a defined workpiece pallet entry in the positioning unit, For fastening the carrying plate, Damping elements for assembly with the carrying plate. They help to avoid noise and damage when workpiece pal

• Data Sheet

Scope of delivery

WT 5 positioning bushing kit	4 positioning bushings	4 screws for fixing the carrying plate
WT 5 b attachment kitWT455
WT 5 b attachment kitWT650, 850

Positioning bushing kit

Selection of workpiece pallets in accordance with load limits

Workpiece pallet selection

Permissible workpiece pallet load

No.	Material
3842545264	hardened steel
3842554931	PUR, POM
3842554932
