Attributes

Productgroup ID	2
Packaging unit	10
Weight	0.159kg
Scope of delivery	Incl. grooved pin, 2 x cover cap, washer
Material information	Grooved pin: Steel, galvanized,Washer, cover cap: TPE

• For self-assembly of hinges or hinge bands
• Can be used as a hinge band for non-transparent covering of the door crack
• Hinge profiles for slot dimensions 30 and 40/45/50 can also be combined for maximum flexibility
• For doors with profile frames or doors made of solid surface elements
• Fitted on outside or inside

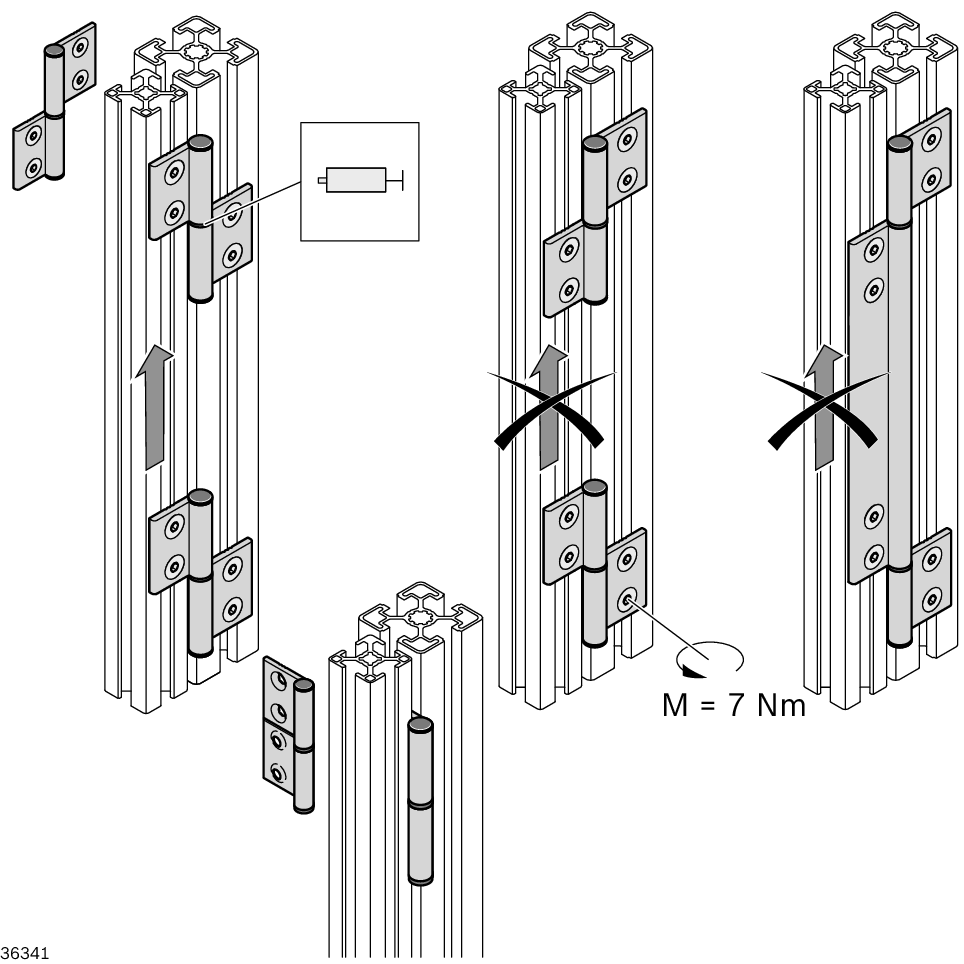

• Assembly as removable and non-removable hinges
• Opening to the right and left
• Centering slots as a drill guide for mounting bores
• Required finishing:
  – cut the hinge halves to length
  – drilled holes for fixing
• Required finishing:
  – cut the hinge halves to length
  – drilled holes for fixing - Required finishing:
  – cut the hinge halves to length
  – drilled holes for fixing

Hinge pins
For doors with profile frames or doors made of solid surface elements, Fitted on outside or inside, For self assembly of hinges or hinge bands, Can be used as a hinge band for non transparent covering of the door crack, Hinge profiles for slot dimensions

• 3D CAD
• Data Sheet

Required accessories

Hinge pins
M6 T-nut
Screw ISO 10642 M6x12 (8 mm slot)	Screw ISO 10642 M6x12 (10 mm slot)

T-nut

T-nut

Standard element for secure, conductive connections Stop for correct positioning in the profile slot Stainless steel T-nut, e.g. for outdoor or cleanroom applications

CAD data

Hinge profile 30, 40/45/50

Hinge profile 30, 40/45/50

Hinge profile 30

Hinge profile 40/45/50

Hinge pins

No.	Material
3842543371	Aluminum, anodized
3842543372
3842544661	Grooved pin: steel; galvanized Washer, cover cap: PA
