Attributes

Productgroup ID	2
designLINE	yes
Packaging unit	2
ESD	yes
Force [Fmax]	300N
Profile [P2]	40
Hinge type	detachable
Material	Diecast aluminum
Dimension [B]	37mm
Weight	0.065kg
Scope of delivery	Incl. fastening material
Dimension [A]	28
Material information	Hinge: Diecast aluminum, painted,Fastening material: Steel, galvanized,Grooved pin: Steel, galvanized,Washer: PA
Profile [P1]	30
Fastening material	1x countersunk screw DIN7991-M6x12,1x T-nut groove 8 M6,1x countersunk screw DIN7991-M6x16,1x T-nut groove 10 M6,1x washer DIN125-A6.4
Profile slot	8,10

• Compact, removable hinge for doors which open to the right or left
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• Centering lugs as an assembly aid and anti-torsion element
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

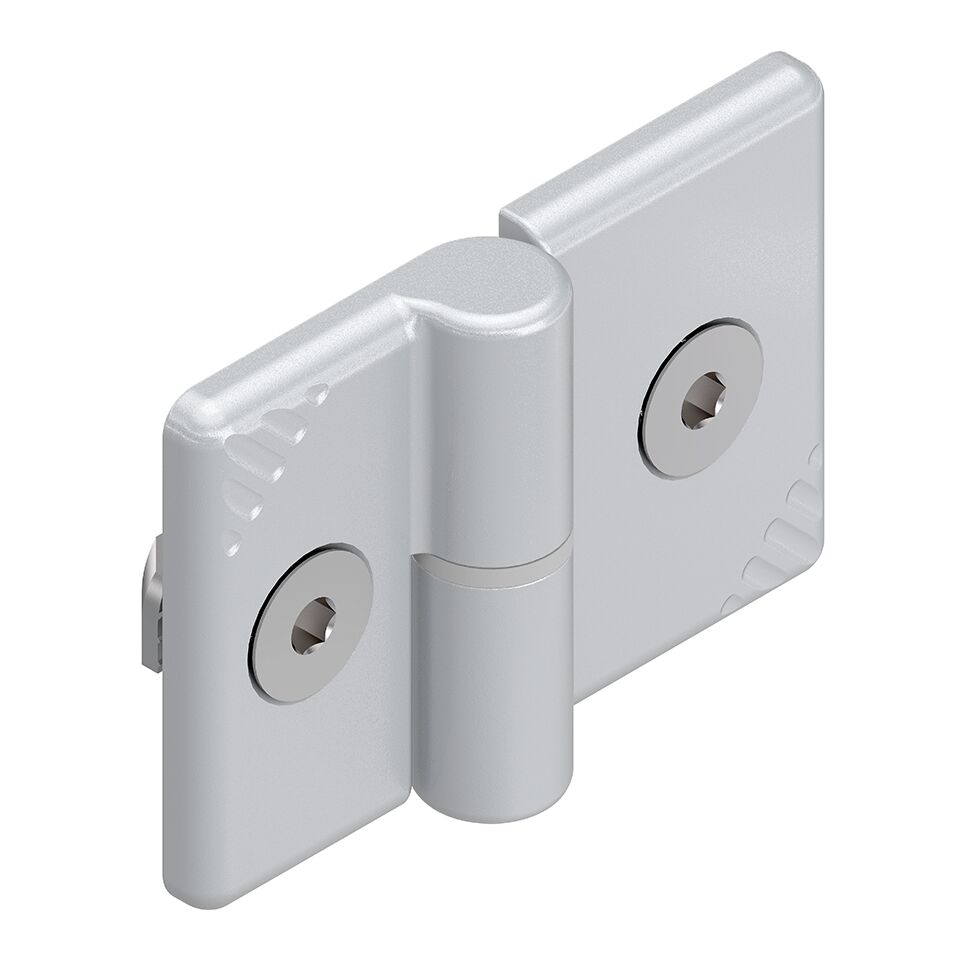

Hinge, LIFTOFF right P1=30 P2=40
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Compact, removable hinge for doors which open to the right or left, Centering lugs as an assembly aid and anti torsion element

• 3D CAD
• Data Sheet

FS1	FS2	FS3	LS4

LIFTOFF hinge

No.	Material
3842543334	Hinge: diecast aluminum, painted Fastening material: steel; galvanized Grooved pin: steel; galvanized Washer: PA
