TRANSMISSION DRIVE CSS
| Delivery information | Unassembled in parts,Bearing already press-fitted,Incl. adapter set and additional hexagonal shaft |
| ESD | Yes |
| Gross weight | 4.53kg |
| Height | 220mm |
| Length | 291mm |
| Net weight | 4.53kg |
| Required accessories | Belt section BS 2 or BS 2/M,Gear motor,Torque support (to be supplied by the operator) |
| Section load in accumulation operation | 60kg |
| Torque | 12Nm |
| Weight | 4.53kg |
| Width | 124mm |
- For mounting larger external motors for the transmission of higher drive torques (maximum section loads of the belt section must not be exceeded).
- 1 - For mounting larger external motors for the transmission of higher drive torques (maximum section loads of the belt section must not be exceeded).

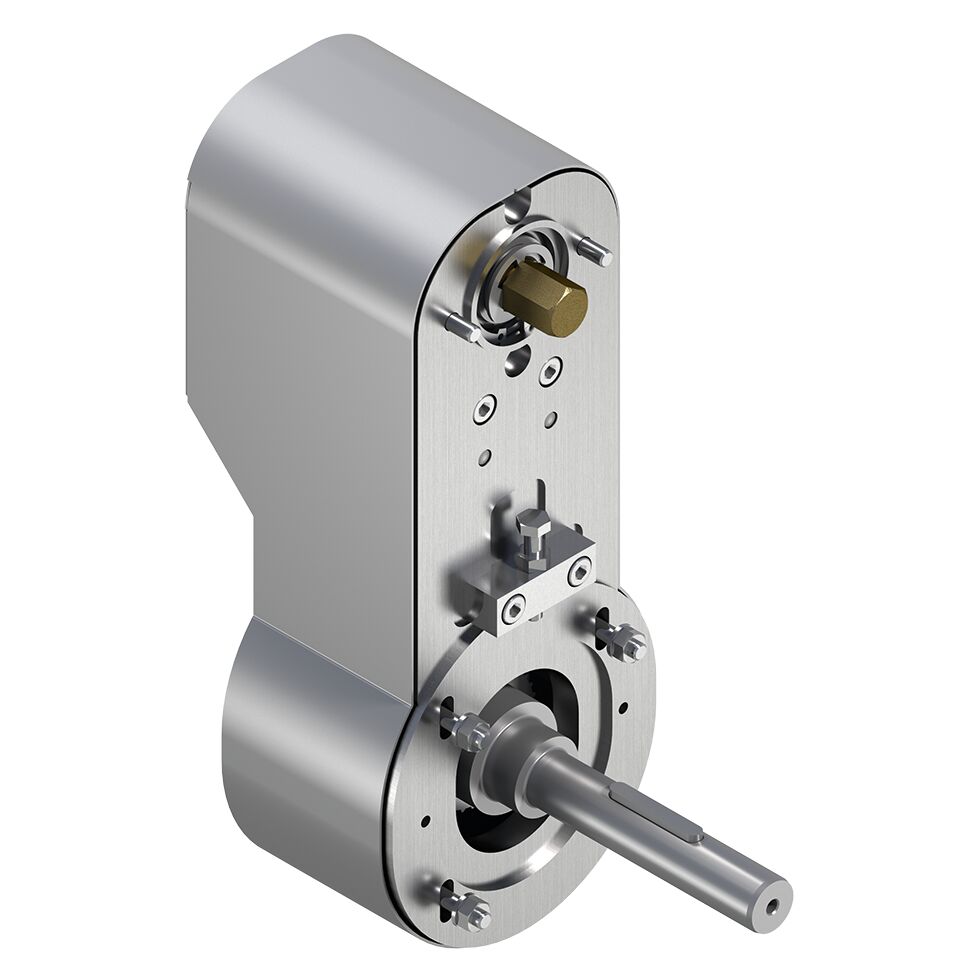

Transmission Drive
For mounting larger external motors for the transmission of higher drive torques (maximum section loads of the belt section must not be exceeded).
For mounting larger external motors for the transmission of higher drive torques (maximum section loads of the belt section must not be exceeded).
Required accessories
| Belt section BS 2 or BS 2/M |
| Gear motor |
| Torque support (to be supplied by the operator) |
Condition of Delivery
| Unassembled in parts |
| Bearing already press-fitted |
| Incl. adapter set and additional hexagonal shaft |
Transmission Drive
|
No. |
3842542550 | ||
|
Max. section load in accumulation operation |
kg |
60 | |
|
ESD |
yes | ||
|
Maximum transferable torque |
Nm |
12 |
