Attributes

Bending moment 1	80Nm
Productgroup ID	2
ESD	yes
Dimensions	30x30
Material	Diecast aluminum, painted
Weight	0.055kg
Scope of delivery	Set incl. fastening material (FS)
Material information	T-connector designLINE: Diecast aluminum, painted,Woven wire grille and fastening material: Steel, galvanized
Color	White aluminum (RAL 9006)
Fastening material	1x cylinder head screw DIN7984 M8x30,2x cylinder head screw DIN7984 M5x16,2x T-nut groove 8 M5
Profile slot	8

• For right-angled profile connections
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• Profile finishes:
  30x30: M8 thread cutting in core
  40x40, 45x45, 50x50: not required
• Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
• Profile finishes:
  30x30: M8 thread cutting in core
  40x40, 45x45, 50x50: not required - Profile finishes:
  30x30: M8 thread cutting in core
  40x40, 45x45, 50x50: not required

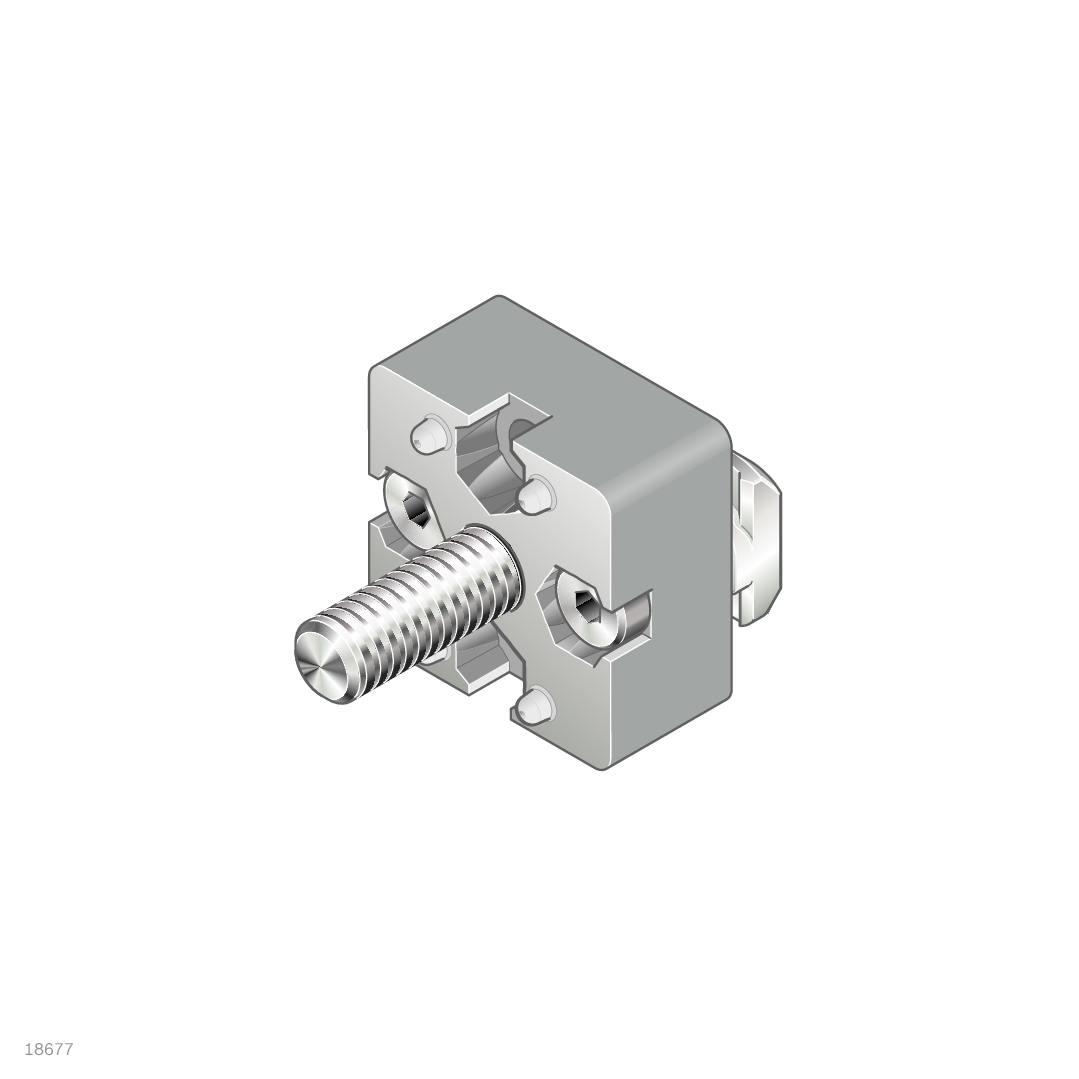

T-connector 30x30 set designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required, For right angled profile connections

• 3D CAD
• Data Sheet

FS1	FS2

T-connector 30x30

Connection elements, selection criteria

Typ​
30x30	4000 N	80 Nm
40x40	9000 N	150 Nm
45x45	9000 N	200 Nm
50x50	10000 N	170 Nm
