SUPPORT ARM JOINT 40X80 SILVER
| Bending moment 1 | 130Nm |
| Productgroup ID | 2 |
| designLINE | yes |
| Packaging unit | 1 |
| Dimension [p] | 80mm |
| ESD | yes |
| Dimensions | 40x80 |
| Modular dimension | 40mm |
| Material | Diecast zinc, painted |
| Weight | 0.818kg |
| Scope of delivery | Incl. cover caps, bolt connectors, fastening material (FS) |
| Material information | designLINE supporting arm joint: Diecast zinc, painted,Fastening material: Steel, galvanized,Cover cap: PA, black |
| Color | White aluminum (RAL 9006) |
| Profile slot | 10 |
- Profile finishing: drilling of through-hole D17
- Suitable for swiveling end connections, e.g. for the construction of supporting arms
- Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
- Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

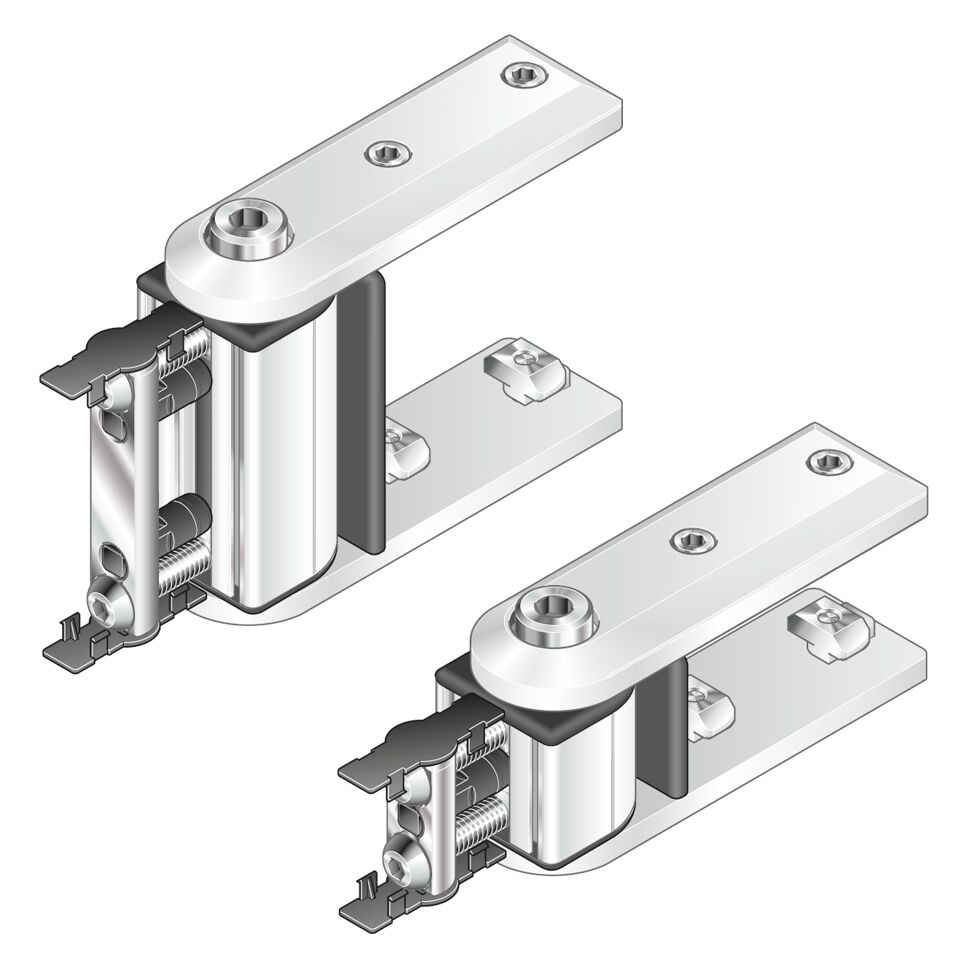

Supporting arm joint 40x80 designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Profile finishing: drilling of through hole D17, Suitable for swiveling end connections, e.g. for the construction of supporting arms
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Profile finishing: drilling of through hole D17, Suitable for swiveling end connections, e.g. for the construction of supporting arms
|
FS1 |
|
Supporting arm joint 40x40, 40x80
|
Profil |
|
|
MMax = F x L (Nm) |
|
|
40x40 |
40 |
|
40x80 |
150 |
