JOINT 40X40 SILVER

Version <i>designLINE </i>with special silver paint (RAL 9006) for an especially high-quality design, Swivel range 180°, For movable or rigid profile connections at any angle, With marking in 15° increments, Clamping and convenient adjustment of / Material Number:3842538684

JOINT 40X40 SILVER

Material #3842538684

Request Quote

Attributes

Productgroup ID 2
designLINE yes
Packaging unit 1
Force F2 1000N
Swivel range 180°
ESD yes
Dimensions 40x40
Modular dimension 40mm
Force F1 15000N
Material Diecast aluminum, painted
Weight 0.27kg
Scope of delivery Incl. fastening material
Recommended accessories Clamping lever: 3842516847
Material information designLINE joint: Diecast aluminum, painted, RAL 9006, fastening material: Steel, galvanized
Color White aluminum (RAL 9006)
Fastening material 2x flange head screw M8x16,2x T-nut groove 10 M8,2x screw S12x30
Profile slot 10
  • Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
  • For movable or rigid profile connections at any angle
  • Swivel range 180°
  • With marking in 15° increments
  • Clamping and convenient adjustment of “support” joint using a clamping lever (5 Nm)
  • Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

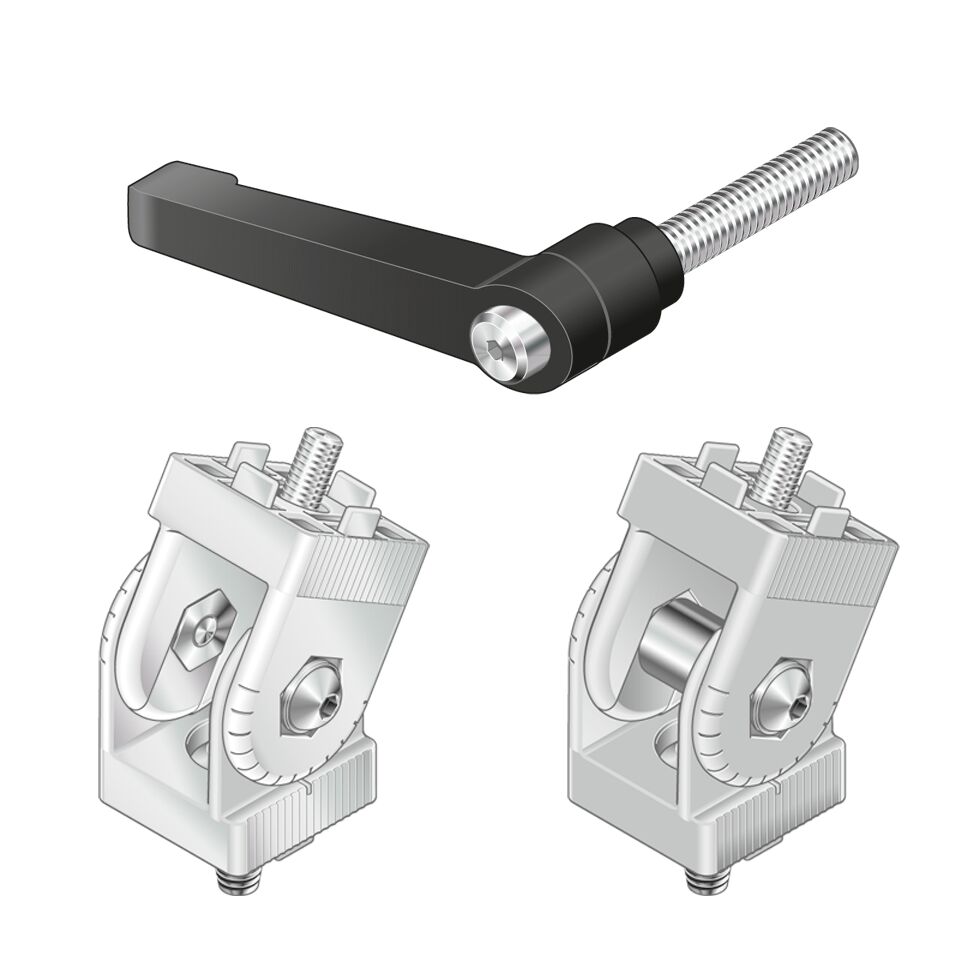

Joint 40x40 designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Swivel range 180°, For movable or rigid profile connections at any angle, With marking in 15° increments, Clamping and convenient adjustment of

FS3

FS4

Joint 40x40

Joint 40x40 support

Clamping lever

F1 (N)

F2 (N)

15000

1000
