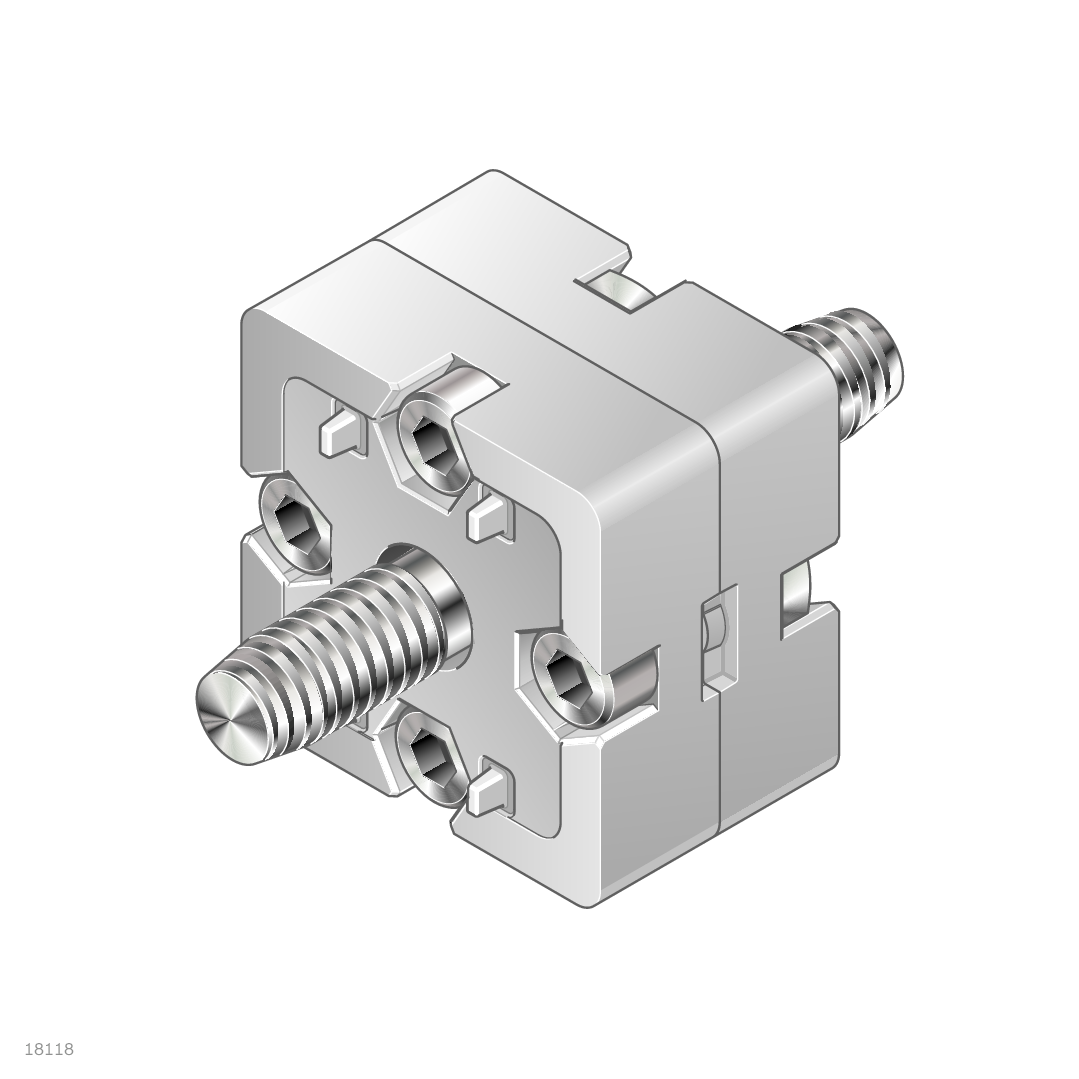

END CONNECTOR 45X45 SILVER SET

Version <i>designLINE </i>with special silver paint (RAL 9006) for an especially high-quality design, For end-to-end profile connections, Profile finishes:<br>30x30: M8 thread cutting in core<br>40x40, 45x45, 50x50: not required / Material Number:3842538658

END CONNECTOR 45X45 SILVER SET

Material #3842538658

Request Quote

Attributes

Bending moment 1 200Nm
Productgroup ID 2
ESD yes
Dimensions 45x45
Material Diecast zinc, painted
Weight 0.335kg
Scope of delivery Set incl. fastening material (FS)
Material information End connector designLINE: Diecast zinc, painted,Fastening material: Steel, galvanized
Color White aluminum (RAL 9006)
Fastening material 2x screw S12x30, 4x cylinder head screw ISO4762 M6x20,4x hexagon nut ISO4032 M6
Profile slot 10
  • For end-to-end profile connections
  • Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
  • Profile finishes:
    30x30: M8 thread cutting in core
    40x40, 45x45, 50x50: not required
  • Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
  • Profile finishes:
    30x30: M8 thread cutting in core
    40x40, 45x45, 50x50: not required
    - Profile finishes:
    30x30: M8 thread cutting in core
    40x40, 45x45, 50x50: not required
End connector 45x45 set designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, For end to end profile connections, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required

FS3

FS4

End connector 45x45

Typ​

30x30

81 Nm

40x40

170 Nm

45x45

200 Nm

50x50

180 Nm
