END CONNECTOR 40X40 SILVER SET
| Bending moment 1 | 170Nm |
| Productgroup ID | 2 |
| ESD | yes |
| Dimensions | 40x40 |
| Material | Diecast aluminum, painted |
| Weight | 0.185kg |
| Scope of delivery | Set incl. fastening material (FS) |
| Material information | End connector designLINE: Diecast aluminum, painted,Fastening material: Steel, galvanized |
| Color | White aluminum (RAL 9006) |
| Fastening material | 2x screw S12x30, 4x cylinder head screw ISO4762 M6x25,4x hexagon nut ISO4032 M6 |
| Profile slot | 10 |
- For end-to-end profile connections
- Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
- Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
- Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required - Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required

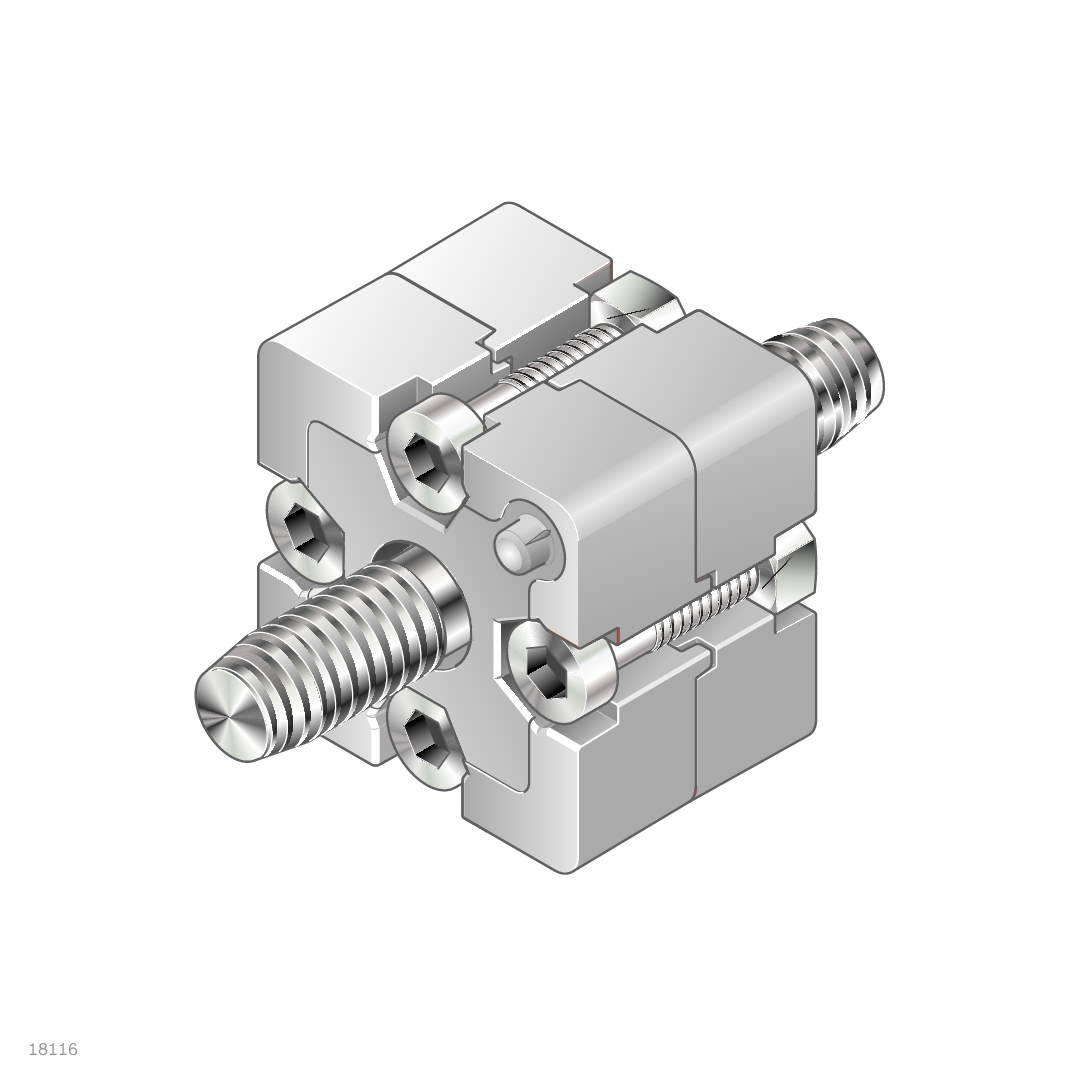

End connector 40x40 set designLINE
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, For end to end profile connections, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, For end to end profile connections, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required
|
FS3 |
FS4 |
|
|
End connector 40x40
|
Typ |
|
|
30x30 |
81 Nm |
|
40x40 |
170 Nm |
|
45x45 |
200 Nm |
|
50x50 |
180 Nm |
