Attributes

Productgroup ID	2
Weight	1.2kg

• The drive takes place via a belt section BS 1/T connected to the curve output or the return unit UM 1 of a section unit.
• Using additional drive kits improves the transport of the workpiece pallets WT 1/P at the start and end of the curve.
• Conveyor medium: Round belt (suitable for use in an EPA)
• Curve direction right (KR = R) or left (KR = L)
• The installation location AO describes the installation situation on the curve infeed and outfeed.

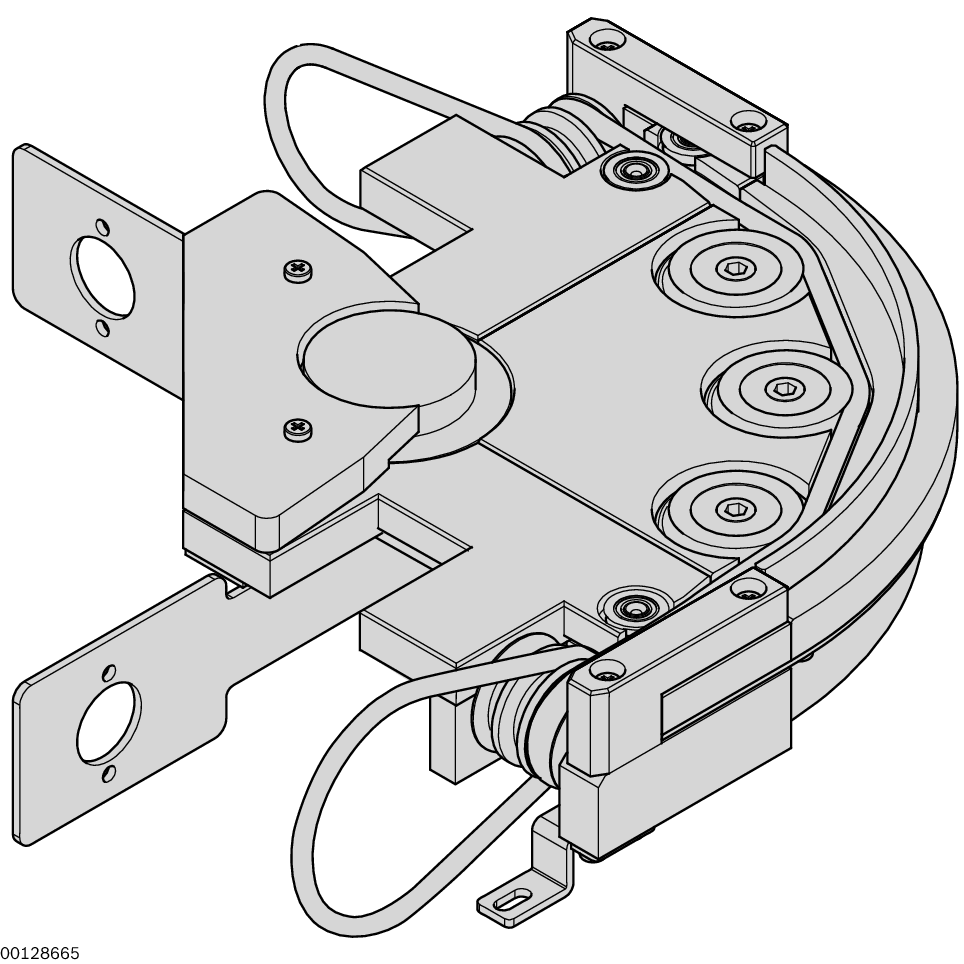

Drive kit BS 1
Curve direction right (KR = R) or left (KR = L), The drive takes place via a belt section BS 1/T connected to the curve output or the return unit UM 1 of a section unit., Using additional drive kits improves the transport of the workpiece pallets WT 1/P a

• Data Sheet

Curve KE 1/O-90

Curve KE 1/O-90 without its own drive for 90° curve transport of a workpiece pallet.

Separation should be used to ensure that no accumulation occurs on the curve and on the overdrive belts.

Reversible operation is not possible.

No.			3842999764	3842537618	3842537619
Max. section load in accumulation operation		kg	3
ESD			yes
Cleanroom class			ISO class 7
Dry room	r.F.	%	<1
