Attributes

Bending moment 1	170Nm
Productgroup ID	2
ESD	yes
Dimensions	50x50
Material	Diecast zinc
Weight	0.122kg
Scope of delivery	Set incl. fastening material (FS)
Material information	T-connector: Diecast zinc,Woven wire grille and fastening material: Steel, galvanized
Fastening material	1x screw S12x30,2x cylinder head screw DIN7984 M6x20,2x T-nut groove 10 M6
Profile slot	10

• For right-angled profile connections
• Profile finishes:
  30x30: M8 thread cutting in core
  40x40, 45x45, 50x50: not required
• Profile finishes:
  30x30: M8 thread cutting in core
  40x40, 45x45, 50x50: not required - Profile finishes:
  30x30: M8 thread cutting in core
  40x40, 45x45, 50x50: not required

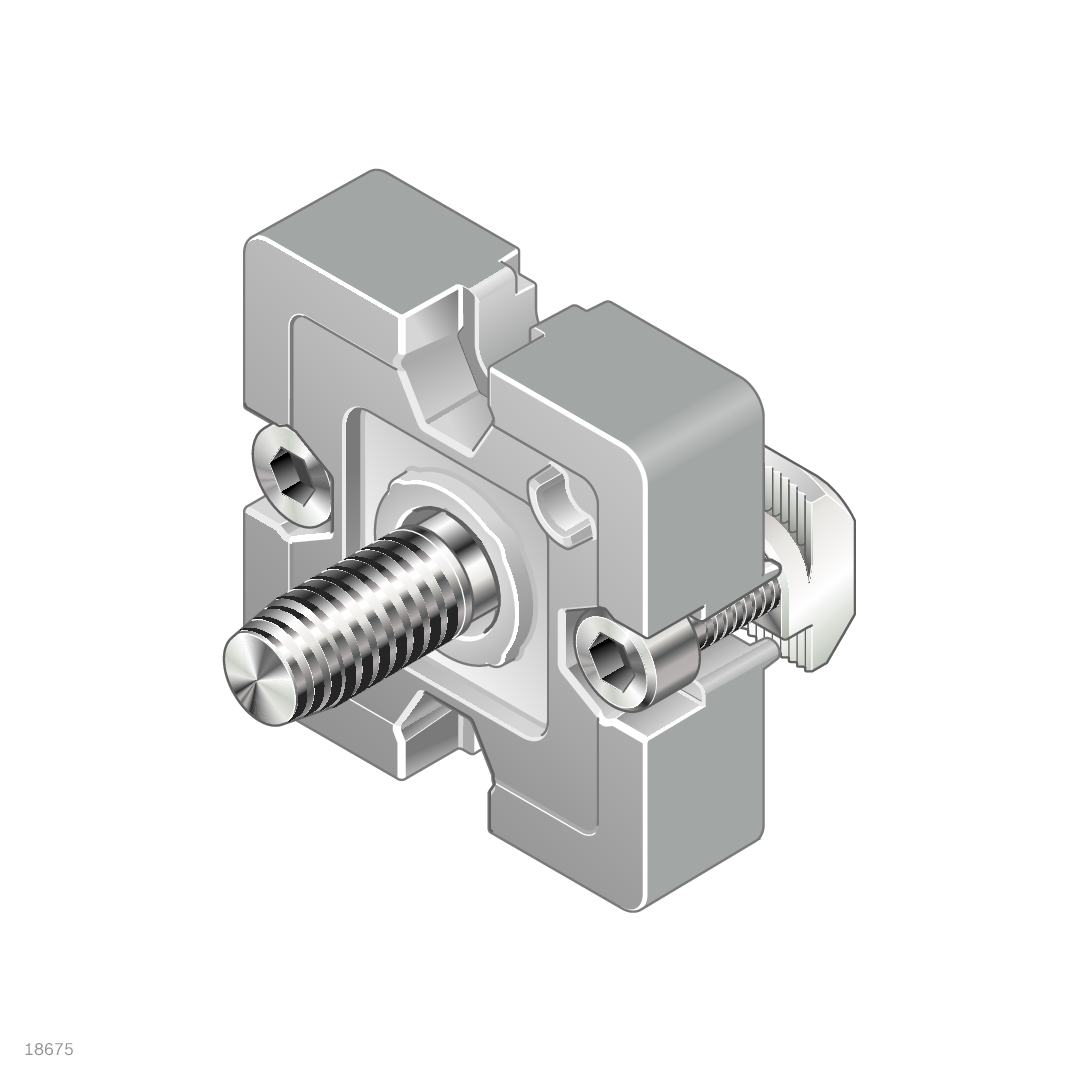

T-connector 50x50 set (standard)
Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required, For right angled profile connections

• 3D CAD
• Data Sheet

FS3	FS4

T-connector 50x50

Connection elements, selection criteria

Typ​
30x30	4000 N	80 Nm
40x40	9000 N	150 Nm
45x45	9000 N	200 Nm
50x50	10000 N	170 Nm
