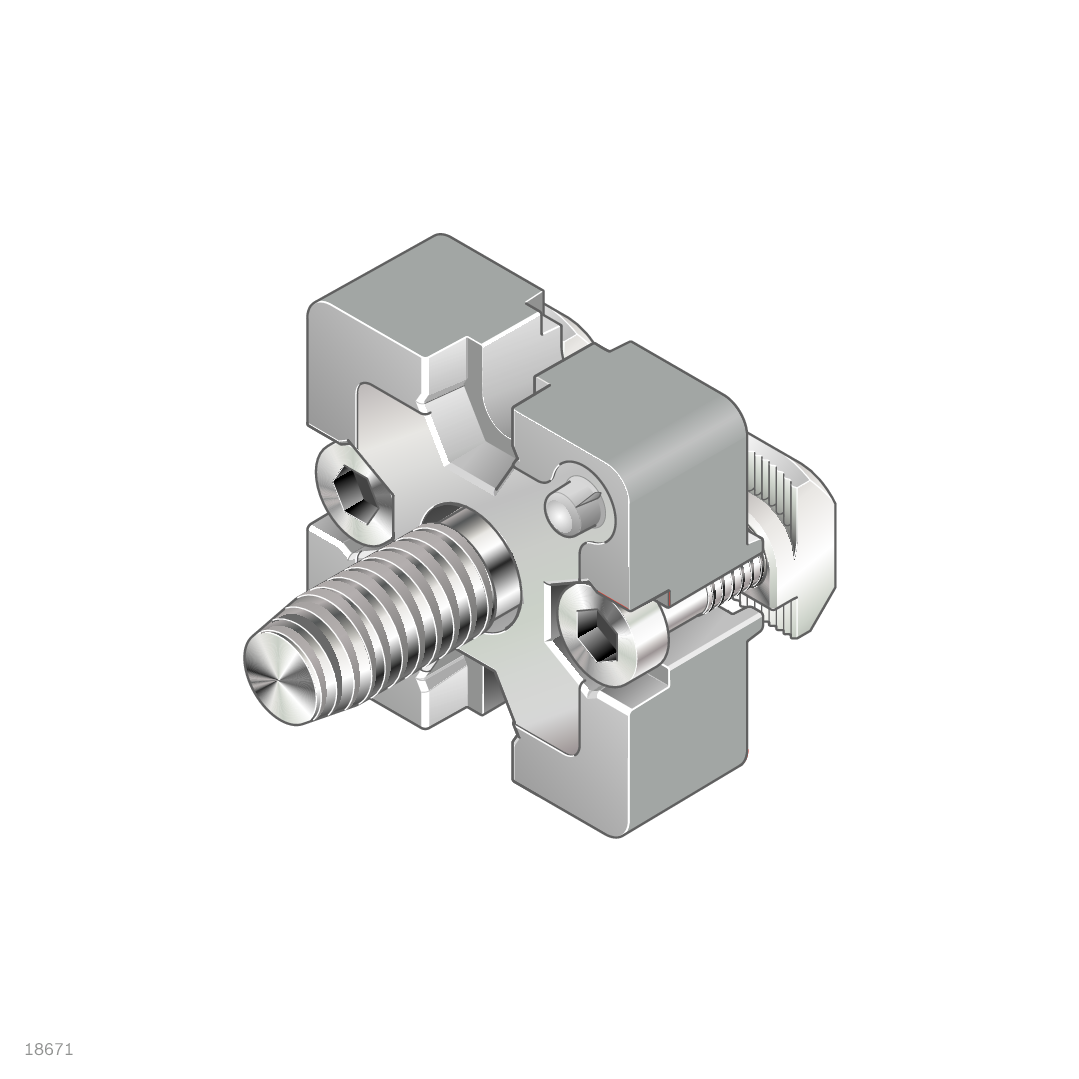

T-CONNECTOR 40X40

Version <i>designLINE </i>with special silver paint (RAL 9006) for an especially high-quality design, Profile finishes:<br>30x30: M8 thread cutting in core<br>40x40, 45x45, 50x50: not required, For right-angled profile connections / Material Number:3842532195

T-CONNECTOR 40X40

Material #3842532195

Request Quote

Attributes

Bending moment 1 150Nm
Productgroup ID 2
ESD yes
Dimensions 40x40
Material Diecast aluminum
Weight 0.106kg
Scope of delivery Set incl. fastening material (FS)
Material information T-connector: Diecast aluminum,Woven wire grille and fastening material: Steel, galvanized
Fastening material 1x screw S12x30,2x cylinder head screw DIN7984 M6x20,2x T-nut groove 10 M6
Profile slot 10
  • For right-angled profile connections
  • Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
  • Profile finishes:
    30x30: M8 thread cutting in core
    40x40, 45x45, 50x50: not required
  • Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
  • Profile finishes:
    30x30: M8 thread cutting in core
    40x40, 45x45, 50x50: not required
    - Profile finishes:
    30x30: M8 thread cutting in core
    40x40, 45x45, 50x50: not required
T-connector 40x40 set (standard)
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required, For right angled profile connections

FS3

FS4

T-connector 40x40

Connection elements, selection criteria

Typ​

30x30

4000 N

80 Nm

40x40

9000 N

150 Nm

45x45

9000 N

200 Nm

50x50

10000 N

170 Nm
