WORKPIECE PALLET WT 1/P-AL-160 KPL
| Productgroup ID | 2 |
| Admissible WT contact area weight [FGL] | 3kg |
| Dimension [d] | 59mm |
| Dimension [a] | 160mm |
| Dry room | <1 |
| ESD | yes |
| Dimension [c] | 118mm |
| Flatness | 0.05mm |
| Weight workpiece pallet [mWT] | 0.76kg |
| Weight | 0.785kg |
| Scope of delivery | Workpiece pallet, complete |
| Delivery information | Fully assembled |
| Recommended accessories | Switching element,Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT |
| Workpiece pallet width [bWT] | 160 |
| Material information | Workpiece pallet: Aluminum, chem. Nickel-plated,Wear pad: Polyamide (PA 66) |
| Workpiece pallet length [lWT] | 160 |
- 3 standard sizes
- Aluminum all-metal construction
- Double-sided dovetail slot for positioning in the positioning unit PE 1/P
- Positioning bushings for use with the lift positioning unit HP 1/P
- Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200
- Replaceable outer soles

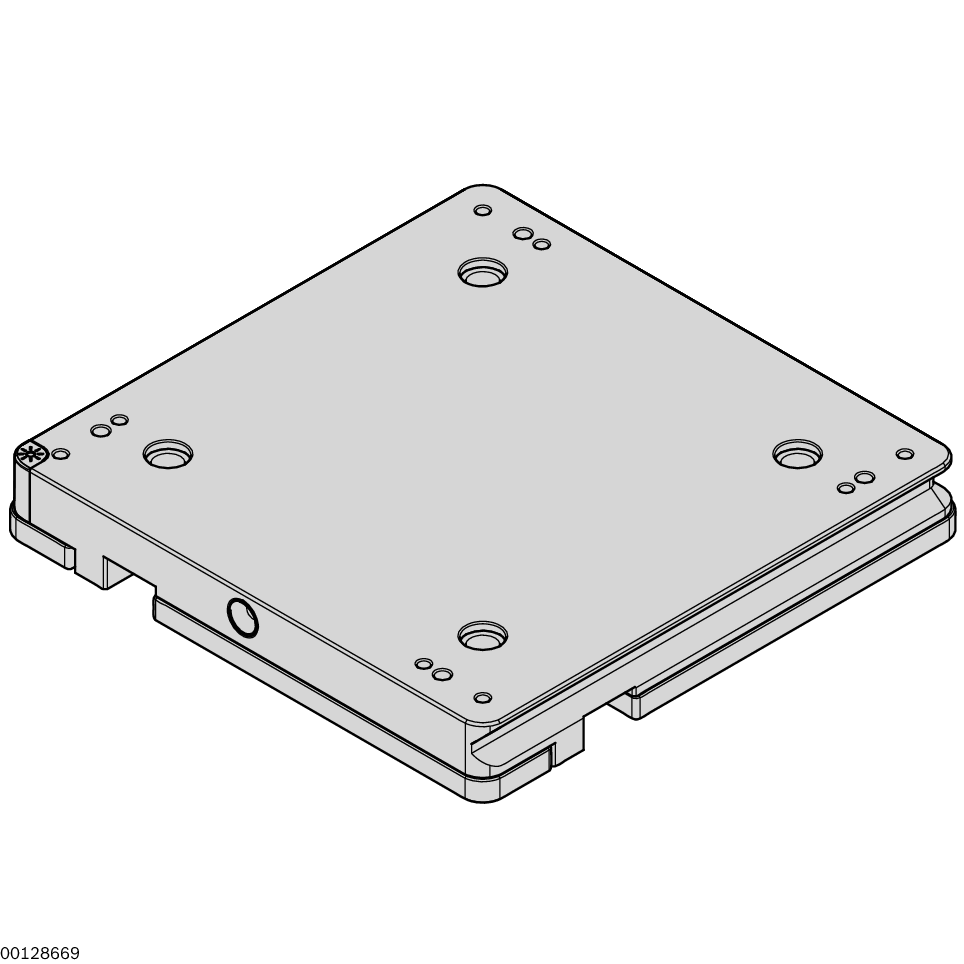

Replaceable outer soles, 3 standard sizes, Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200, Positioning bushings for use with the lift positioning unit HP 1/P, Aluminum all metal construction, D
Optional accessories:
Switching element Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT, see RFID systems catalogRFID systems
RFID systems
Switching element
Switching element
CAD data
Scope of delivery:
Workpiece pallet, complete
Condition on delivery:
Assembled
Workpiece Pallet WT 1/P
|
No. |
Width of workpiece pallet |
Length of workpiece pallet |
Flatness |
Masse Werkstückträger 1) |
Dimension |
Dimension |
Dimension |
Dimension |
Dimension |
|
bWT |
lWT |
▢ |
mWT |
a |
b |
c |
d |
e |
|
|
mm |
mm |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
|
| 3842530443 | 80 | 80 | 0.03 | 0.205 | 80 | 52 | 38 | 19 | 51 + 0,5 |
| 3842530444 | 120 | 120 | 0.03 | 0.44 | 120 | 92 | 78 | 39 | 91 + 0,5 |
| 3842530445 | 160 | 160 | 0.05 | 0.76 | 160 | 132 | 118 | 59 | 131 + 0,5 |
| 1) | Workpiece pallet mass |
The WT 1/P is a workpiece pallet in aluminum all-metal construction with high rigidity.
The WT 1/P is suited for maximum precision requirements in conjunction with the positioning unit PE 1/P and the lift positioning unit HP 1/P.
|
No. |
3842530443 | 3842530444 | 3842530445 | ||
|
ESD |
yes | yes | yes | ||
|
Cleanroom class |
ISO class 7 | ISO class 7 | ISO class 7 | ||
|
Dry room |
r.F. |
% |
<1 | <1 | <1 |
|
Material entry |
Workpiece pallet: Aluminum, chem. nickel-plated Wear pad: Polyamide (PA 66) |
Workpiece pallet: Aluminum, chem. nickel-plated Wear pad: Polyamide (PA 66) |
Workpiece pallet: Aluminum, chem. nickel-plated Wear pad: Polyamide (PA 66) |
||
|
Length of workpiece pallet |
mm |
80 | 120 | 160 |
|
bWT |
lWT |
mWT 1) |
FGL 2) |
▢ |
|
|
mm |
mm |
kg |
kg |
mm |
|
| Workpiece pallet WT 1/P 80x80 | 80 | 80 | 0.205 | 1.5 | 0.03 |
| Workpiece pallet WT 1/P 120x120 | 120 | 120 | 0.44 | 2.2 | |
| Workpiece pallet WT 1/P 160x160 | 160 | 160 | 0.76 | 3 | 0.05 |
| 1) | Workpiece pallet mass |
| 2) | Permissible workpiece pallet weight |
