Attributes

Condition on delivery	Packaging unit in standard length
Productgroup ID	2
Packaging unit	16+64
ESD	yes
Operating temperature [T] max	+40 °C
Length [L]	6000mm
Material	PA
Weight	40kg
Scope of delivery	64 x slide profile GP 2 (L = 6000 mm),16x FP 2 guide profile (L = 6000 mm)
Material information	Guide profile: Plastic, PA (suitable for use in an EPA),Glide profile: Plastic, PA (suitable for use in an EPA)

• For conveyor unit self-assembly
• For use in conjunction with ST 2/C-… section profiles, AS 2/C-… drive modules and UM 2/C-… return units
• FP 2 guide profile for laterally guiding the workpiece pallet; slides onto the SP 2/C-100 section profile
• GP 2 glide profile for guiding the top flat chain; slides onto the SP 2/C-100 section profile

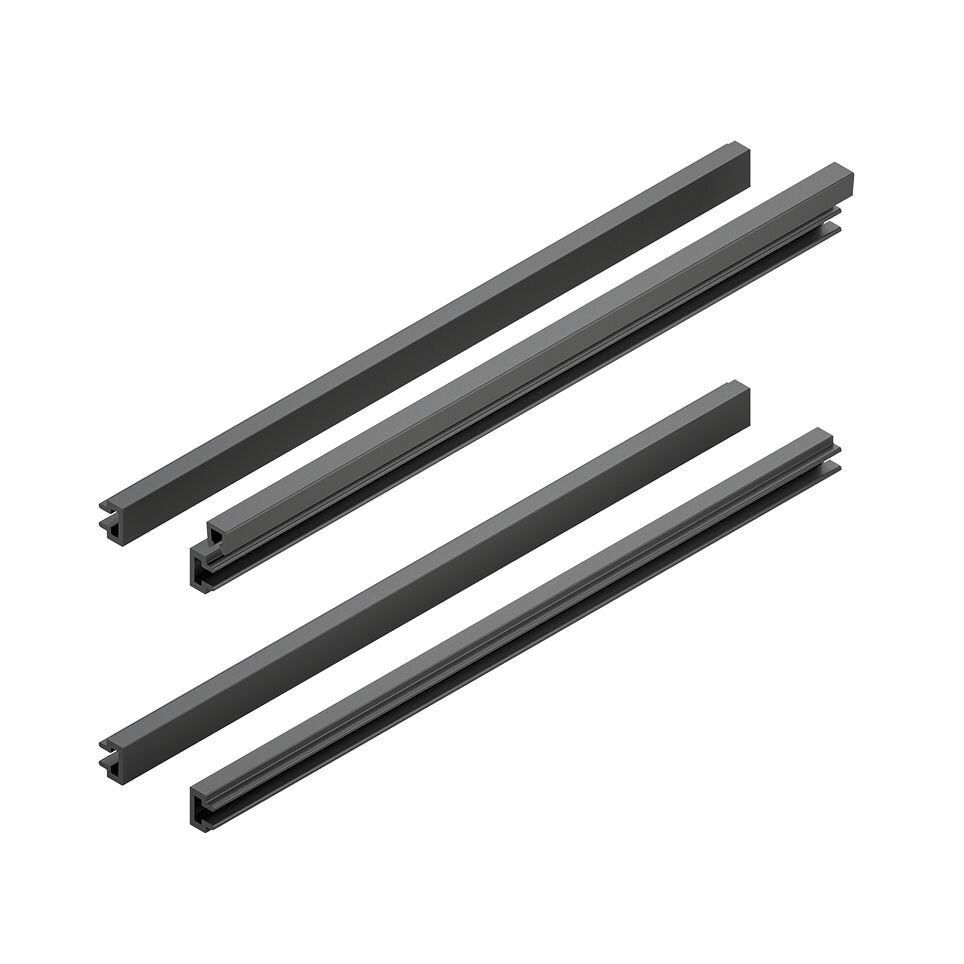

PA guide and slide profile
For conveyor unit self assembly, For use in conjunction with ST 2/C … section profiles, AS 2/C … drive modules and UM 2/C … return units, FP 2 guide profile for laterally guiding the workpiece pallet; slides onto the SP 2/C 100 section profile, GP 2 glide

• 3D CAD
• Data Sheet

The guide profile is used for lateral guidance of the workpiece pallet. The glide profile is used to guide the accumulation roller chain. Both profiles are pushed onto the section profile. Additional blocking bolts prevent the glide profiles from moving in a longitudinal direction.

No.			3842529933
ESD			yes
Max. operating temperature	T	°C	+40
Material entry			Guide profile: plastic, PA (suitable for use in an EPA) Glide profile: plastic, PA (suitable for use in an EPA)
Length	l	mm	6,000
