STRUT PROFILE 40X40L 2NVS L=6170
| Open slots | 2 |
| Condition on delivery | Single rod in standard length |
| Profile surface [A] | 6cm² |
| Productgroup ID | 2 |
| Packaging unit | 1 |
| Moment of resistance in the y-direction [Wy] | 4.9cm³ |
| Area moment of inertia in y-direction [ly] | 9.7cm⁴ |

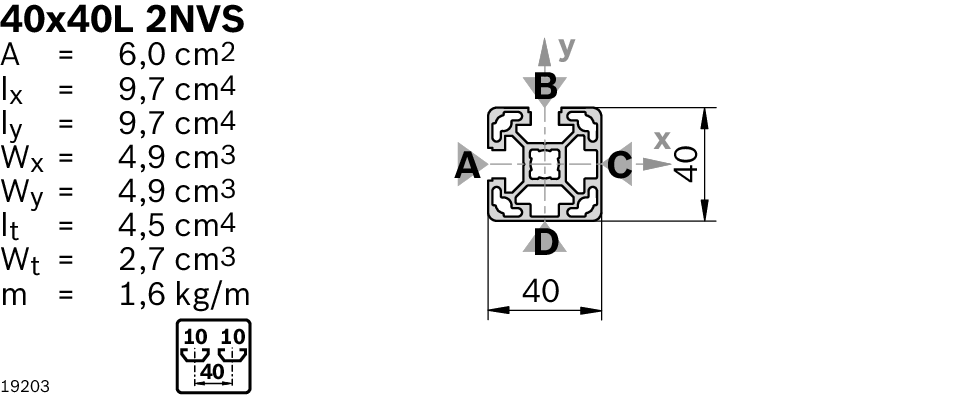

| Cross-section | 40x40L 2NVS |
| Torsional moment of inertia [It] | 4.5cm⁴ |
| Moment of resistance in the x-direction [Wx] | 4.9cm³ |
| Mass [m] | 1.6kg |
| ESD | yes |
| Length [L] | 6070mm |
| Area moment of inertia in x-direction [lx] | 9.7cm⁴ |
| Dimensions | 40x40 |
| Modular dimension | 40mm |
| Moment of torsion resistance [Wt] | 2.7cm³ |
| Material | Aluminum, anodized |
| Weight | 9.934kg |
| Recommended accessories | Cover cap 40x40, signal gray,Cover cap 40x40, black,Cover cap with hole 40x40, signal gray,Cover cap with hole 40x40, black |
| Color | Natural |
| Profile type | 2NVS |
| Profile slot | 10 |
Strut profile 40x40L 2NVS
