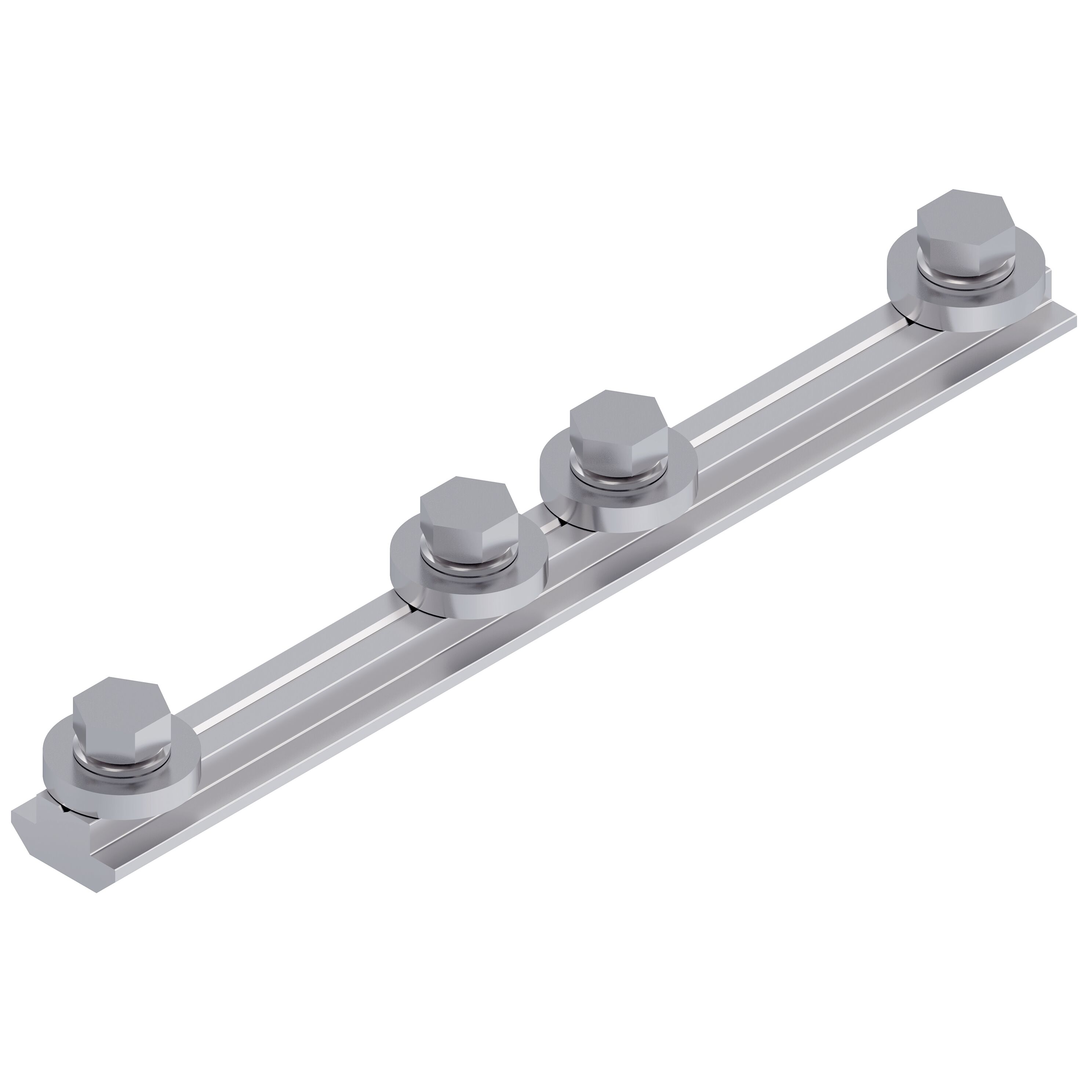

CONNECTION LINK PV10/40 L=180-M8
| Productgroup ID | 2 |
| Packaging unit | 1 |
| Tightening torque | 25Nm |
| Material | Steel, galvanized |
| Weight | 0.254kg |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized |
| Fastening material | 4x hexagon screw ISO4017 M8x14,4x lock washer S8 |
| Profile slot | 10 |
- Profile connector for the end-face connection of any profiles
- For an especially strong connection: one profile connector per slot
- Profile finishing: not required
Profile connector 180 slot 10
Profile finishing: not required, Profile connector for the end face connection of any profiles, For an especially strong connection: one profile connector per slot
Profile finishing: not required, Profile connector for the end face connection of any profiles, For an especially strong connection: one profile connector per slot
|
FS1 |
FS2 |
FS3 |
FS4 |
FS5 |
|
|
|
|
|
Scope of delivery
| Profile connector 50 VF | Incl. fastening material |
| Profile connector 50 | incl. fastening material (FS) |
| Profile connector 180, N8 | |
| Profile connector 180, N10 |
Profile connector 50, 50VF
Profile connector 180, N8
Profile connector 180, N10
|
Material |
Tightening torque |
|
| Profile connector 50 VF |
Steel; galvanized Fastening material: steel; galvanized |
10 Nm |
| Profile connector 50 | 8.5 Nm | |
| Profile connector 180, N8 | 10 Nm | |
| Profile connector 180, N10 | 25 Nm |
