Attributes

Productgroup ID	2
Admissible WT contact area weight [FGL]	2.2kg
Dimension [d]	39mm
Dimension [a]	120mm
Dry room	<1
ESD	yes
Dimension [c]	78mm
Flatness	0.5mm
Weight workpiece pallet [mWT]	0.43kg
Weight	0.443kg
Scope of delivery	Workpiece pallet, complete
Delivery information	Fully assembled
Recommended accessories	Damping Elements,Switching element,Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT
Workpiece pallet width [bWT]	120
Material information	Frame, wear pad: Polyamide (PA 66),Carrying plate: Steel, coated with cataphoretic primer
Workpiece pallet length [lWT]	120

• 3 standard sizes
• Frame made from polyamide, carrying plate made from steel
• Double-sided prism slot for positioning in the positioning unit PE 1/P
• Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200
• Replaceable outer soles

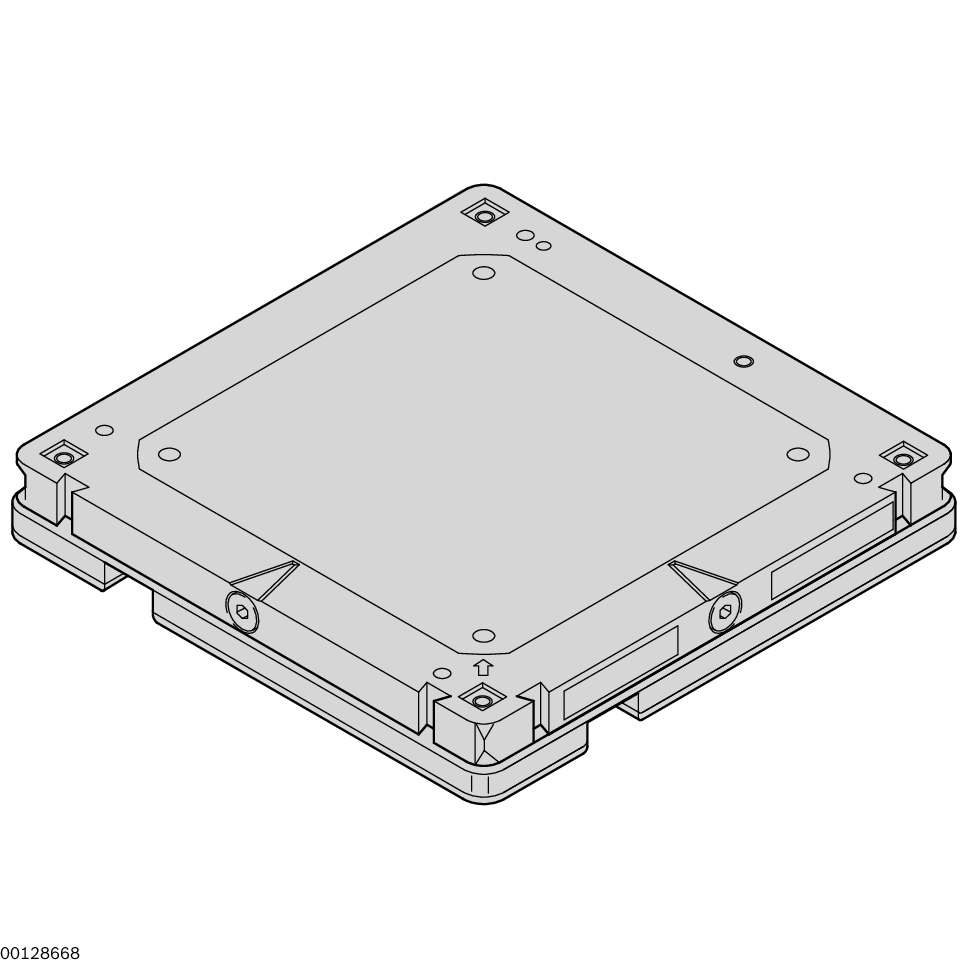

Workpiece pallet WT 1/S 120x120
Replaceable outer soles, 3 standard sizes, Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200, Frame made from polyamide, carrying plate made from steel, Double sided prism slot for positioning in

• 3D CAD
• Data Sheet

Optional accessories:

Damping element Switching element Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT, see RFID systems catalog

RFID systems

RFID systems

Damping Elements

Damping Elements

CAD data

Switching element

Switching element

CAD data

Scope of delivery:

Workpiece pallet, complete

Condition on delivery:

Assembled

Workpiece Pallet WT 1/S

No.	Width of workpiece pallet	Length of workpiece pallet	Flatness	Masse Werkstückträger 1)	Dimension	Dimension	Dimension	Dimension
	bWT	lWT	▢	mWT	a	b	c	d
	mm	mm	mm	kg	mm	mm	mm	mm
3842526849	80	80	0.5	0.165	80	52	38	19
3842526850	120	120	0.5	0.43	120	92	78	39
3842526851	160	160	0.5	0.83	160	132	118	59

1)	Workpiece pallet mass

Workpiece pallet underside WT 1/K, WT 1/S

The WT 1/S is a workpiece pallet in mixed plastic/steel design with high rigidity. This means it is possible to add cutouts in the steel plate.

The WT 1/S is also suitable for transporting and processing lightweight parts. The positioning unit PE 1/P is used for positioning. Use with the lift positioning unit HP 1/P is not possible.

No.			3842526849	3842526850	3842526851
ESD			yes	yes	yes
Cleanroom class			ISO class 7	ISO class 7	ISO class 7
Dry room	r.F.	%	<1	<1	<1
Material entry			Frame, wear pad: Polyamide (PA 66) Carrying plate: Steel, coated with cataphoretic primer	Frame, wear pad: Polyamide (PA 66) Carrying plate: Steel, coated with cataphoretic primer	Frame, wear pad: Polyamide (PA 66) Carrying plate: Steel, coated with cataphoretic primer
Length of workpiece pallet		mm	80	120	160

	bWT	lWT	mWT 1)	FGL 2)	▢
	mm	mm	kg	kg	mm
Workpiece pallet WT 1/S 80x80	80	80	0.165	1.5	0.5
Workpiece pallet WT 1/S 120x120	120	120	0.43	2.2
Workpiece pallet WT 1/S 160x160	160	160	0.83	3

1)	Workpiece pallet mass
2)	Permissible workpiece pallet weight
