END CONNECTOR 30
| Bending moment 1 | 81Nm |
| Productgroup ID | 2 |
| ESD | yes |
| Dimensions | 30x30 |
| Material | Diecast aluminum |
| Weight | 0.104kg |
| Scope of delivery | Set incl. fastening material (FS) |
| Material information | End connector: Diecast aluminum,Fastening material: Steel, galvanized |
| Fastening material | 2x cylinder head screw DIN7984 M8x30,4x cylinder head screw DIN7984 M5x25,4x hexagon nut DIN934 M5 |
| Profile slot | 8 |
- For end-to-end profile connections
- Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
- Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design - Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
- Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required - Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required

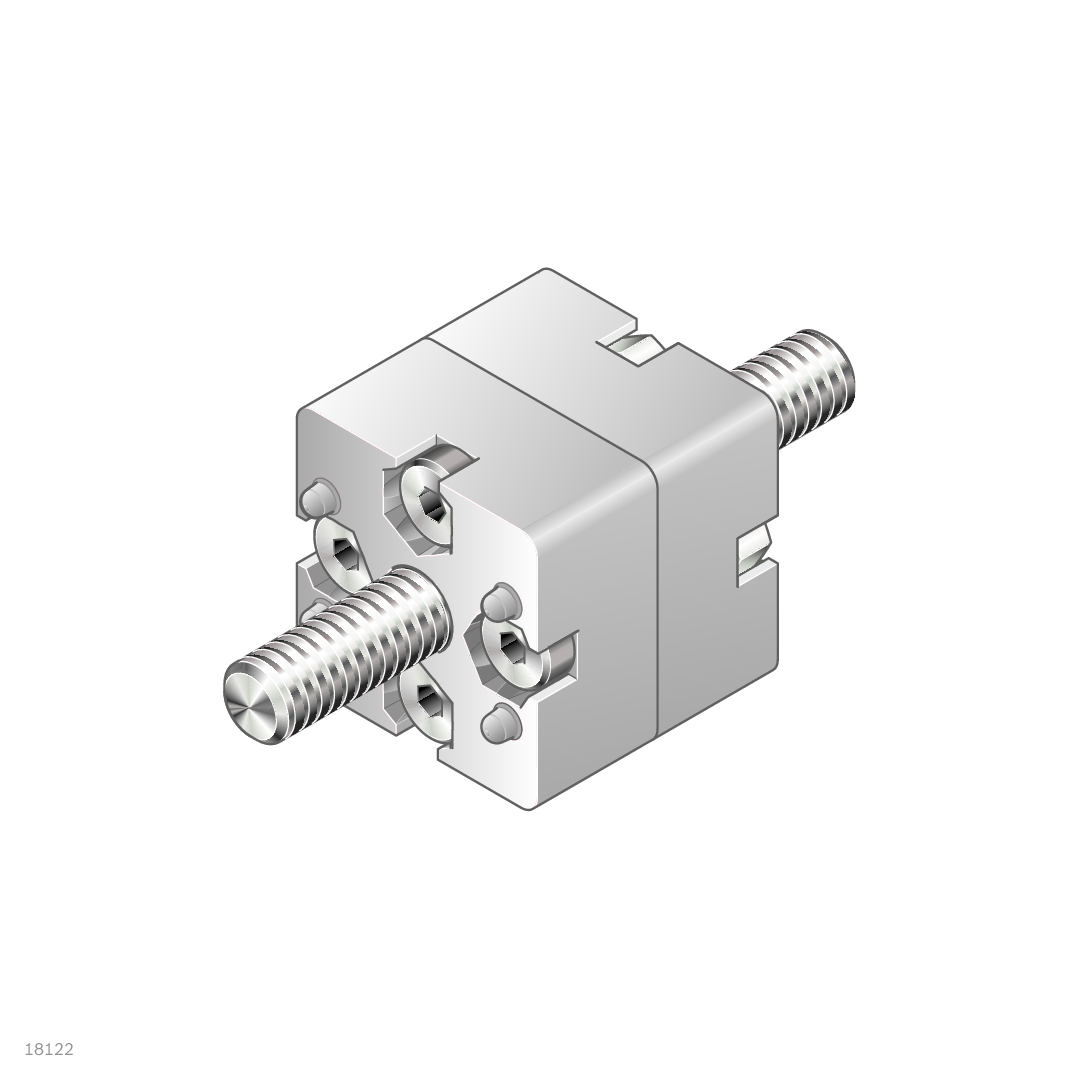

End connector 30x30 set (standard)
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, For end to end profile connections, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required
Version designLINE with special silver paint (RAL 9006) for an especially high quality design, For end to end profile connections, Profile finishes:
30x30: M8 thread cutting in core
40x40, 45x45, 50x50: not required
|
FS1 |
FS2 |
|
|
End connector 30x30
|
Typ |
|
|
30x30 |
81 Nm |
|
40x40 |
170 Nm |
|
45x45 |
200 Nm |
|
50x50 |
180 Nm |
