For-subsequent-installation-in-closed-frame-constructions,-Suitable-for-use-under-clean-room-conditions,-For-surface-elements-with-a-thickness-of-2–8-mm,-Installation-of-surface-elements-flush-with-the-profile-edge,-The-protective-pane-profile-consists-of / Material Number:3842524028

n.a.

Material #3842524028

Request Quote

Attributes

Condition on delivery Single rod in standard length
Productgroup ID 2
Packaging unit 10
Dimension [smin] 2mm
Length [L] 2000mm
Dimension [smax] 8mm
Modular dimension 45mm
Color Light gray (RAL 7035)
Profile slot 10
  • For the play-free mounting of surface elements
  • For surface elements with a thickness of 2–8 mm
  • For subsequent installation in closed frame constructions
  • Installation of surface elements flush with the profile edge

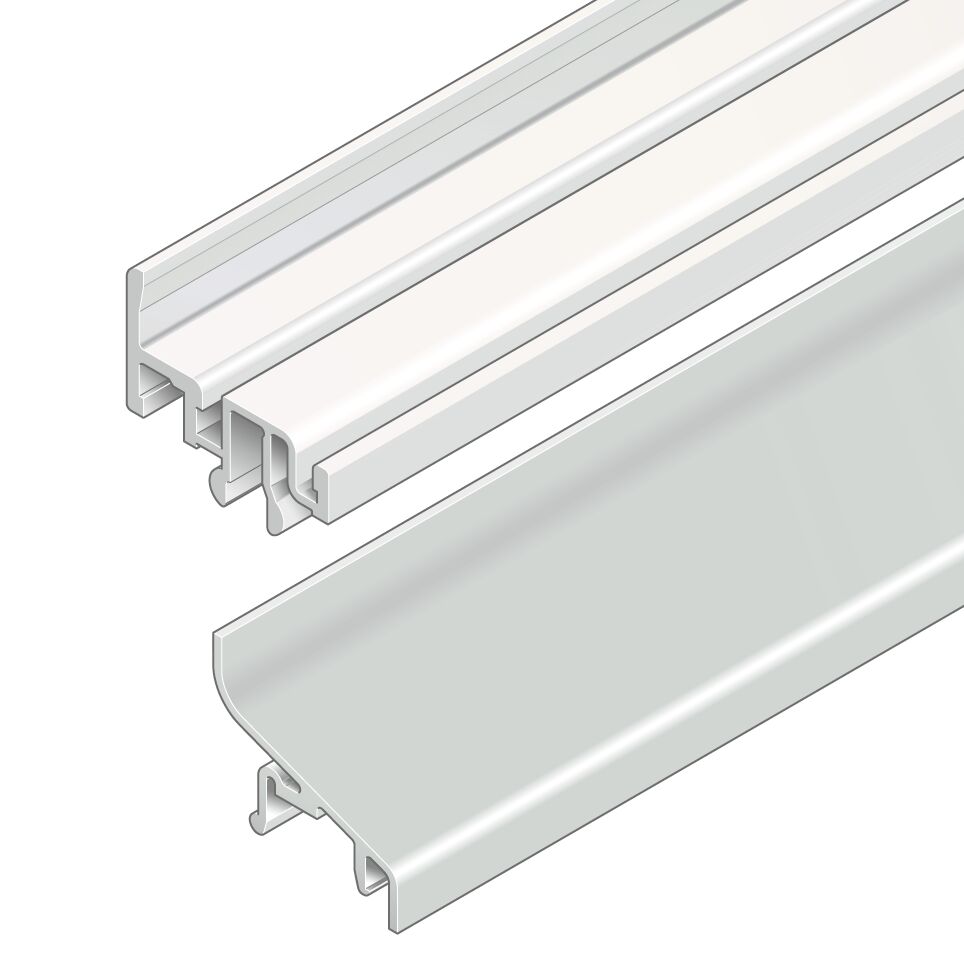

  • The protective pane profile consists of the basic profile and the clip-on strip. Both profiles are required to ensure proper functioning.
  • Suitable for use under clean room conditions
  • Tested for emission of volatile organic substances at room temperature, 50 °C and 120 °C, Report No. BO 9903-161
Protective pane profile, clean room, R45 clip-on strip
For subsequent installation in closed frame constructions, Suitable for use under clean room conditions, For surface elements with a thickness of 2–8 mm, Installation of surface elements flush with the profile edge, The protective pane profile consists of

Protective pane profile, clean room, N8

Protective pane profile, clean room, N8

Protective pane profile, clean room, N10 modular dimensions 40

Protective pane profile, clean room, N10 modular dimensions 40

Protective pane profile, clean room, N10 modular dimensions 45

Protective pane profile, clean room, N10 modular dimensions 45
