CONVEYOR LEG SET SZ 1
| Track width in direction of transport [b max] | 720mm |
| Leg set height [hSZ min] | 200mm |
| Track width in direction of transport [b min] | 80mm |
| Leg set height [hSZ max] | 1200mm |
| Productgroup ID | 2 |
| Dry room | <1 |
| ESD | yes |
| Support width | 175mm |
| Support width [BSZ max] | 1630mm |
| Weight | 0kg |
| Notice | Multi-track section: B = 2x (b + 15) + a |
| Scope of delivery | Including height-adjustable bases,Incl. fastening material for installation of the conveyor section or belt section on the leg set |
| Delivery information | Not assembled |
| Recommended accessories | Cover Caps for Bracket |
| Required accessories | Foundation bracket,Floor dowel |
| Installation location [AO] | 62,5 |
| Preferred values | 80,120,160 |
| Transportation height [H] | 295 ... 2000 |

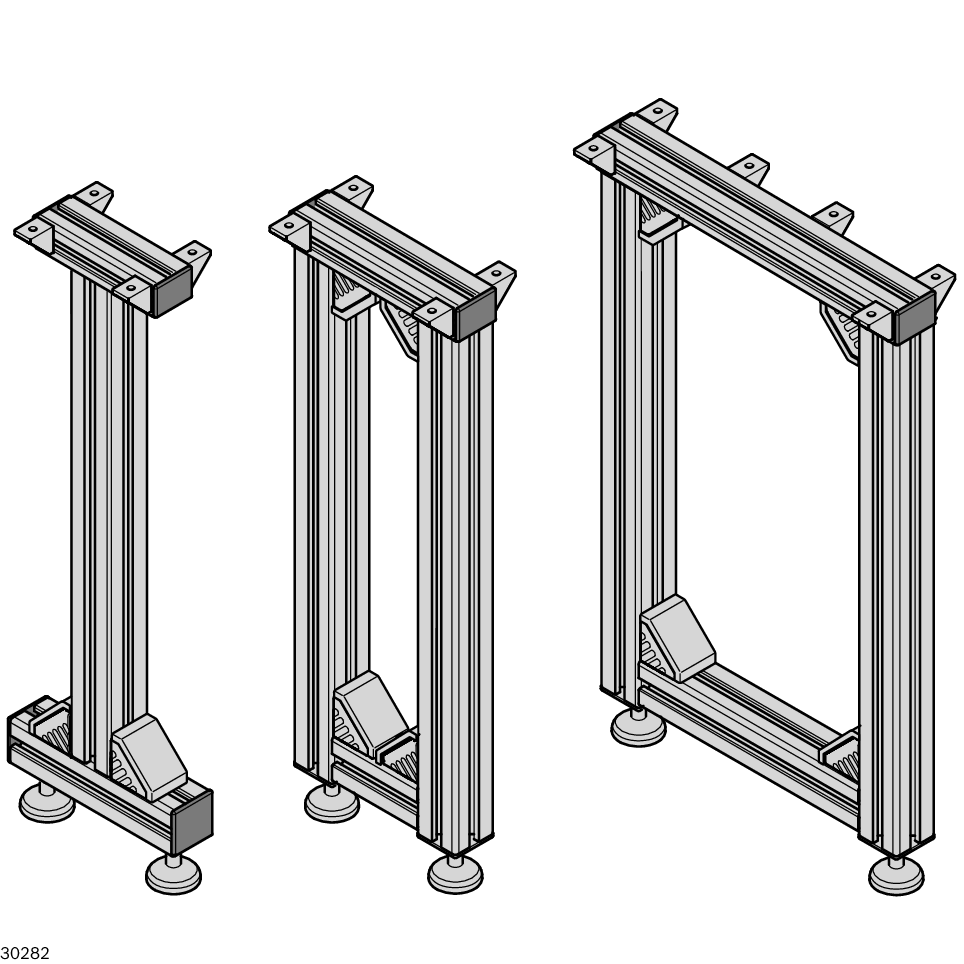

- Extruded aluminum profile
- Height-adjustable bases
- Suitable for conveyor sections and belt sections
Extruded aluminum profile, Height adjustable bases, Suitable for conveyor sections and belt sections
Leg sets SZ 1/L, SZ 1
New leg set height H
The new parameter H defines the height of the leg sets measured from the floor to the top edge of the conveyor medium (= conveying level).
In addition, the height of the section profile is specified as an additional order parameter (AO).
The height of the leg set to the lower edge of the section profile (= hSZ) is calculated as follows: hSZ = H - AO.
Leg sets support the conveyor section. They have to be mounted directly next to the drive, return units and underneath section joints. Conveyor units are to be supported with leg sets in equal distances of max. 2000 mm. The leg sets must be anchored to the floor with foundation brackets.
|
No. |
3842996335 | 3842996336 | ||
|
ESD |
yes | yes | ||
|
Cleanroom class |
ISO class 7 | ISO class 7 | ||
|
Dry room |
r.F. |
% |
<1 | <1 |
