3842545539

ASSEMBLY KIT ID200/OC

Material #3842545539

Attributes

Productgroup ID	2
Weight	0.63kg
Scope of delivery	incl. fastening material for assembly and a 45x90 bracket for reinforcement as needed.
Delivery information	Not assembled
Required accessories	Communication Module ID 200/C-...,Antenna ID 200/A-...,Mobile data tag 3/2K-H,Cable
Preferred values	455,650,845
Profile slot	10

Notice: Identification system ID 200 in transverse conveyor on request
Mounting location: on the section profile
Fastening of the write/read head ID 200/-... in the longitudinal conveyor
Centering lugs for pre-positioning and fast assembly
Notice: Identification system ID 200 in transverse conveyor on request - Notice: Identification system ID 200 in transverse conveyor on request

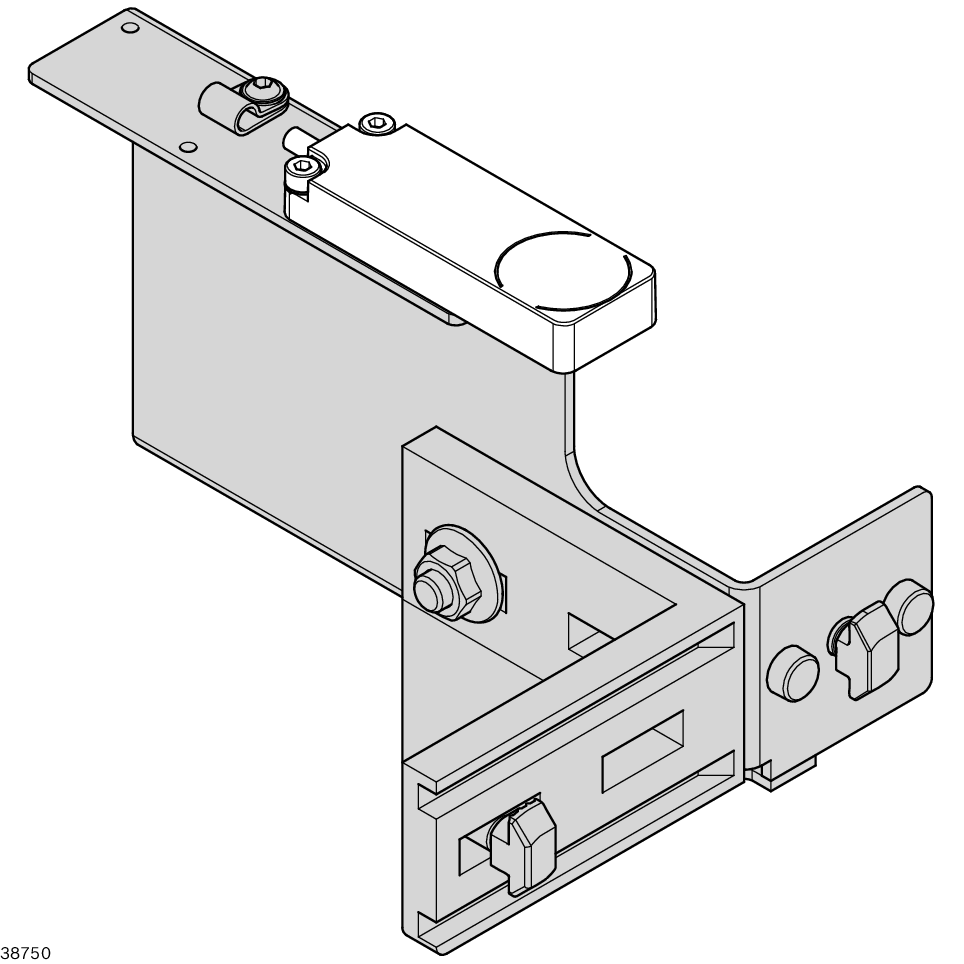

Mounting kit for ID 200 longitudinal conveyor
Centering lugs for pre positioning and fast assembly, Mounting location: on the section profile, Notice: Identification system ID 200 in transverse conveyor on request, Fastening of the write/read head ID 200/ ... in the longitudinal conveyor

Antenna ID 200/A-...

Antenna ID 200/A-...F (Flat Antenna) Antenna ID 200/A-...R (Round Antenna)

CAD data

Read/write head ID 40/SLK

Direct connection to the PROFIBUS DP fieldbus system via M12 plug-in connection.

Assembly instructions

CAD data

Condition of Delivery

Mounting kit for ID 40/SLK OC/B455	Not assembled
Mounting kit for ID 40/SLK OC/B650; 845
Mounting kit for ID 200 longitudinal conveyor

Scope of delivery

Mounting kit for ID 40/SLK OC/B455	Incl. fastening material for assembly
Mounting kit for ID 40/SLK OC/B650; 845	incl. fastening material for assembly and a 45x90 bracket for reinforcement as needed.
Mounting kit for ID 200 longitudinal conveyor

Note:

The ID 40 and ID 200…-LF sensor and identification systems use the same frequency range. Maintain a minimum distance of 200 mm to prevent cross interference.
