Attributes

Code	WH075S
Productgroup ID	3
Reduction ratio	1.56
Typical efficiency	0.95
Order number	3608876061
Maximum torque	75Nm
Tool mount	1/2" square
Weight	0.65kg

• You can mount different angle heads on the ErgoSpin VarioLine. This makes your ErgoSpin handheld nutrunner suitable for a variety of applications. With an angle head for special output drives, you can e.g. mount a crowfoot wrench to the VarioLine.
• Maximum torque values refer to angle head

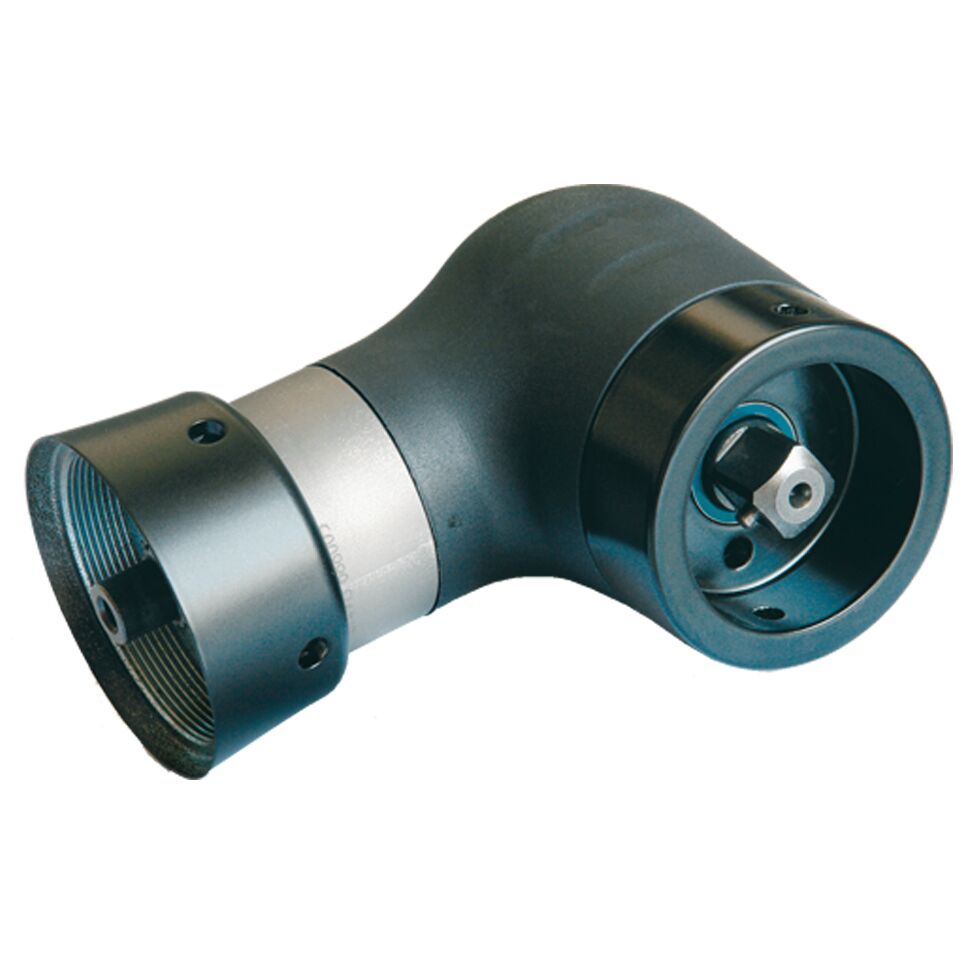

ANGLE HEAD WH075S E 1/2"SQ

You can mount different angle heads on the ErgoSpin VarioLine. This makes your ErgoSpin handheld nutrunner suitable for a variety of applications. With an angle head for special output drives, you can e.g. mount a crowfoot wrench to the VarioLine., Maximu

• 3D CAD
• Data Sheet

Suitable for	Tool mount	Maximum torque	Reduction ratio	Typ. efficiency	Code	Order no.
ErgoSpin ESV005 / ESV012	1/4" square	13 Nm	1.1	0.95	WH013S	3608876051
ErgoSpin ESV005/ESV012					WH013G*	3608876052
ErgoSpin ESV025	3/8" square	40 Nm	1.73		WH040S	3608876055
					WH040G*	3608876056
ErgoSpin ESV050		56 Nm	1.16		WH056S	3608876057
					WH056G*	3608876058
	1/2" square	65 Nm	1.35		WH065S	3608876059
					WH065G*	3608876060
		75 Nm	1.56		WH075S	3608876061
					WH075G*	3608876062
ErgoSpin ESV073		100 Nm	1.42		WH100S	3608876063
ErgoSpin ESV146		150 Nm	1.1		WH150S	3608876064
	3/4" square with centering pins	220 Nm	1.59		WH220S	3608876065

* Plastic-covered angle head as a second grip
